24kV Side Mounted Vacuum Circuit Breaker

I24kV Side Mounted Vacuum Circuit Breaker(Imodeli: ZN63A (VS1)-24) iyisihlukanisi sesekethe se-medium-voltage sasendlini esisebenza kahle kakhulu esiklanyelwe amasistimu wamandla we-AC 50Hz wezigaba ezintathu anevolthi elinganiselwe engu-24kV. Ihlanganisa indlela yokusebenza kanye nesiphazamisi se-vacuum ibe isakhiwo esihlangene, ihlinzeka ngokuvikeleka okuthembekile, ukushintsha, nokulawula iziteshi ezincane, izimboni zikagesi, izinsiza zezimboni, nezinhlelo zokusabalalisa amandla. I-breaker iyatholakala kuzo zombili izinguqulo ezifakwe ngokuqinile nezikhiphekayo ukuze kuhlangatshezwane nokulungiselelwa okuhlukahlukene kwe-switchgear.

Ifaka ubuchwepheshe obuthuthukisiwe bokuphazamiseka kwe-vacuum, ukukhuthazela okuphezulu kwemishini, kanye nezidingo zokunakekelwa okuphansi, lesi sihlukanisi sesekhethi silungele izinhlelo zokusebenza ezibandakanya ukusebenza kokushintsha njalo. Isetshenziswa kakhulu kwezensimbi, ezimayini, ezimbonini zamakhemikhali, ezimbonini zamalahle, iziteshi ezisetshenziswayo, kanye namaphrojekthi wamandla avuselelekayo lapho ukusatshalaliswa kwamandla aphephile futhi athembekile kubalulekile.

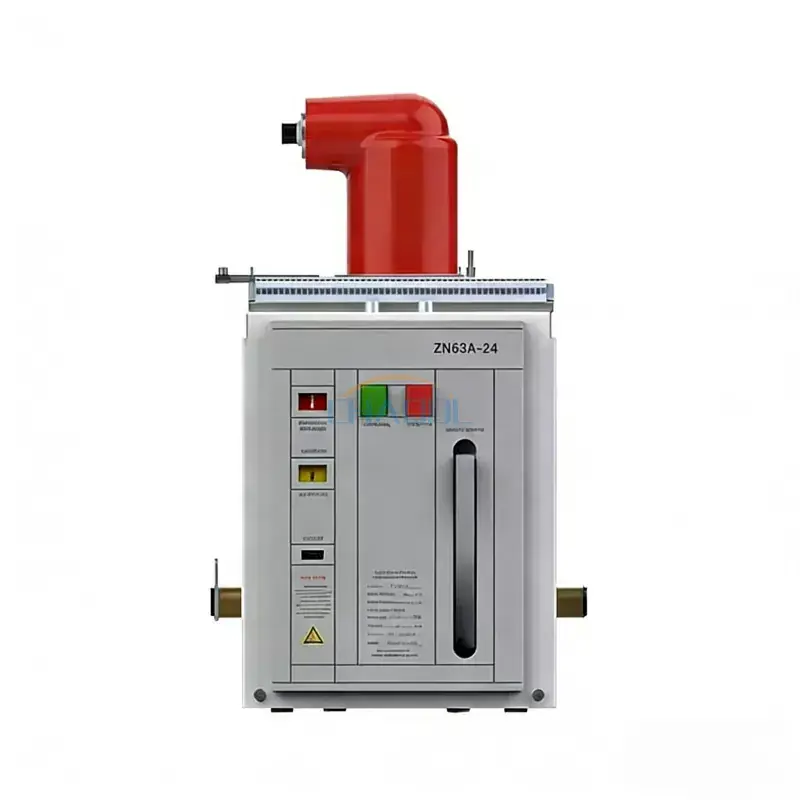

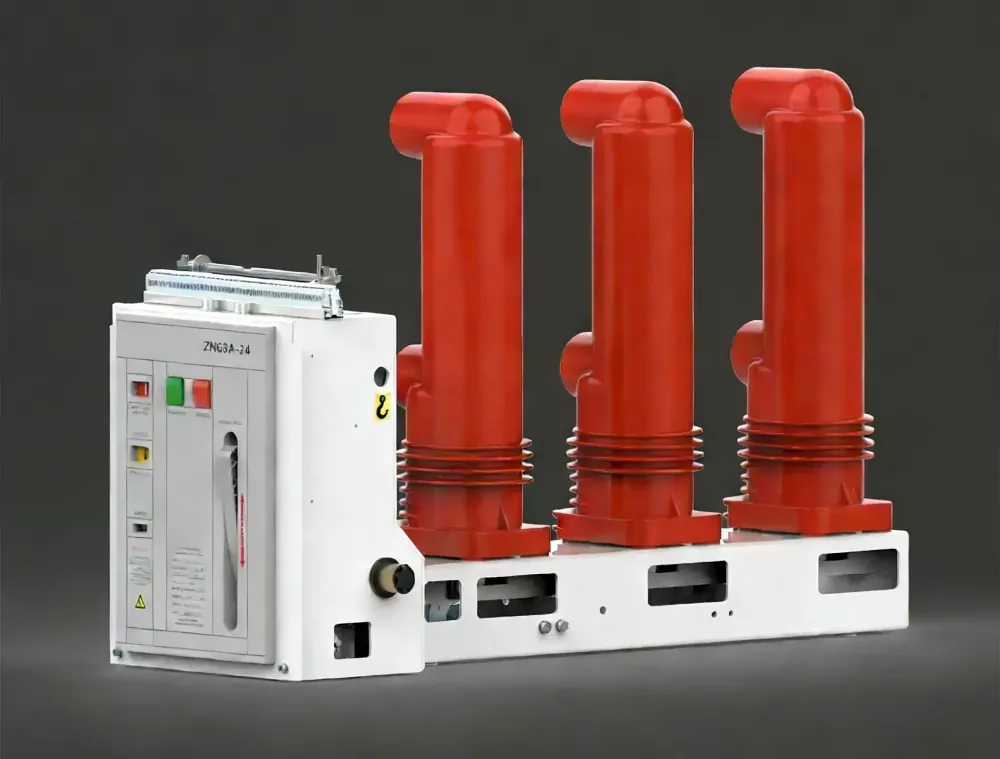

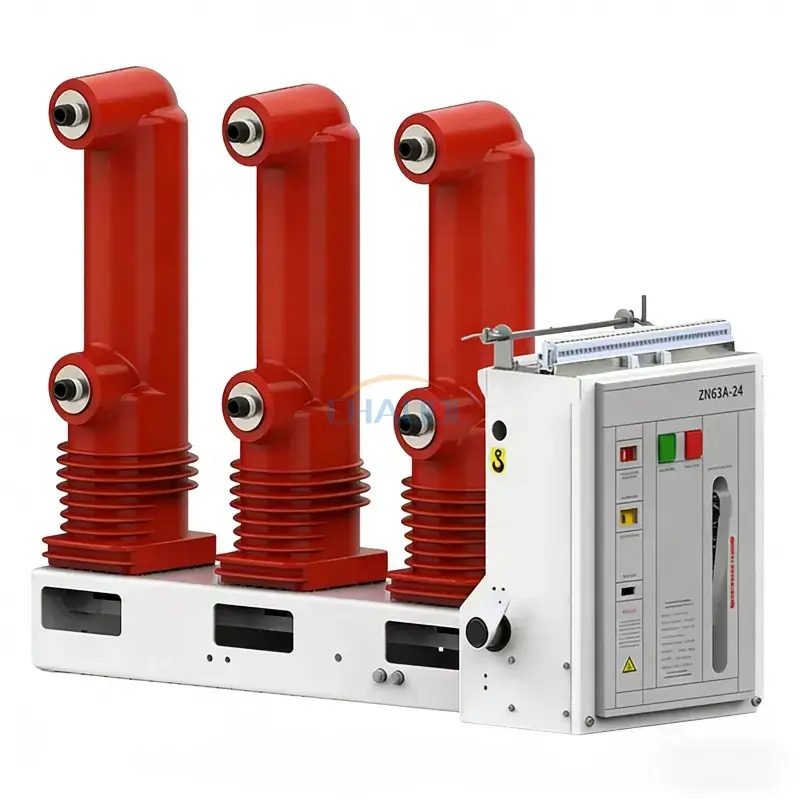

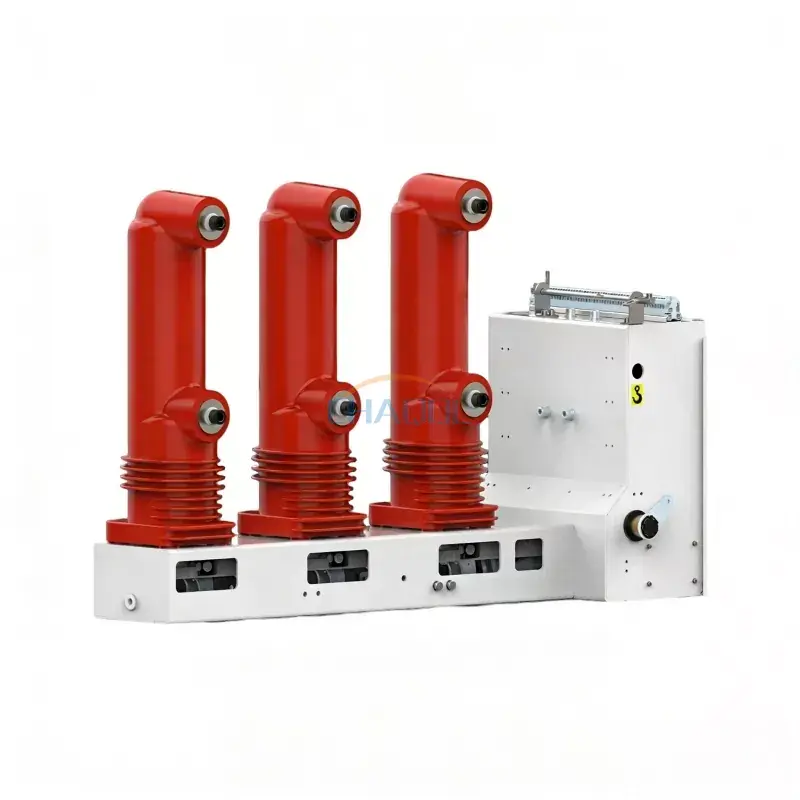

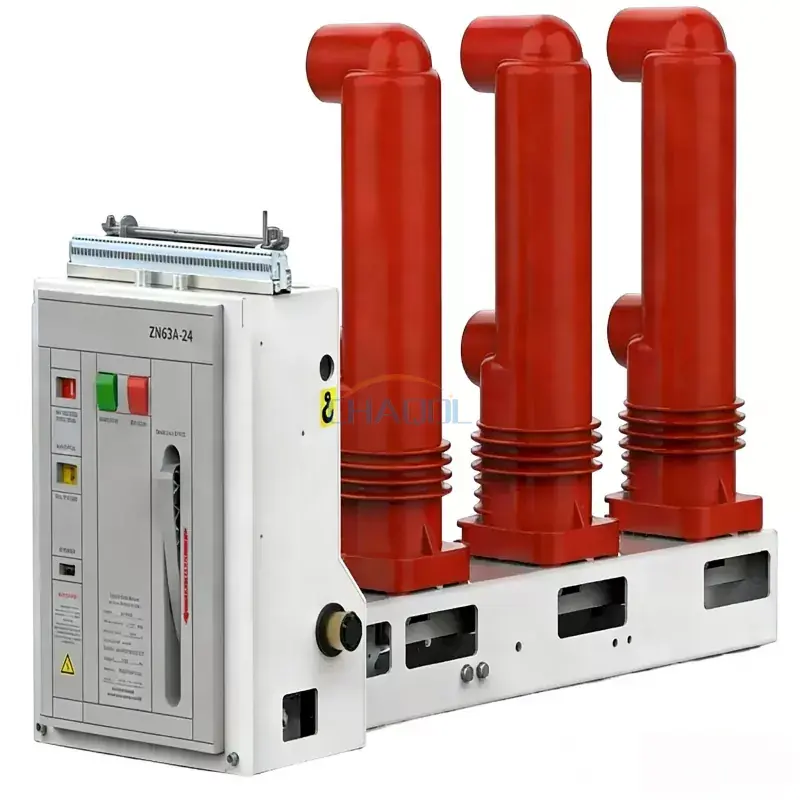

Ukubukeka Komkhiqizo

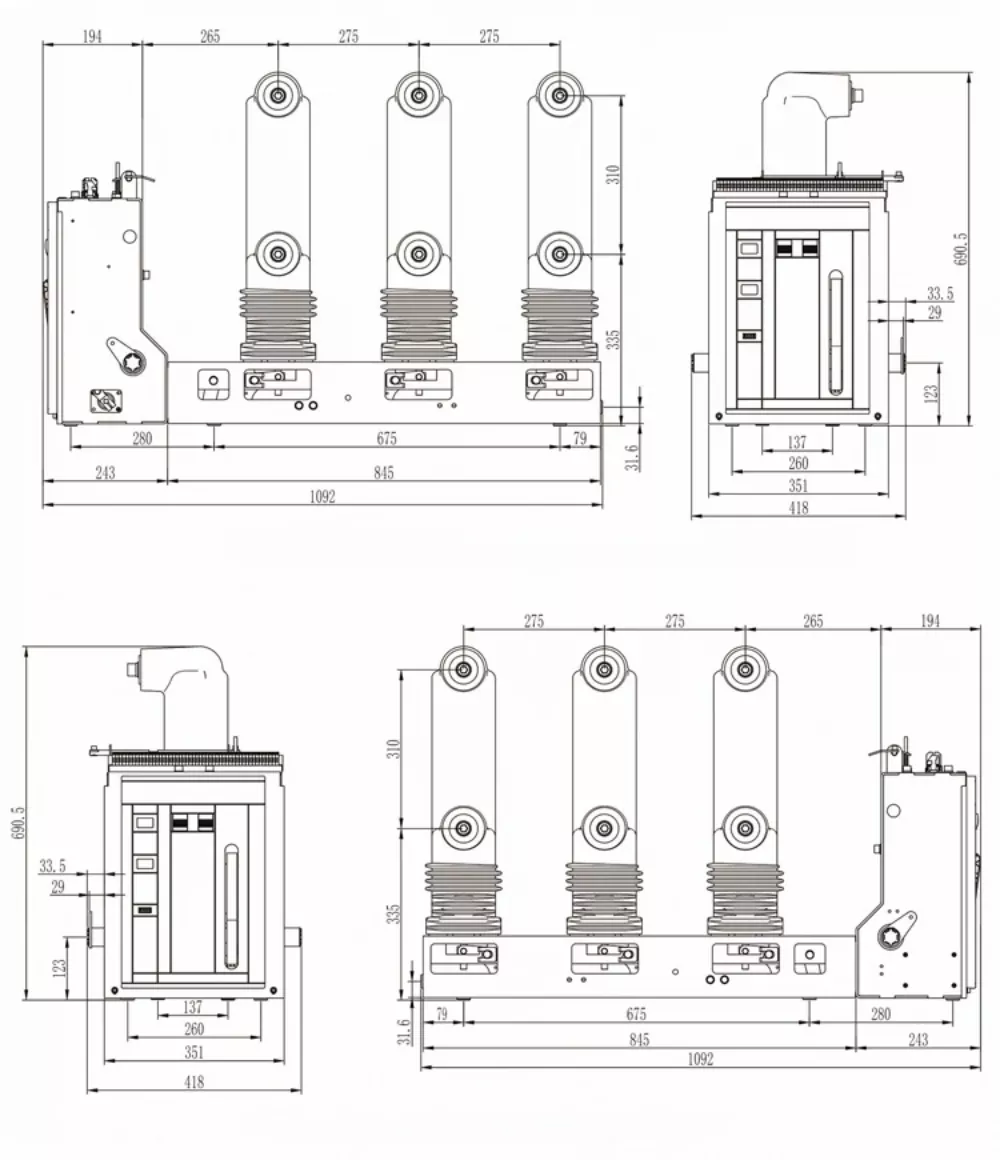

I-Dimensions Diagram

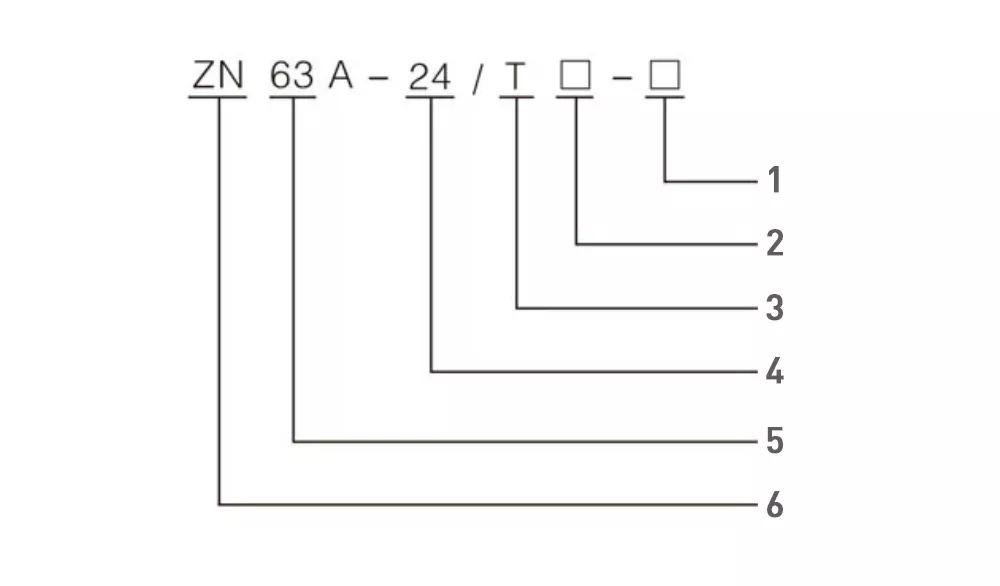

Ukuhlonza Imodeli

• 1 – Ikalelwe Ukuphuka Kwesekethe Efushane (kA)
• 2 – Ikalwe okwamanje (A)
• I-3 - Indlela Yokusebenza
• 4 – Isilinganiso samandla kagesi (kV)
• 5 – Design Series
• 6 - I-Indoor Vacuum Circuit Breaker

Izici Zomkhiqizo

• Indlela yokusebenza efakwe emaceleni edidiyelwe enomklamo ohlangene kanye nokudlulisa okuthembekile.
• Isiphazamisi se-vacuum esisebenza kahle kakhulu esithintana ne-copper-chromium siqinisekisa amandla amahle kakhulu okucisha i-arc nempilo kagesi eyandisiwe.
• Indlela yokusebenza yasentwasahlobo ehlelwe ngokuvundlile isekela ukushaja okwenziwa ngesandla kanye nemoto.
• I24kV Side Mounted Vacuum Circuit Breakeringafakwa njengohlobo olungaguquki noma uhlobo olukhiphekayo ukuze ivumelane namasistimu e-switchgear ahlukene.
• Amandla aphezulu wokufaka i-dielectric, ukusika okuphansi kwamanje, kanye nokusebenza okuhle kakhulu kokuphazamiseka kwesiyingi esifushane.
• Ukufakwa kwe-epoxy okuqinile kunikeza ukumelana okuvelele kumswakama, emisebeni ye-UV, ukushintsha kwezinga lokushisa, ukuguga, kanye nokungcola.
• Impilo yobumishini ifinyelela ekusebenzeni okungu-10,000, okuyenza ifaneleke ukushintshwa njalo kwezinhlelo zokusebenza.
• Isekela ukudluliselwa kokuvikela okuhlakaniphile kanye nezinhlelo ezishintshayo zesiteshi esincane.

Imingcele Yezobuchwepheshe

Idizayini Yesakhiwo

I-circuit breaker ithatha isakhiwo sezigxobo esinezigaba ezintathu esifakwe i-ceramic evalwe maphakathi noma isiphazamisi se-vacuum yengilazi. Oxhumana nabo be-Copper-chromium kanye nobuchwepheshe bendawo kazibuthe be-longitudinal kunciphisa ngempumelelo ukuguguleka kokuxhumana ngenkathi kuthuthukisa ukubuyiswa kwe-dielectric nokuphazamisa ukusebenza. Indlela yokusebenza yasentwasahlobo edidiyelwe iletha ukusebenza okuzinzile kokuvula nokuvala ngokulungiswa okuncane kuyo yonke impilo yayo yesevisi.

Ngokuya ngezidingo zohlelo lokusebenza, izigxobo zingenziwa kusetshenziswa ukufakwa kwe-epoxy resin yamandla aphezulu noma ukugqunywa kwenjoloba ye-silicone, okuhlinzeka ukumelana okuphakeme kumswakama, ukufingqa, ukuchayeka kwe-UV, kanye nezindawo zezimboni ezinokhahlo.

Izinhlelo zokusebenza

I24kV Side Mounted Vacuum Circuit Breakerisetshenziswa kakhulu ezinhlelweni zokusabalalisa amandla kagesi aphakathi nendawo ezidinga ukuvikelwa okuthembekile, ukusebenza njalo, kanye nempilo ende yesevisi.

• Izitshalo zamandla
• Iziteshi zikagesi
• Izinhlelo zokusabalalisa amandla ezimboni
• Imisebenzi yezimayini
• Izitshalo ze-Metallurgical
• Izikhungo zokucubungula amakhemikhali
• Imboni yamalahle
• Amaphrojekthi wamandla avuselelekayo
• Amanethiwekhi amandla ezentengiselwano nawomasipala
• Iziteshi ezingaphansi ezihlakaniphile namasistimu ezishintshayo

Indawo yokusebenza

• Izinga lokushisa le-ambient: -15°C ukuya +40°C
• Ukuphakama kokufakwa: Kufika ku-1000m (ukuphakama okuphezulu kuyatholakala uma ucela)
• Ubukhulu bokuzamazama komhlaba: 8 degrees
• Umswakamo ohlobene: Isilinganiso sansuku zonke ≤95%, isilinganiso sanyanga zonke ≤90%
• Ifanele izindawo ezingenazo izingozi zomlilo, izingozi zokuqhuma, ukungcoliswa okukhulu, amagesi abolayo, nokudlidliza okukhulu.

Isimiso Sokusebenza

I24kV Side Mounted Vacuum Circuit Breakerisebenzisa isiphazamisi sevacuum esivalekile njengesici sokucisha i-arc. Uma kwenzeka imisinga yephutha, othintana nabo bahlukana ngokushesha, futhi igumbi le-vacuum licisha i-arc kagesi cishe ngaso leso sikhathi, inikeze ukuhlukaniswa kwephutha okusheshayo ngokugqoka okuncane kokuxhumana. Ihlanganiswe nendlela yokusebenza yasentwasahlobo, i-breaker iletha ukusebenza okuthembekile kokushintsha, umthamo omkhulu wokuphazamisa, nokuzinza kokusebenza kwesikhathi eside.

Kungani Khetha Lesi Siphehli Sesekhethi Ye-Vacuum?

• Idizayini ehlanganiswe emaceleni ehlanganisiwe
• Impilo ende yesevisi kagesi neyemishini
• Ukwakhiwa okulungele ukulungiswa
• Ukusebenza kahle kwe-insulation
• Ukusebenza okuthembekile ngaphansi kwezimo zokushintsha njalo
• Ifanele i-switchgear engaguquki nekhiphekayo
• Ihambisana nokuvikela okuhlakaniphile kanye nezinhlelo ezizenzakalelayo

imibuzo ejwayelekile ukubuzwa

Isetshenziselwani i-24kV Side Mounted Vacuum Circuit Breaker?

Isetshenziselwa ukushintsha, ukuvikela, kanye nokulawula okokusebenza kukagesi we-medium-voltage eziteshini ezingaphansi, ezimbonini zezimboni, izinhlelo zokusabalalisa izinsiza, kanye namanethiwekhi amandla entengiso.

Yiziphi izinzuzo ze-vacuum circuit breaker?

Ama-circuit breaker ahlinzeka ngokuphazanyiswa kwe-arc okuhle kakhulu, izidingo zokunakekelwa okuphansi, impilo ende yesevisi, ukuthembeka okuphezulu kokusebenza, kanye nokusebenza okuvumelana nemvelo ngaphandle kukawoyela noma igesi ye-SF6.

Ingabe le breaker yesekethe ingafakwa ku-switchgear ekhishwayo?

Yebo. Itholakala kukho kokubili okufakwe ku-fixed-mounted and withdrawable, okuvumela ukuhlanganiswa okuvumelana nezimo kuma-switchgear ahlukahlukene.

Yiziphi izimboni ezivame ukusebenzisa lo mkhiqizo?

Isetshenziswa kakhulu ekuphehleni ugesi, iziteshi ezincane, insimbi, izimayini, ukucubungula amakhemikhali, izimboni zamalahle, izinsiza zamandla avuselelekayo, kanye nezinhlelo zokusabalalisa amandla ezimboni.
