I-12KV Ishintshela Ngaphandle Ukuxhuma

Model:GW9-12

Iswishi yokunqamula ngaphandle ye-Anqiang Power engu-12KV ingasetshenziselwa ukusebenza kwesigaba esisodwa ezinhlelweni zemigqa yezigaba ezintathu. Kuyidivaysi yokushintsha ene-pole high-voltage evame ukusetshenziswa kumagridi kagesi angaphandle angu-12KV ukuvula nokuvala amasekhethi ngaphansi kwezimo zokungalayishi. Ifaka ihuku lokudonsa engaguquki kanye nendlela yokuzikhiya, futhi isetshenziswa ngenduku yehuku evalekile ukuze isebenze ngokuguquguqukayo futhi onokwethenjelwa.

Thumela Uphenyo

Incazelo Yomkhiqizo

Iswishi yokunqamula ngaphandle ye-Anqiang Power engu-12KV ifaka ikhefu elilodwa, isakhiwo esivuleka siqonde phezulu. Izivikeli ezisekelayo ze-single-pole disconnect zifakwe kumafreyimu azo ayisisekelo futhi ikakhulukazi ahlanganisa isisekelo, izivikeli ezisekelayo, izingxenye eziyinhloko zesekethe yokuqhuba, kanye nedivayisi yokuzikhiya. Isebenzisa isakhiwo sokushintsha ummese ukuvula nokuvala isifunda. Umshini wokunqamula ukungcoliswa kwangaphandle kwe-high-voltage disconnect switch uhlangabezana nezidingo zabasebenzisi ezindaweni ezingcoliswe kakhulu futhi uxazulula ngempumelelo inkinga ye-flashover ngesikhathi sokusebenza kweswishi yokunqamula.

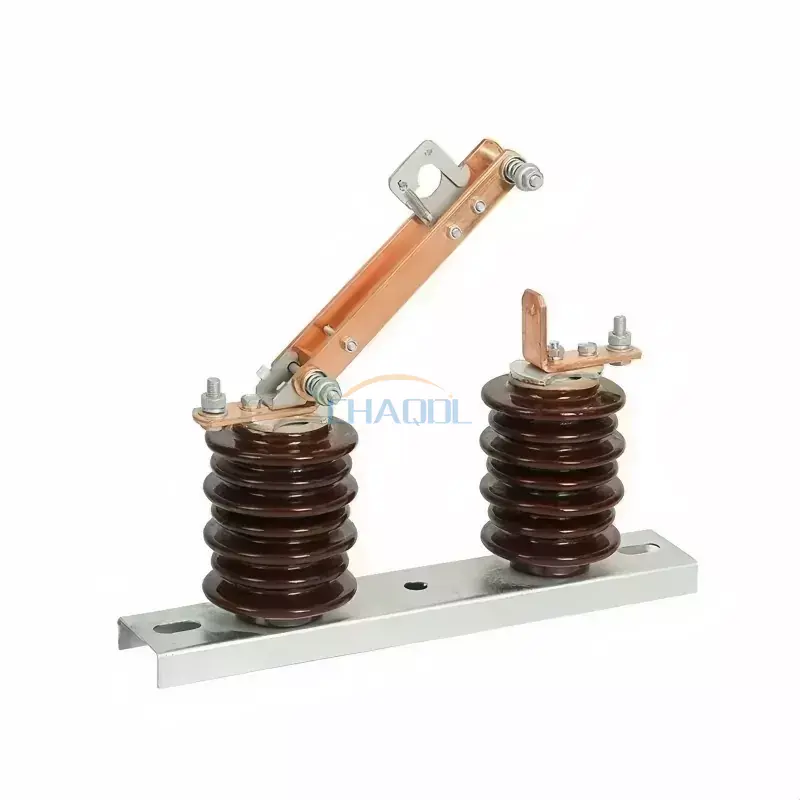

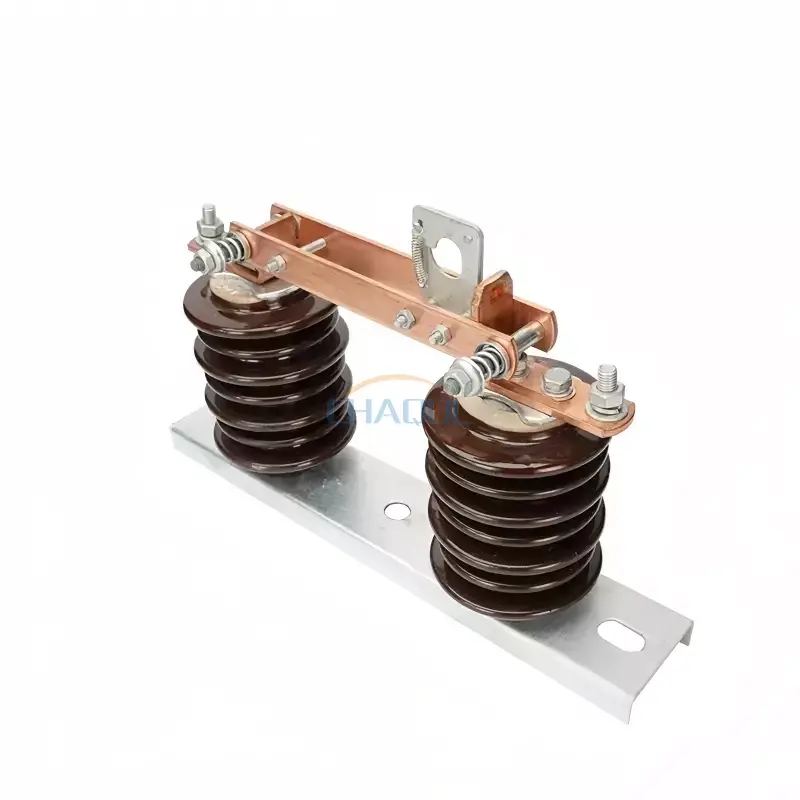

Izithombe zomkhiqizo

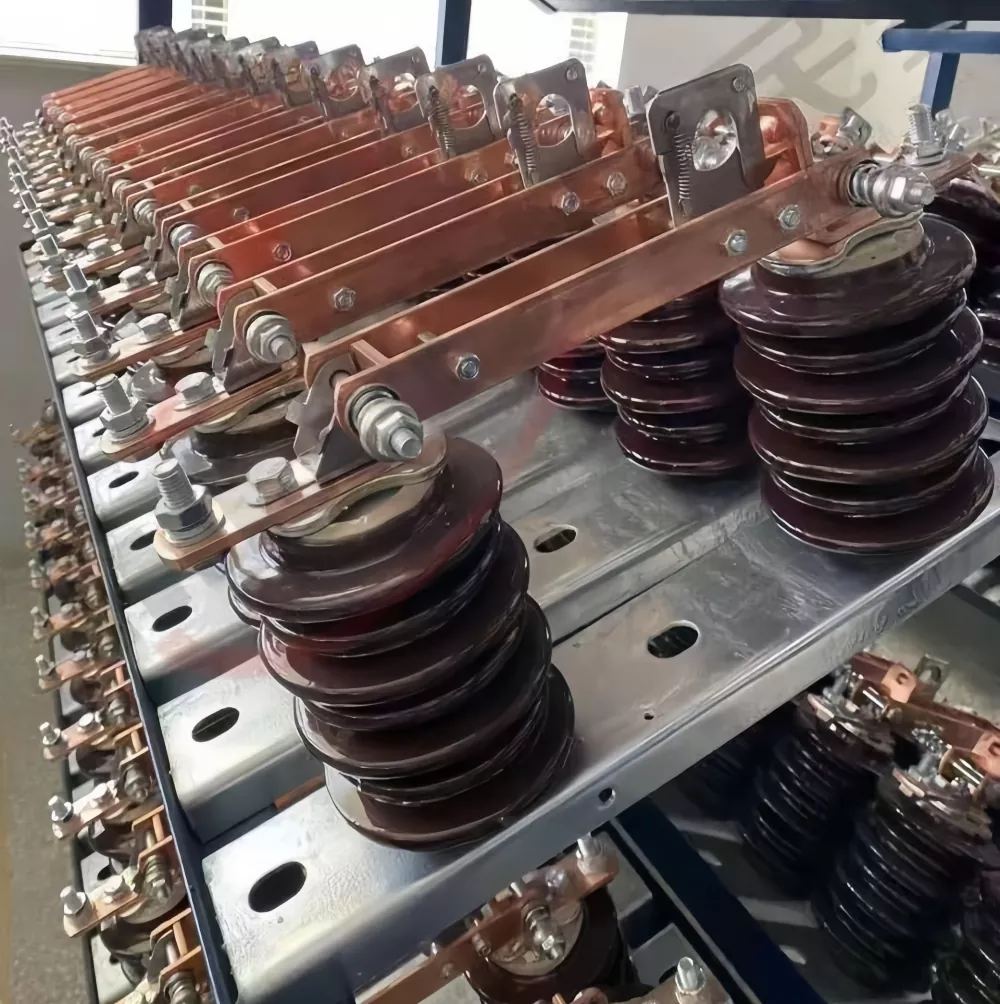

12KV Outdoor Disconnecting Switch

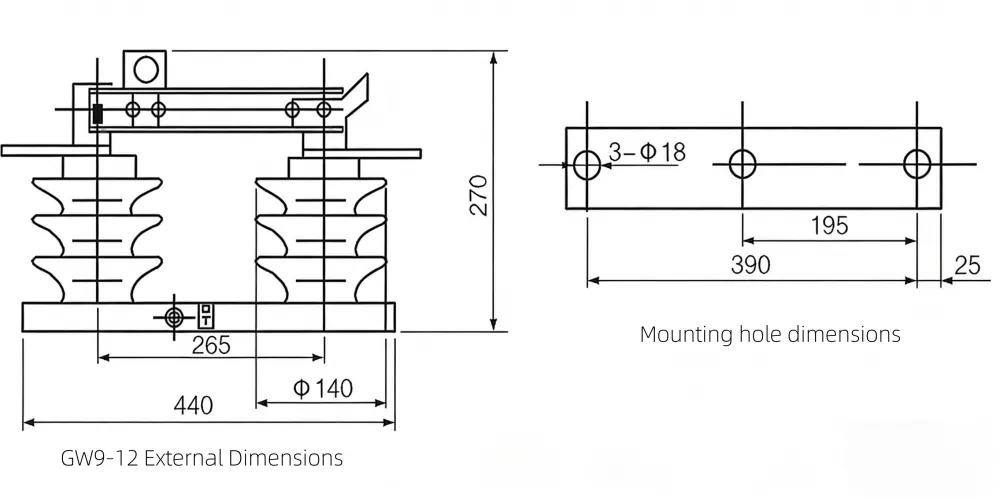

Umdwebo wobukhulu bomkhiqizo

12KV Outdoor Disconnecting Switch

Imingcele Yezobuchwepheshe

Igama lephrojekthi		Inani lepharamitha
I-voltage elinganiselwe		10KV	15kV
I-voltage yokusebenza ephezulu		12kv	17.5KV
Izinga lokwahlukanisa elilinganiselwe	Iminithi elingu-1 ifrikhwensi yamandla imelana ne-voltage	42/48KV	55/65KV
	Umbani umelane ne-voltage	75/85 KV	105/120KV
Ikalwe imvamisa		50 Hz
Ikalwe okwamanje		200/400A	630/1250A
4s ikalwe isikhathi esifushane ukumelana namanje		6.3/12.5kA	20/31.5kA
Ibanga le-creepage		300mm	380mm
Impilo yemishini		2000 izikhathi
Isilinganiso esiphakeme sokumelana nokumelana namanje		16/31.5kA		50/80kA

Isimiso Sokusebenza

Le swishi yokunqamula yangaphandle engu-12KV isetshenziswa kusetshenziswa induku yokufaka ihuku ngesikhathi sokuvula nokuvala. I-insulating hook stick ihlanganisa ihuku lokukhiya leswishi yokunqamula. Ukudonsa ihuku lokukhiya endaweni yokuvula kukhipha indlela yokuzikhiya, okubangela ukuthi ipuleti elixhunyiwe lijikeleze futhi lenze isenzo sokuvula. Ngesikhathi sokuvala, i-hook stick insulating idudula ihuku yokukhiya yeswishi yokunqamula, izungezisa i-shaft futhi ibangele ukuthi i-conductive plate exhunyiwe iphendukele endaweni evaliwe. Kuleli qophelo, indlela yokuzikhiya ikhiya iswishi yokunqamula endaweni evaliwe.
