I-Outdoor High Voltage Nqamula Iswishi

Model:GW4-12(40.5/72.5/126)

I-Anqiang Power's Outdoor High Voltage Disconnect Switch iyimishini esetshenziswa kakhulu ezinhlelweni zamandla. Umsebenzi wabo oyinhloko ukuhlukanisa i-voltage ngesikhathi sokulungiswa kwemishini noma umugqa ukuze kuqinisekiswe ukuphepha. Azikwazi ukuphazamisa ukulayisha okwamanje noma i-short-circuit current futhi kufanele zisetshenziswe ngokuhambisana nama-circuit breaker. Lapho uvala amandla, i-breaker circuit kufanele ivulwe kuqala, ilandelwe ukushintsha kokunqamula; lapho ubuyisela amandla, inkinobho yokunqamula kufanele ivalwe kuqala, ilandelwe yi-breaker circuit.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-Outdoor High Voltage Nqamula Iswishiyakhelwe ukwehlukaniswa kwesekethe okuthembekile kumasistimu wamandla e-AC angaphandle asukela ku-40.5kV ukuya ku-220kV. Isetshenziswa kabanzi eziteshini ezincane, izintambo zokudlulisela, kanye neziteshi zokushintshwa kwegridi lapho ukuhlukaniswa okubonakalayo nokuphepha kwemishini kuyadingeka ngaphansi kwezimo zamandla kagesi aphezulu.

Lolu chungechunge lwe-GW4 luklanywe ngesakhiwo esivulekile esiqinile, esiqinisekisa ukusebenza okuzinzile ngaphansi kwezimo zezulu ezinzima njengemvula enkulu, iqhwa, umthwalo womoya, kanye nezimo ezingcoliswayo. Isekela kokubili izindlela zokusebenza ezenziwa ngesandla nezihamba ngemoto, ihlinzeka ngokuguquguquka kwamazinga ahlukene wegridi ezishintshayo.

Izithombe Zomkhiqizo

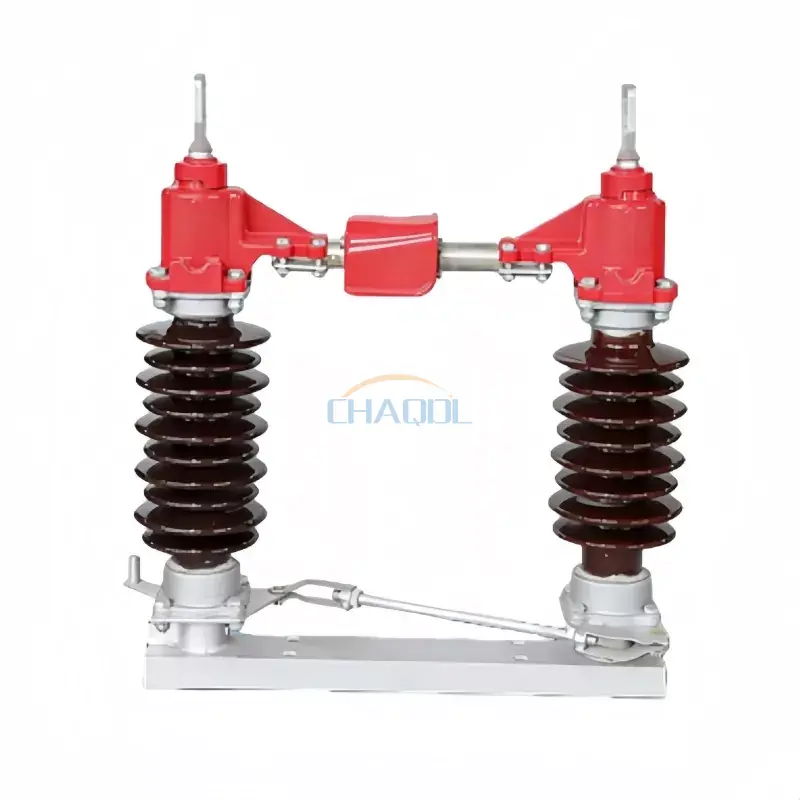

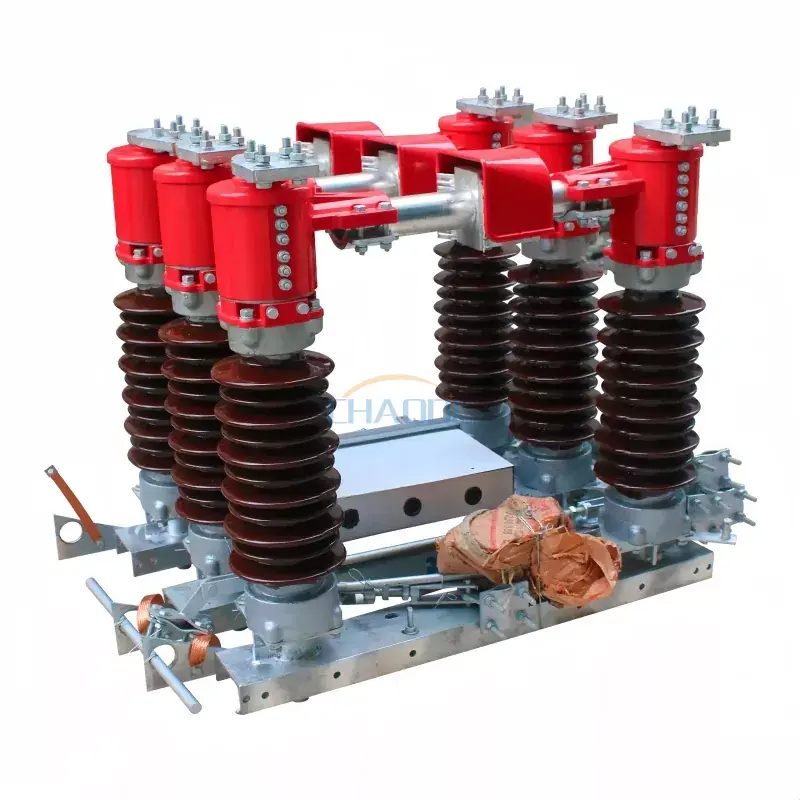

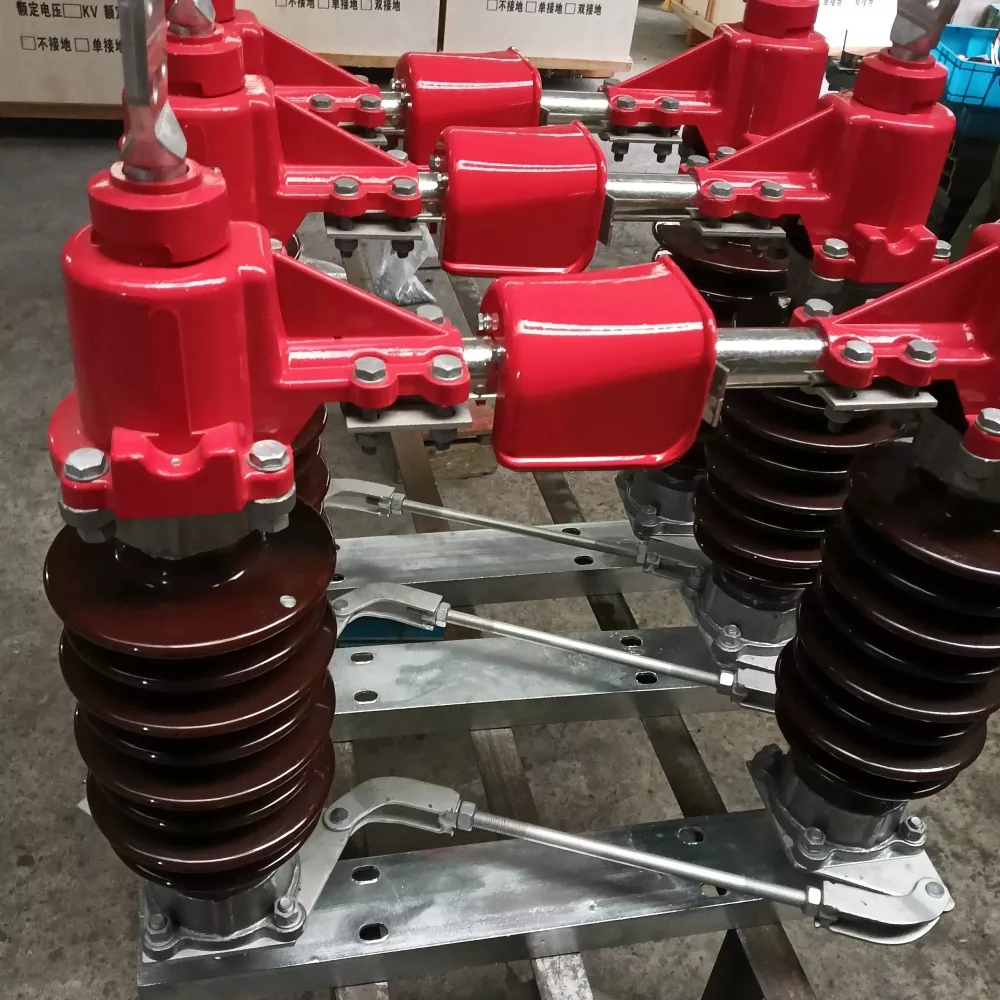

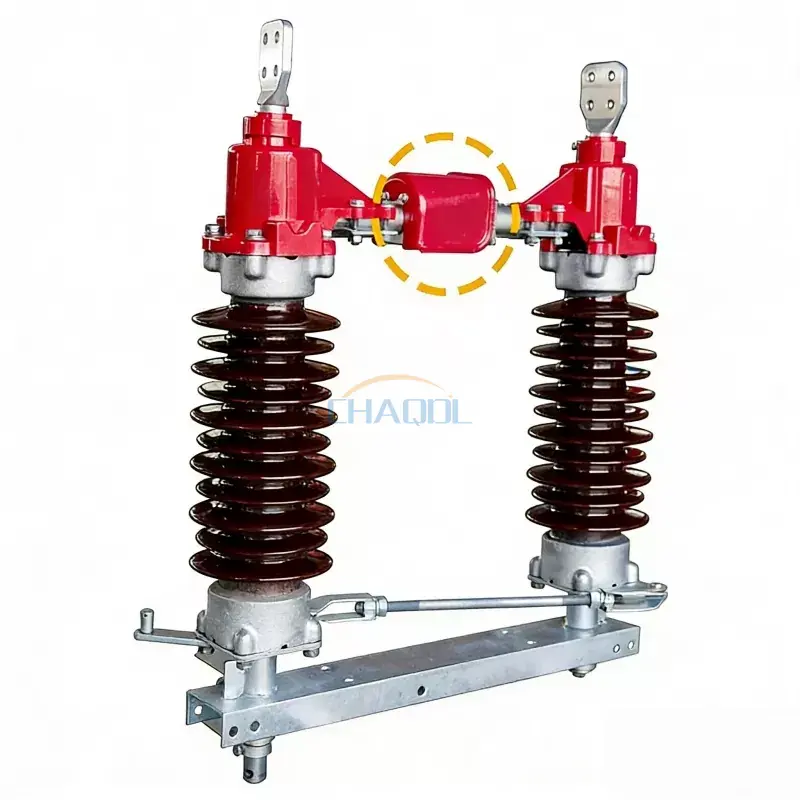

Outdoor High Voltage Disconnect Switch GW4 Series

Idizayini Yesakhiwo kanye nezici zobunjiniyela

Iswishi yamukela ukwakheka kwensingo ejikelezayo evundlile enezivikeli zeposi zobumba, amashubhu e-conductive, kanye nohlaka oluyisisekelo lwensimbi olunamandla aphezulu. Uhlelo lokuxhumanisa lwemishini luqinisekisa ukusebenza okuvunyelanisiwe kwezigaba ezintathu, kunciphisa izingozi zokungaqondani kahle ngesikhathi sokushintsha.

Uma kuqhathaniswa nezihlukanisi zendabuko, lokhuI-Outdoor High Voltage Nqamula Iswishikuthuthukisa ukufana kwengcindezi yokuxhumana futhi kunciphisa i-oxidation emajoyintini e-conductive, kwandisa kakhulu impilo yesevisi ezinhlelweni zesikhathi eside zangaphandle.

Imingcele Yezobuchwepheshe

Igama lephrojekthi			Inani lepharamitha
I-voltage elinganiselwe			40.5KV		72.5KV		126kV
Izinga lokwahlukanisa elilinganiselwe	Iminithi elingu-1 ifrikhwensi yamandla imelana ne-voltage		95/115 KV		140/160 KV		230/245KV
	Umbani umelane ne-voltage		185/215 KV		325/375 KV		550/630 KV
Ikalwe imvamisa			50 Hz
Ikalwe okwamanje			400/630/1000A		1250/1600/2000A		3150/4000A
Ilinganiselwe isikhathi esifushane ukumelana nokwamanje			16/20/31.5kA		31.5/40kA		50kA
Isilinganiso esiphakeme sokumelana nokumelana namanje			40/50/63kA		80/100kA		125kA
Ilinganiselwe ubude besikhathi esifushane			4/2s
Umthwalo wemishini wetheminali elinganiselwe	Umthwalo we-longitudinal ovundlile		750N		1000N
	Umthwalo oseceleni ovundlile		500N		750N
	Amandla aqondile		750N		1000N
Impilo yemishini			2000 izikhathi
Indlela esetshenziswa mathupha		Ngaphandle kwesisekelo	I-CS11(F)
		Isisekelo esisodwa	I-CS 8-6D(F)
		Isisekelo esiphindwe kabili	I-Main cutter CS14G, i-ground cutter CS11
		Lawula i-voltage yesifunda	I-AC 220/380,DC 220
Indlela yokusebenza eshayelwa yimoto		Imodeli	CJ5/CJ6
		I-motor voltage	AC220/380,DC220
		Lawula i-voltage yesifunda	AC220,DC220
		Isikhathi sokuvula (se-circuit breaker)	6±1s
Isisindo somkhiqizo		Akusekelwe phansi	360kg	500kg		700kg
		Isisekelo esisodwa	410kg	600kg		800kg
		Isisekelo esiphindwe kabili	460kg	700kg		900kg

Umdwebo wobukhulu bomkhiqizo

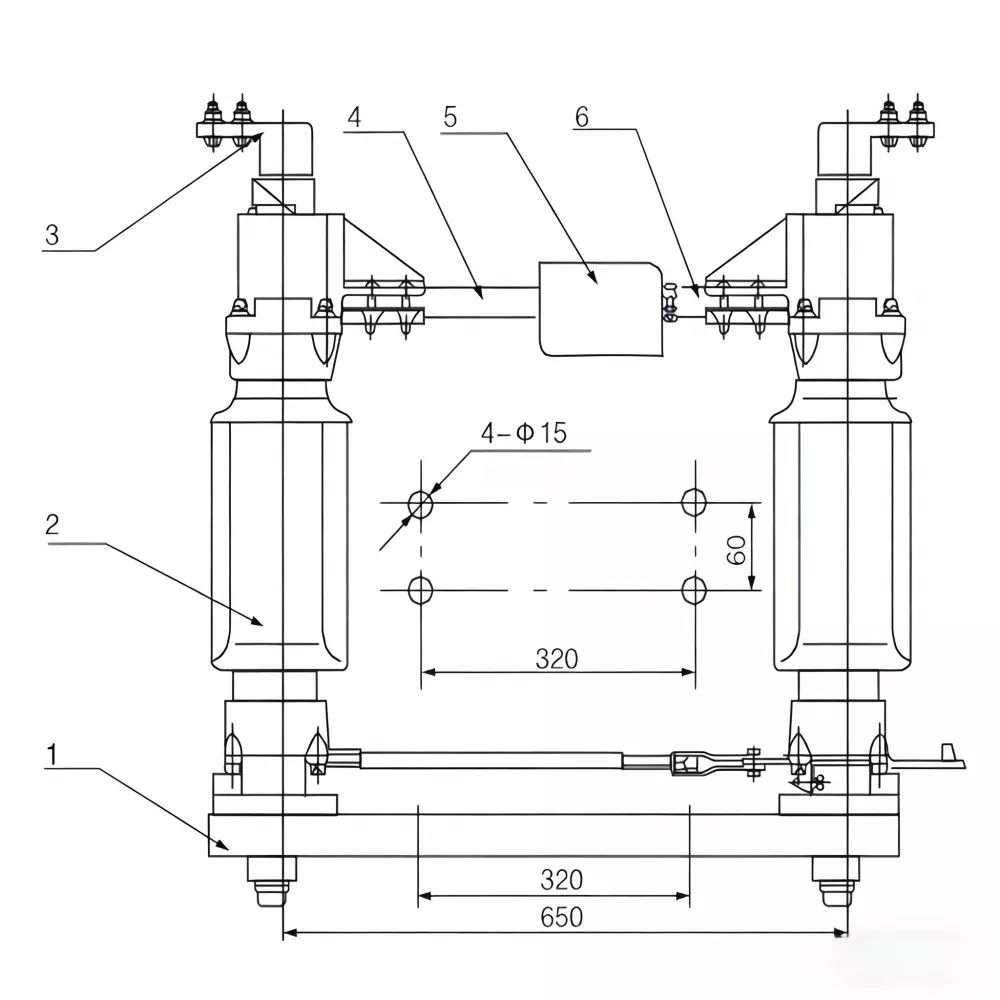

I-GW4 Series Uhlolojikelele Lwesakhiwo

GW4 Outdoor High Voltage Disconnect Switch Structure

1. Isisekelo

2. Sekela isivikelo

3. Itheminali yocingo

4. I-stationary conductive tube

5. Ikhava yamanzi eyisikwele

6. I-tube conductive ehambayo

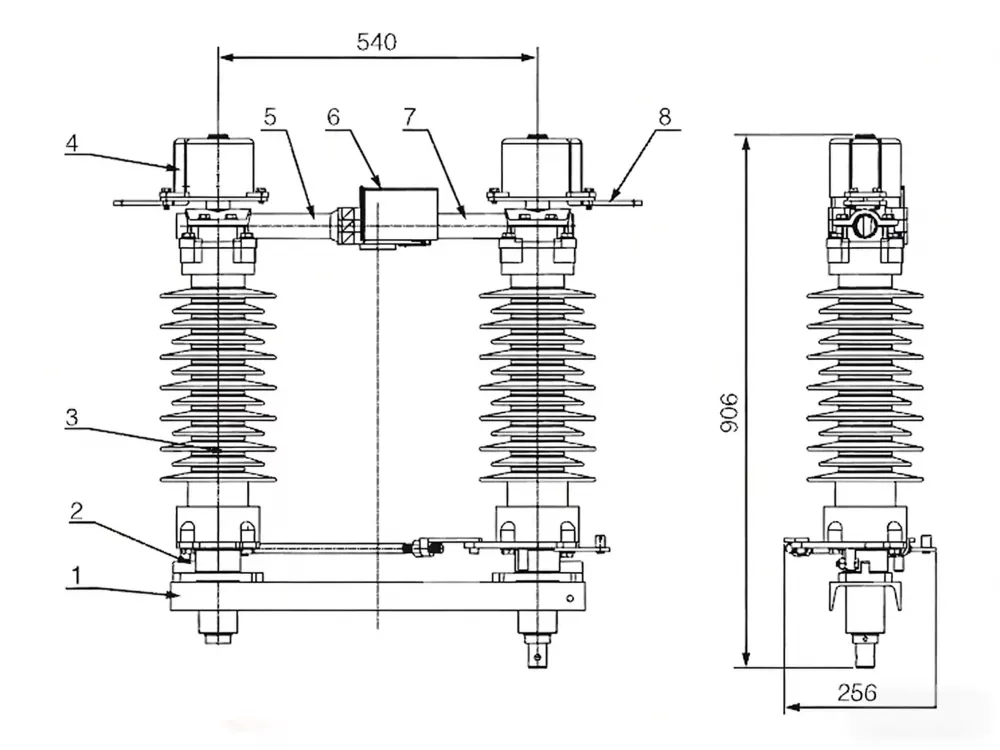

Ukucushwa Kwepholi Elodwa

Single Pole Outdoor High Voltage Disconnect Switch

1. Ubakaki wensimbi wesiteshi

2. Isisekelo sokusekela

3. Iposi lokuvikela

4. Itheminali yokuphuma kwesokudla

5. I-Cylindrical end conductive rod

6. Ikhava yemvula

7. Xhumana nenduku ye-conductive

8. Itheminali yokuphuma kwesokunxele

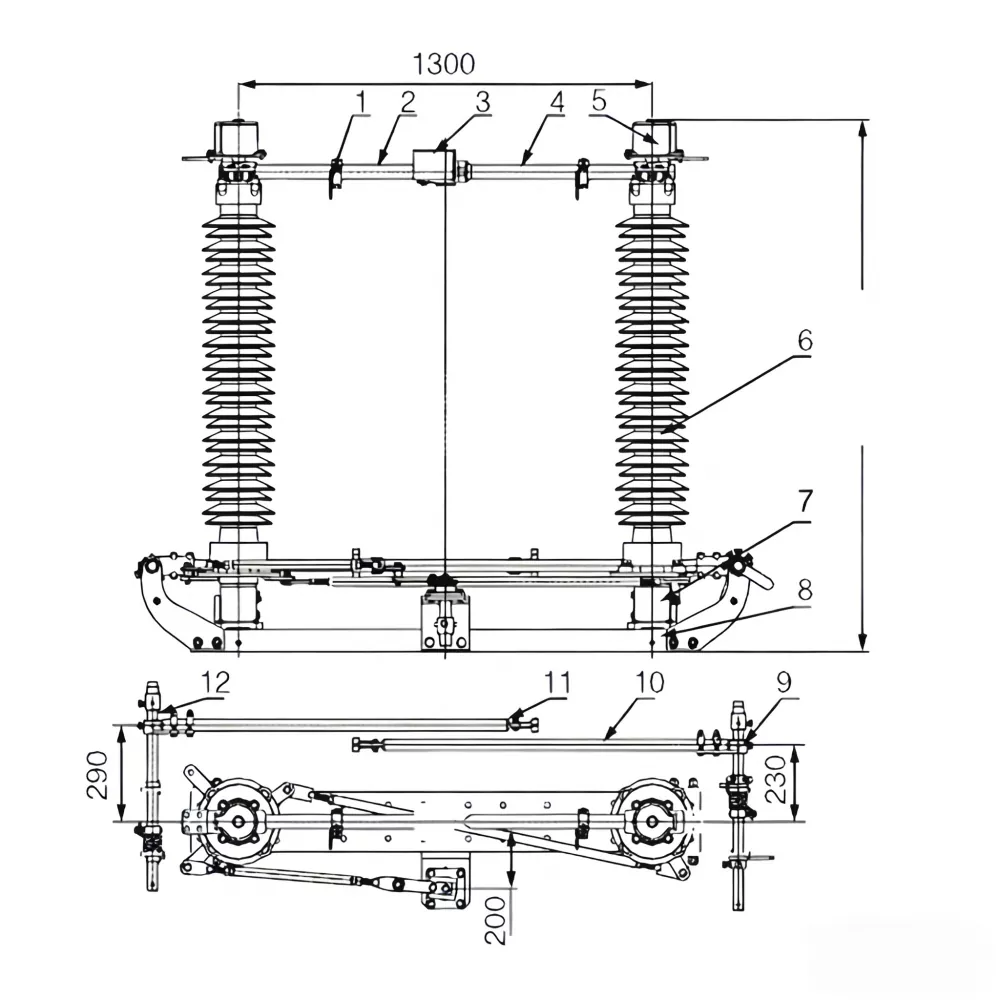

126kV High Voltage Isakhiwo

126kV Outdoor High Voltage Disconnect Switch

1. Oxhumene naye ogxilile weswishi

2. Induku yomhlahlandlela wokuxhumana

3. Ikhava yemvula yensimbi engagqwali

4. Induku ye-Cylindrical conductive

5. Ibhulokhi yokugcina yokuxhuma eguquguqukayo

6. Ukwesekwa kwe-insulating

7. Izindlu zokuzala

8. Ukukhweza uhlaka lwesisekelo

9. Ukuhlanganiswa kweswishi yesisekelo sokudla

10. Grounding switch steel pipe

11. Iswishi yokubeka phansi inyakazisa othintana naye

12. Ukuhlanganiswa kweswishi yaphansi kwesokunxele

Izinzuzo Zobunjiniyela Ziqhathaniswa Nemikhiqizo Evamile

Into yokuqhathanisa	GW4 Series Outdoor High Voltage Nqamula Shintsha	Imikhiqizo Yemakethe Evamile
Ukuzinza Kwesakhiwo	Isisekelo sensimbi esiqinisiwe esinokuxhumana kwezigaba ezintathu ezivumelanisiwe	Ukusebenza kwesigaba esizimele esinobungozi obuphezulu bokungaqondani kahle
Ukusebenza Kokuxhumana	Ishubhu yokuhambisa ethuthukisiwe enokumelana ne-oxidation encishisiwe	Ukuthintana kwethusi okujwayelekile okujwayele ukugqokwa isikhathi eside
Ukumelana Nesimo Sezulu	Idizayinelwe imvula, iqhwa, umoya, nokungcoliswa kwemvelo	Ukuvikelwa okulinganiselwe ezimeni zangaphandle ezinzima
Imodi yokusebenza	Isekela ukusebenza okwenziwa ngesandla nokuqhutshwa yimoto	Ikakhulukazi amasistimu enziwa ngesandla kuphela
Imfuneko Yesondlo	Ukugcinwa okuphansi okunezikhawu zokuhlola ezinde	Ukugcinwa njalo kuyadingeka

Izimo Zohlelo Lokusebenza

I-Outdoor High Voltage Disconnect Switch isetshenziswa kabanzi ku:

Iziteshi ezidlulisa amandla aphezulu
Amanethiwekhi okusabalalisa amandla kanye neziteshi zokushintsha igridi
Izinhlelo zokuphakela amandla ezimbonini
Iziteshi zamandla avuselelekayo (amapulazi omoya kanye nelanga)
Izinhlelo zamandla kaloliwe kanye nengqalasizinda

Amanothi okufaka nokusebenza

Ukuqondanisa kahle kwe-shaft ejikelezayo nesakhiwo sokusekela isivikelo kubalulekile ukuze kuqinisekiswe ukusebenza kahle kwemishini. Uhlaka oluyisisekelo kufanele lusekelwe ngokuvikelekile, futhi indlela yokusebenza kufanele ihlolwe ngaphambi kokunika amandla ukuze kuqinisekiswe ukusebenza kokushintsha okuphephile ngaphansi kwezimo zokungalayishi.

FAQ

I-Q1: Imuphi umsebenzi oyinhloko walesi Sishishi Sokunqamula I-Outdoor High Voltage?
Inikeza ukuhlukaniswa okubonakalayo kwamasekhethi aphezulu-voltage ukuqinisekisa ukugcinwa okuphephile nokusebenza kwesistimu.

Q2: Ingabe le swishi ingasebenza ngaphansi kwezimo zezulu ezisindayo zangaphandle?
Yebo, yakhelwe izindawo ezingaphandle ngokwedlulele ezihlanganisa ukungcola, imvula, iqhwa, nezimo zomthwalo womoya.

Q3: Yini eyenza uchungechunge lwe-GW4 luhluke kuzihlukanisi ezijwayelekile?
Inikeza ukuvumelanisa kwemishini okuthuthukisiwe, ukumelana nokugqwala okuqinile, nempilo ende yokusebenza uma kuqhathaniswa namamodeli avamile.

I-Q4: Ingabe ukusebenza kwezimoto kuyatholakala?
Yebo, zombili izindlela eziqhutshwa ngesandla neziqhutshwa yimoto zingahlelwa ngokuya ngezidingo zephrojekthi.

Q5: Yiziphi izimboni ezivame ukusebenzisa le mishini?
Isetshenziswa kakhulu ekudluliselweni kwamandla, iziteshi ezincane, izinhlelo zamandla avuselelekayo, kanye namanethiwekhi amakhulu kagesi wezimboni.
