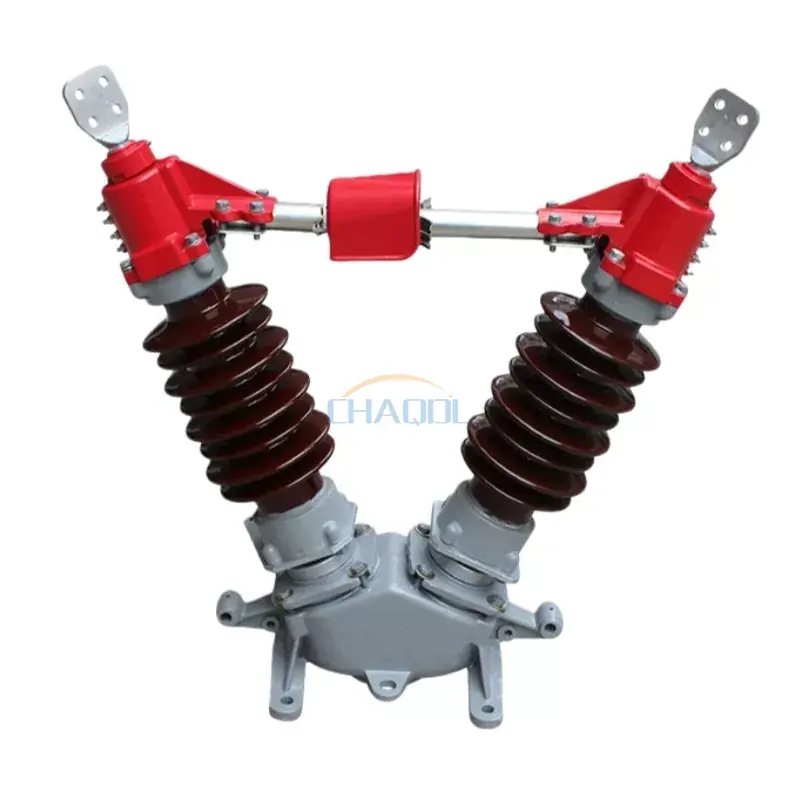

I-40.5KV Iswishi yokunqamula ngaphandle

Model:GW5-40.5

Iswishi yokunqamula yangaphandle ye-Anqiang Power eyakhiwe ngokuzimela engu-40.5KV iyikholomu ephindwe kabili, ikhefu elivundlile, uhlobo oluvula maphakathi, futhi ingahlonyiswa ngamaswishi aphansi ohlangothini olulodwa noma zombili. Kuyidivayisi yangaphandle enevoltage ephezulu elungele izinhlelo zokusebenza ze-AC 50Hz, enamazinga kagesi alinganiselwe angu-40.5KV, 72.5KV, kanye no-126KV. Singakwazi ukwenza ngokwezifiso ngokuvumelana nemidwebo noma izidingo zamakhasimende.

Thumela Uphenyo

Incazelo Yomkhiqizo

Uchungechunge lwe-GW5I-40.5KV Iswishi yokunqamula ngaphandleyakhelwe ukudlulisa nokusabalalisa amanethiwekhi kagesi aphakathi nendawo naphezulu asebenza ngaphansi kwezimo ze-AC 50Hz. Isetshenziswa kabanzi eziteshini ezingaphansi kanye naseziteshini zamandla ukuze ihlukanise ngokuphephile amasekhethi ngaphansi kwamandla kagesi ngaphandle komthwalo wamanje. Isakhiwo samukela indlela yokuvula yamakholomu amabili evundlile yohlobo lwe-V, eqinisekisa ukuvunyelwa kukagesi okuzinzile kanye nokwethembeka okuqinile komshini ezindaweni ezingaphandle ezinonya.

Uma kuqhathaniswa namaswishi ajwayelekile okuhlukanisa, lokhuI-40.5KV Iswishi yokunqamula ngaphandleinikeza ukumelana komoya okuthuthukisiwe, ukusebenza okuthuthukisiwe kokunqanda ukungcoliswa kwemvelo, kanye nesistimu yokuxhumana ezinzile, okuyenza ifaneleke ukusebenza isikhathi eside ezindaweni ezisogwini, ogwadule, nezinomswakama ophezulu.

Izici Eziyinhloko Zomklamo

Isakhiwo sokuvula esivundlile esimise kwekholomu engu-V esimise okuka-V sokuqina okuthuthukisiwe
Idizayini yesigxobo se-modular ene-porcelain yamandla aphezulu noma ama-insulators ayinhlanganisela
Isekela izindlela zokusebenza ezenziwa ngesandla nezihamba ngemoto
Ukucushwa kwesisekelo ongakukhetha: okungasekelwe phansi, okusekelwe endaweni eyodwa, okusekelwe kabili
Isistimu yokuxhumanisa ngomshini phakathi kweladi eliyinhloko nensingo ephansi ukuze kuphephe
Ukumelana nokugqwala okuthuthukisiwe kwesevisi yangaphandle yesikhathi eside

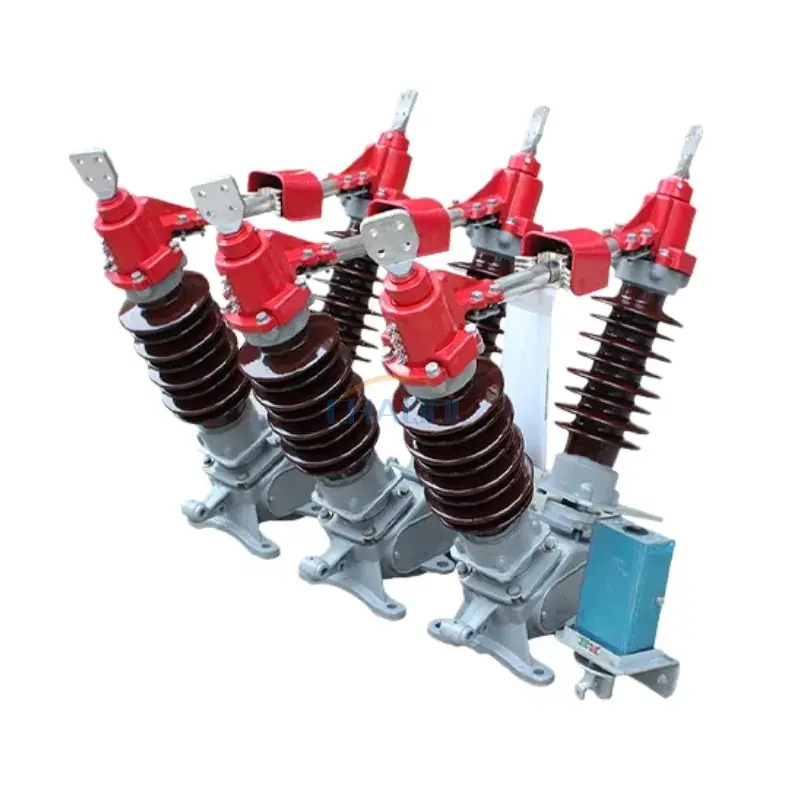

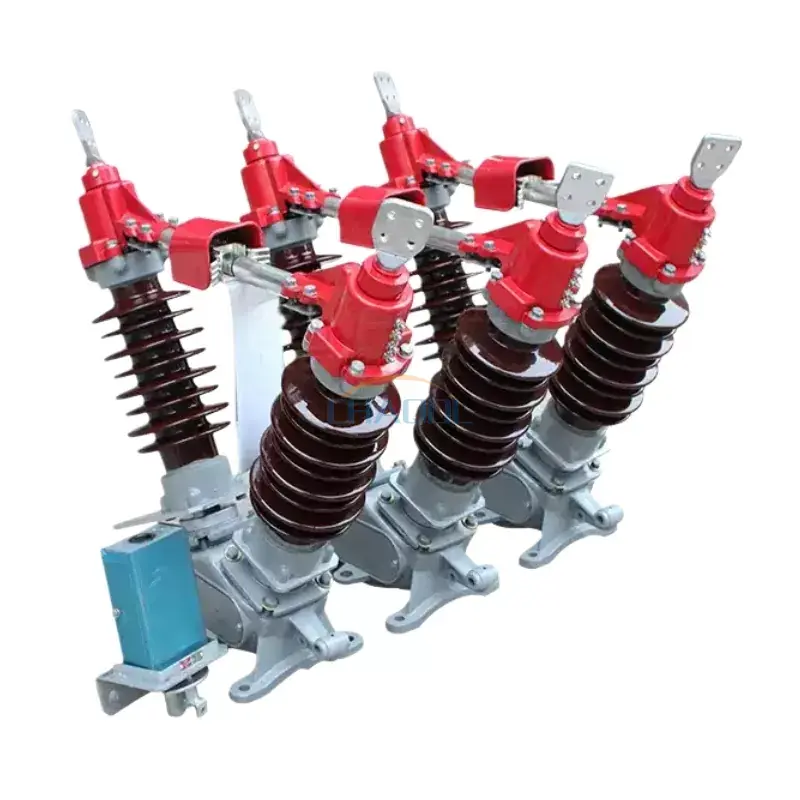

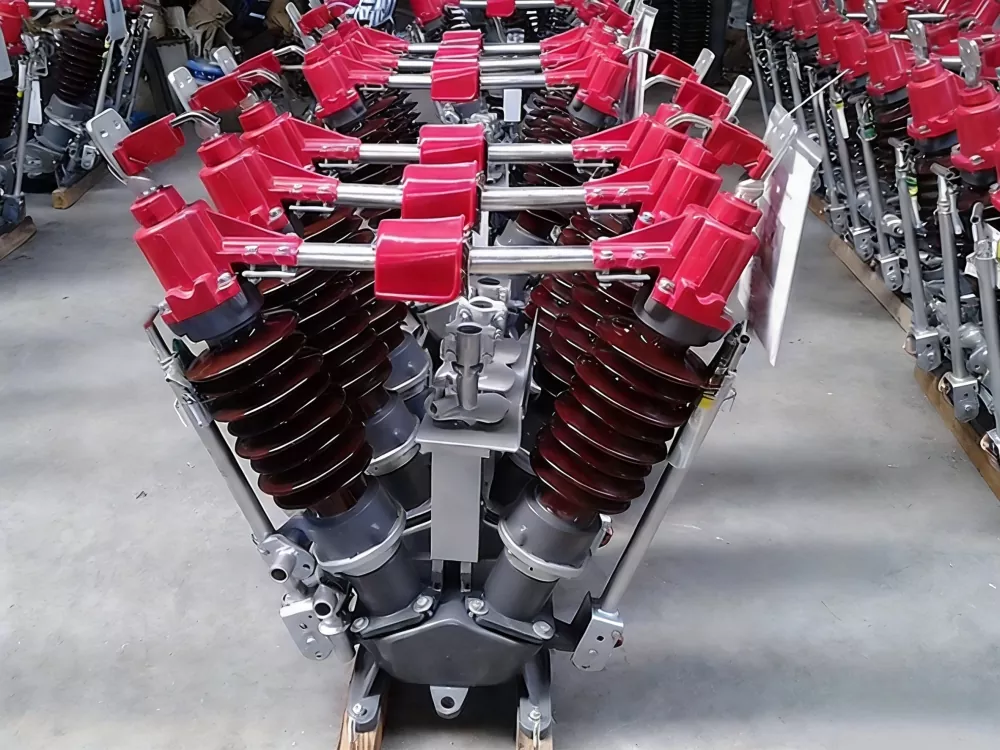

Izithombe Zangempela Zomkhiqizo

40.5KV Outdoor Disconnecting Switch

Imingcele Yezobuchwepheshe

Igama lephrojekthi			Inani lepharamitha
I-voltage elinganiselwe			40.5KV	72.5KV			126kV
Izinga lokwahlukanisa elilinganiselwe	Iminithi elingu-1 ifrikhwensi yamandla imelana ne-voltage		95/115 KV	140/160 KV			230/245KV
	Umbani umelane ne-voltage		185/215 KV	325/375 KV			550/630 KV
Ikalwe imvamisa			50 Hz
Ikalwe okwamanje			630/1250A	1600A			2000A
Ilinganiselwe ubude besikhathi esifushane			4/2s
Umthwalo wemishini wetheminali elinganiselwe	Umthwalo we-longitudinal ovundlile		750N	1000N
	Umthwalo oseceleni ovundlile		500N	750N
	Amandla aqondile		750N	1000N
Ibanga le-creepage			1013/1256mm	1813/2248mm
Impilo yemishini			2000 izikhathi
Indlela esetshenziswa mathupha			CS17,CS17G
Indlela yokusebenza eshayelwa yimoto		Imodeli	CJ5/CJ6
		I-motor voltage	AC220/380,DC220
		Lawula i-voltage yesifunda	AC220,DC220
		Isikhathi sokuvula (se-circuit breaker)	6±1s
Isisindo somkhiqizo		Akusekelwe phansi	360kg		500kg	800kg
		Isisekelo esisodwa	390kg		560kg	900kg
		Isisekelo esiphindwe kabili	430kg		620kg	1000kg

Umdwebo wobukhulu bomkhiqizo

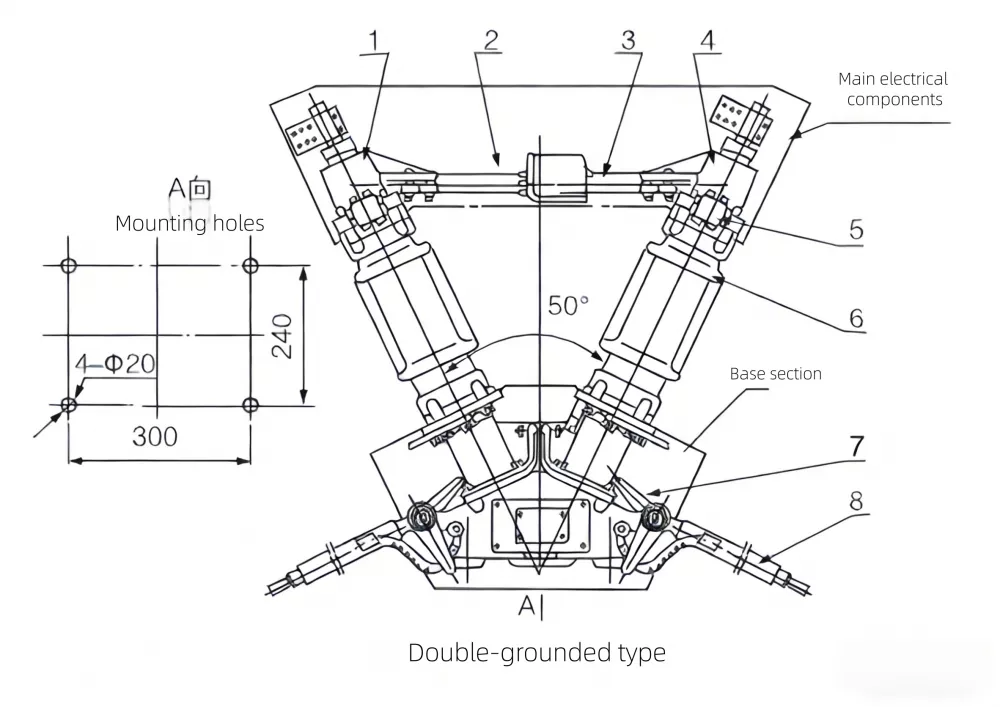

I-GW5-40.5KV Ngaphandle Kokunqamula Ubukhulu beDimensions

40.5KV Outdoor Disconnecting Switch Dimensions Diagram

1.Ibhulokhi yetheminali
2. Othintana naye oyinhloko
3. Umunwe othintana naye oyinhloko
4. Ibhulokhi yetheminali
5. Ukwehlisa umunwe wokuxhumana
6. Thumela isivikelo
7. Limit plate
8. I-Grounding switch

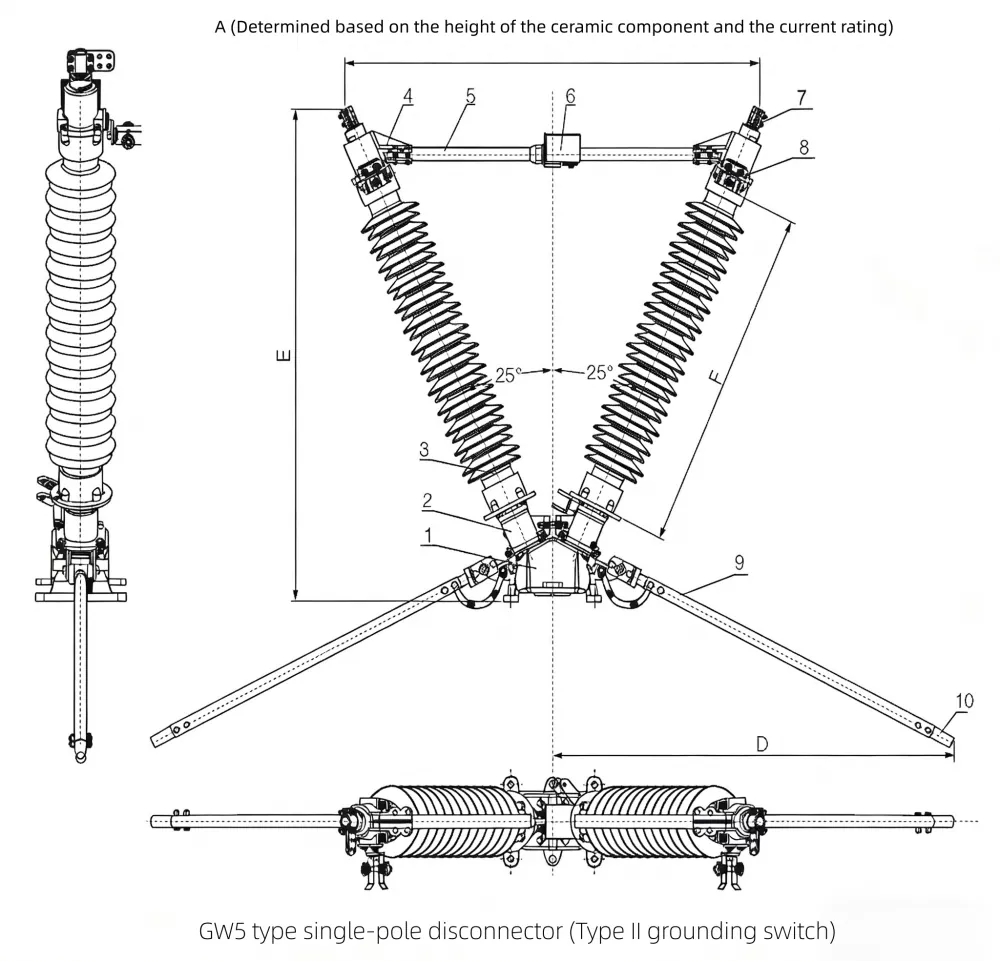

I-GW5-126 Yangaphandle Nqamula Umdwebo Wobukhulu bokushintsha

Outdoor High Voltage Disconnect Switch Diagram

1. Isisekelo
2. Ukusekela
3. Iposi lokuvikela
4. Ibhulokhi yetheminali
5. Round shaft conductive induku
6. Induku ye-conductive shaft yesikwele
7. Isigxivizo setheminali
8. Grounding switch umile ukuthintana
9. Grounding switch aluminium tube
10. Othintana naye we-Grounding switch

Ukuqhathanisa Nemikhiqizo Efanayo

Into yokuhlola	I-GW5 40.5KV yethu Yokunqamula Iswishi Yangaphandle	Imodeli Yesiqhudelana Esivamile
Ukuzinza kwesakhiwo	Idizayini eqinisiwe yekholomu ekabili engu-V enokumelana komoya okuphezulu	Isakhiwo sekholomu eyodwa, ukuzinza okuphansi kwemishini
Ukusebenza kokuxhumana	Iminwe yokuxhumana ehlanganiswe ngesiliva, ukusabalalisa kwengcindezi okuthuthukisiwe	Oxhumana nabo bethusi abajwayelekile, ukuguga okusheshayo
Ukuqina kwangaphandle	I-anti-corrosion coating + isistimu ye-insulator eqinisiwe	Ukugqoka okuyisisekelo, ukusebenza kogu okulinganiselwe
Ukusebenza nezimo	Isekela ukusebenza kwemanuwali + okuhamba ngemoto ngokuvikela okuphakathi	Ikakhulukazi ukusebenza mathupha kuphela
Izindleko zesondlo	Iphansi ngenxa yempilo ende yemishini (imijikelezo ka-2000)	Imvamisa yokulungisa ephezulu

Izimo Zohlelo Lokusebenza

II-40.5KV Iswishi yokunqamula ngaphandleisetshenziswa kabanzi ku:

Iziteshi ze-high-voltage kanye nama-switchyards
Amasistimu wokuhlukanisa ulayini wokudluliswa kwamandla
Amanethiwekhi okusabalalisa amandla ezimboni
Izindawo zokuxhuma igridi yamandla avuselelekayo (amapulazi omoya nama-solar)
Amaphrojekthi wokuthuthukisa igridi yasemadolobheni nesemakhaya

Ngokuklama kwayo okuqinile kwemishini nokusebenza kukagesi okuzinzile, lesi sinqamuleli siyisinqumo esinokwethenjelwa sabaqhubi abadinga ukuphepha kwesikhathi eside nokusebenza kahle ezindaweni ezingaphandle.
