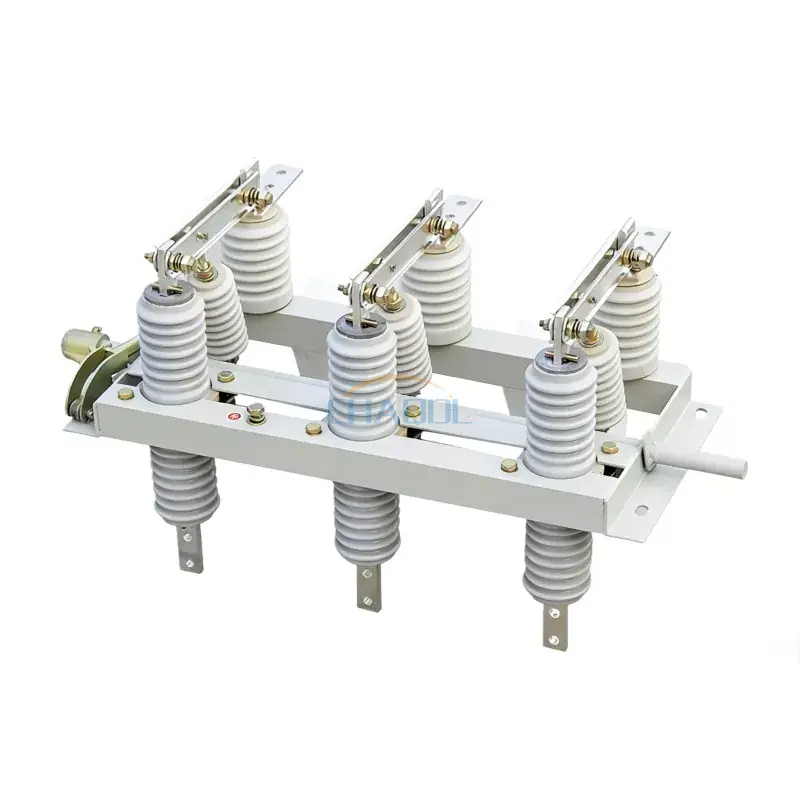

I-Anqiang Power ikhiqiza ethembekileI-Indoor High Voltage Nqamula Iswishiyakhelwe ukuzihlukanisa okuphephile nokuhlukaniswa kwesekethe kumasistimu wokusabalalisa angu-12kV. Uchungechunge lwe-GN19 lusetshenziswa kabanzi emakamelweni e-switchgear angaphakathi, iziteshi ezincane, kanye namakhabethe okulawula amandla ezimboni lapho ukunqanyulwa okubonakalayo nokuphepha kokusebenza kuyadingeka. Isakhiwo sayo sezigxobo ezintathu siqinisekisa ukusebenza okuvumelanisiwe nokusebenza okuzinzile kwemishini ngaphansi kwezimo zokushintshwa okuphindaphindiwe.
Idivayisi yakhiwe ngohlaka oluyisisekelo oluqinile, indlela yeshaft ezungezayo, izivikeli zeposi zobumba, kanye nama-switch switch blades ekhopha aphezulu. Ingxenye ngayinye iklanyelwe ukugcina ingcindezi yokuxhumana ezinzile futhi inciphise ukumelana kukagesi ngesikhathi sokusebenza, iqinisekisa impilo ende yesevisi nokusebenza okuthembekile kokushintsha kumanethiwekhi aphakathi-voltage.

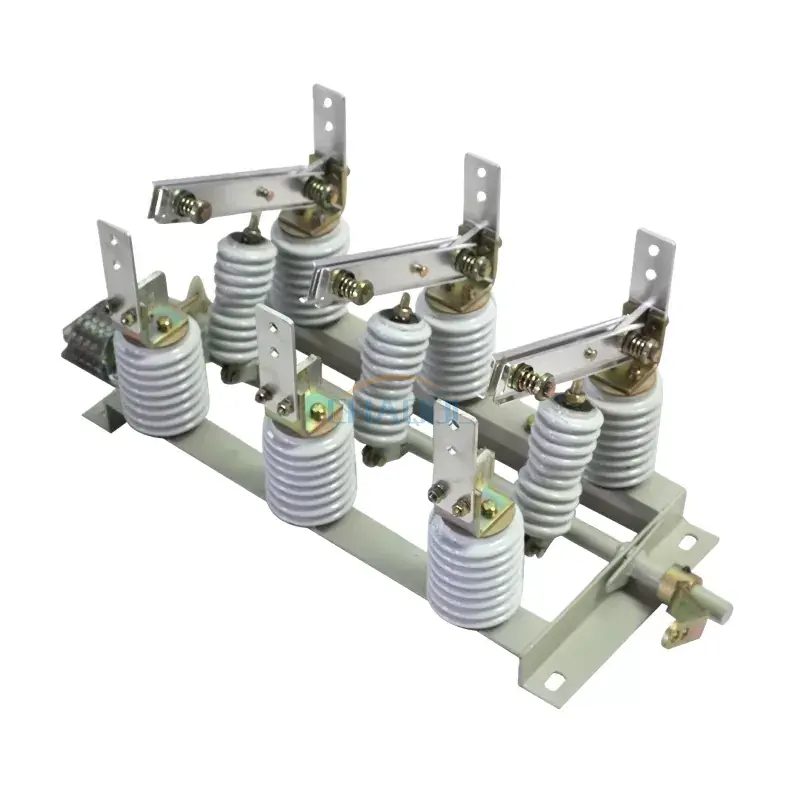

Iswishi ithatha isakhiwo esihlanganisiwe sezigxobo ezintathu esihlanganisa ifreyimu yesisekelo, isistimu ye-shaft ejikelezayo, izinduku zokuxhuma, ama-insulators weposi we-porcelain, nama-switch alloy blades. I-shaft yokusebenza ingaxhunywa kalula ezindleleni zokusebenza ezenziwa ngesandla noma zemoto, okuvumela ukufakwa okuguquguqukayo ekuhlelweni kwe-switchgear ehlukene.
Okuhlukile okukhethekile okufana ne-GN19-12W, GN19-12G, GN19-12X, kanye ne-GN19-12ST yakhelwe izindawo ezihlukene ezihlanganisa izindawo ezingcolile, izifunda eziphakeme kakhulu, izidingo zezinkomba zikagesi, nezinhlelo zokusebenza zokushintshwa kokuphonswa kabili.
Ukucaciswa kokusebenza kukagesi kwamamodeli ochungechunge lwe-GN19:
| Imodeli kanye nokucaciswa | I-voltage elinganiselwe | Ikalwe okwamanje | Ilinganiselwe isikhathi esifushane ukumelana nokwamanje | Isilinganiso esiphakeme sokumelana nokumelana namanje |
| I-GN19-12/400-12.5 | 12kV | 400A | 12.5kA | 31.5kA |
| GN19-12/630-20 | 12kV | 630A | 20kA | 50kA |
| I-GN19-12/1000-31.5 | 12kV | 1000A | 31.5kA | 80kA |
| I-GN19-12/1250-31.5 | 12kV | 1250A | 31.5kA | 80kA |
| I-GN19-12C/400-12.5 | 12kV | 400A | 12.5kA | 31.5kA |
| I-GN19-12C/630-20 | 12kV | 630A | 20kA | 50kA |
| I-GN19-12C/1000-31.5 | 12kV | 1000A | 31.5kA | 80kA |
| I-GN19-12C/1250-31.5 | 12kV | 1250A | 31.5kA | 80kA |
|

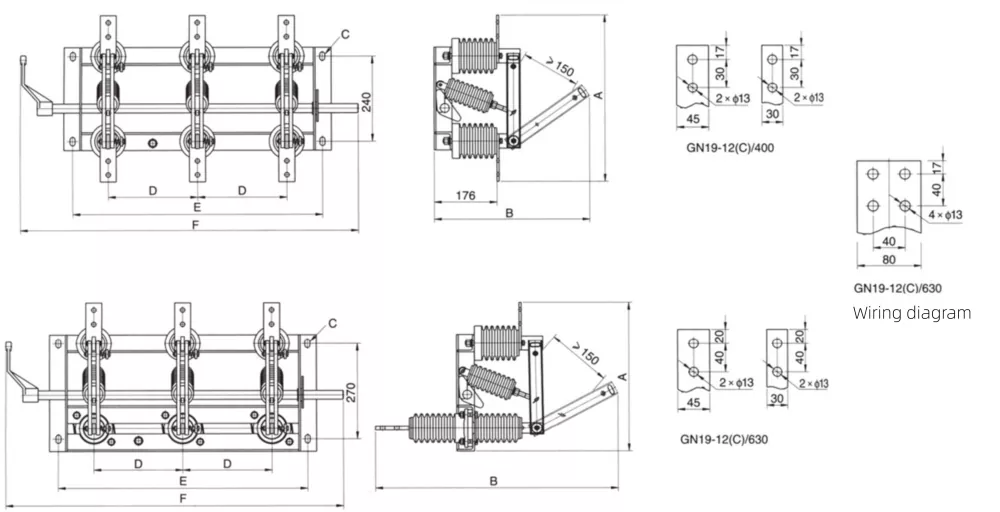

Imodeli kanye nokucaciswa |
A |
B |
C |
D |
|
I-GN19-12/400 |
450 |
446 |
185 |
4-14*24 |
|
GN19-12/630 |
470 |
446 |
185 |
4-14*24 |
|
GN19-12/1000/1250 |
510 |
500 |
196 |
4-18*28 |
|
I-GN19-12C/400 |
420 |
690 |
185 |
4-14*24 |
|
I-GN19-12C/630 |
430 |
690 |
185 |
4-14*24 |
|
I-GN19-12C/1000/1250 |
470 |
745 |
196 |
4-18*28 |
Kumaphrojekthi womhlaba wangempela wokusabalalisa amandla, iI-Indoor High Voltage Nqamula Iswishiikhombisa izinzuzo ezicacile uma iqhathaniswa namaswishi ajwayelekile okuhlukanisa avame ukusetshenziswa emakethe.
| Into yokuqhathanisa | Uchungechunge lwethu lwe-GN19 | Imikhiqizo Yokuncintisana Ejwayelekile |
| Isakhiwo Sothintana naye | Idizayini yengcindezi yokuxhumana kabili ethuthukisiwe enokumelana okuphansi | Isakhiwo soxhumana naye oyedwa, ukulahleka kokuxhumana okuphezulu ngokuhamba kwesikhathi |
| Ukuqina Komshini | Ukukhuthazela komshini womjikelezo ophezulu ofanele ukusebenza njalo | Impilo yomjikelezo enomkhawulo ngaphansi kwezimo zokushintsha njalo |
| Ukwethenjelwa Kwe-Insulation | I-porcelain insulator enamandla amakhulu enebanga eliqinisiwe le-creepage | Idizayini ye-porcelain ejwayelekile enokumelana nokungcola okuphansi |
| Ukuzivumelanisa Nemvelo | Isekela ukungcola, ukuphakama okuphezulu, nokuhlukahluka kwezinkomba | Izinketho ezilinganiselwe zokwenza ngokwezifiso |
| Imfuneko Yesondlo | Ukugcinwa okuphansi nokusebenza okuzinzile kwesikhathi eside | Idinga ukuhlolwa nokulungiswa njalo |
Le Switch ye-Indoor High Voltage Disconnect isetshenziswa kabanzi ku:
Ukufakwa ngendlela efanele kuqinisekisa ukusebenza kahle kwe-Indoor High Voltage Disconnect Switch. Idivayisi kufanele ifakwe kuhlaka lwesisekelo oluzinzile olunokuqondanisa okulungile kwe-shaft ejikelezayo. Indlela yokusebenza kufanele ibhekwe ukuthi ixhumeke kahle yini ngaphambi kokunika uhlelo amandla.
Q1: Uyini umsebenzi oyinhloko walolu shintsho?
Isetshenziselwa ukuhlukanisa ngokuphepha amasekhethi kagesi futhi inikeze indawo yokunqamula ebonakalayo kumasistimu aphakathi nendawo.
Q2: Ingasetshenziswa ngaphandle?
Le modeli yakhelwe ngokuyinhloko ukusetshenziswa kwasendlini. Izinhlelo zokusebenza zangaphandle zidinga izindawo ezivalekile ezilinganiselwe ngokukhethekile noma izinguqulo zamaswishi zangaphandle.
Q3: Yini eyenza umkhiqizo wakho uhluke ezimakethe ezijwayelekile?
Uma kuqhathaniswa namadizayini ajwayelekile, le Switch ye-Indoor High Voltage Disconnect inikezela ngempilo yemishini ethuthukisiwe, idizayini engcono yokuhlukanisa, kanye nokuvumelana nezimo okwengeziwe.
Q4: Ingabe ukwenza ngokwezifiso kuyatholakala?
Yebo, izilinganiso zamanje ezihlukene, izinguqulo zokuphakama kokuphakama, nokulungiselelwa kwezinkomba kungenziwa ngendlela oyifisayo ngokuya ngezidingo zephrojekthi.
Q5: Idinga kangaki ukunakekelwa?
Ngaphansi kwezimo ezijwayelekile, ukuhlolwa ngezikhathi ezithile kwanele ngenxa yesakhiwo sayo esizinzile kanye nezinto ezimelana nokugqwala.
