36kV Indoor High Voltage Circuit Breaker

I36kV Indoor High Voltage Circuit Breaker(Imodeli:I-I-ZN85-40.5) i-medium-voltage vacuum circuit breaker eyenzelwe ukuvikela okuthembekile nokushintsha amasistimu okusabalalisa ugesi. Ihlanganisa nesakhiwo esime mpo esihlangene esinomshini wokusebenza wasentwasahlobo ohlanganisiwe, kunciphisa ngokuphawulekayo ukujula kokufakwa kuyilapho kugcinwa amandla amahle kakhulu okusebenza nokuzinza kokusebenza.

Idizayinelwe ukusatshalaliswa kwamandla ezimboni, iziteshi ezingaphansi, izimboni zamandla kagesi, imisebenzi yezimayini, nezindawo ezinkulu zezentengiselwano, i36kV Indoor High Voltage Circuit Breakerinikeza ukushintsha okunokwethenjelwa komthwalo ovamile wamanje, umthamo wamanje ogcwele ngokweqile, kanye nephutha lesiphambeko sesiyingi esifushane. Isakhiwo sayo esilungele ukunakekelwa, impilo ende yesevisi, nokusebenza okuphukayo okuphezulu kuyenza ibe yisixazululo esifanelekile sezinhlelo zesimanje ze-medium-voltage switchgear.

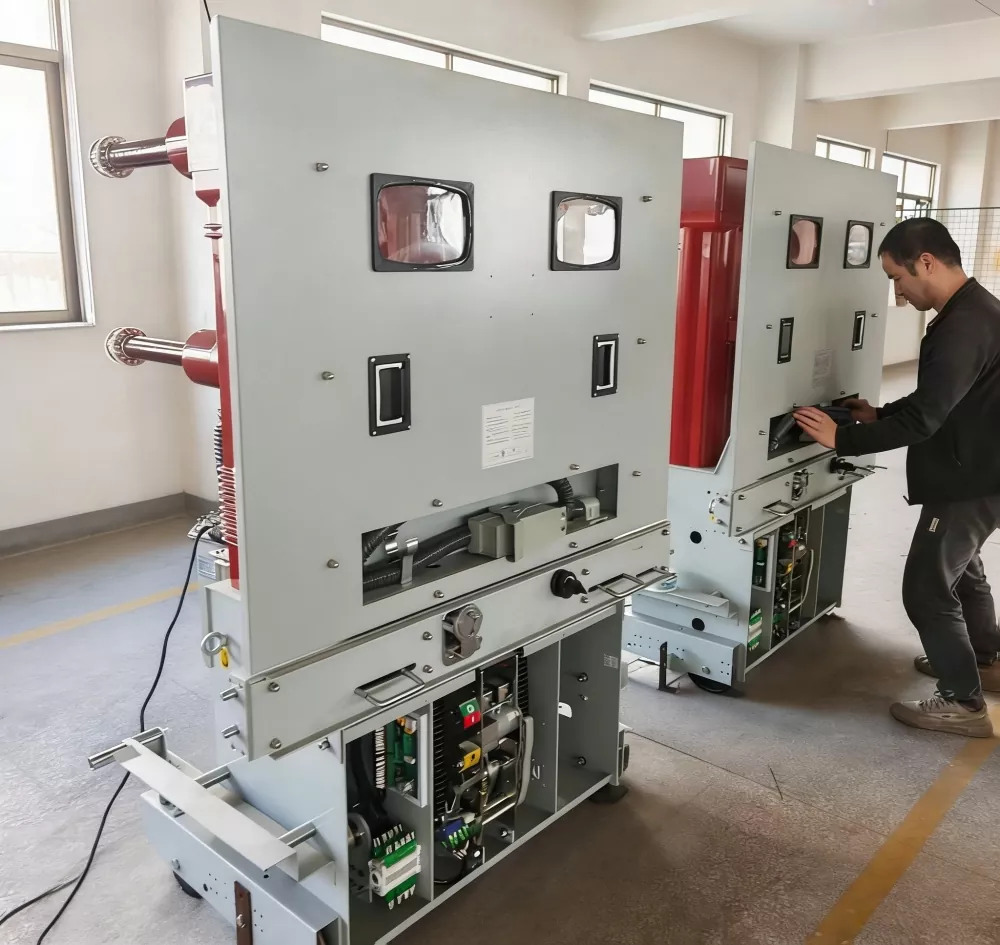

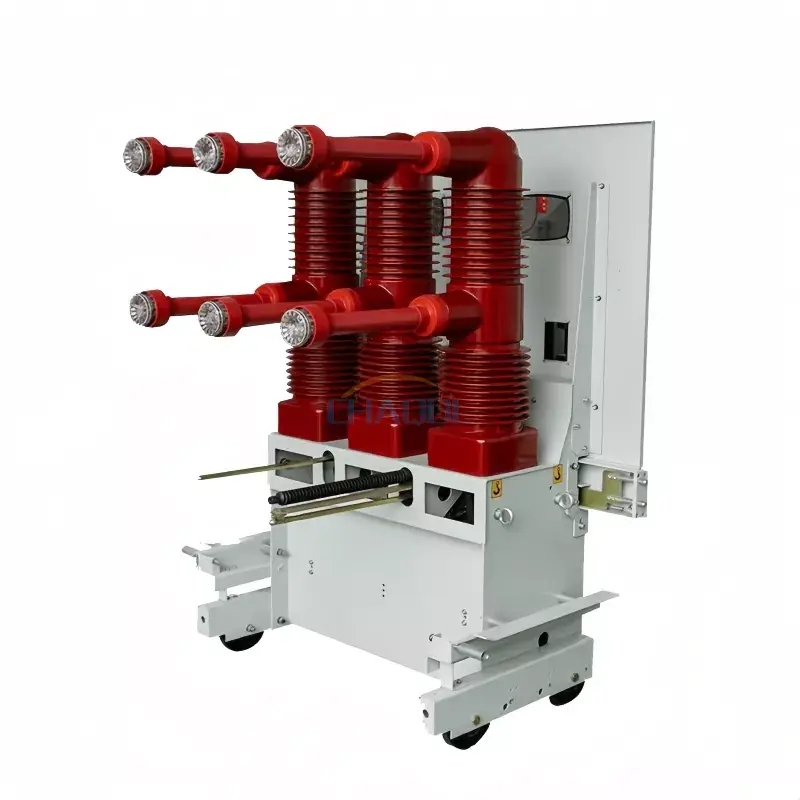

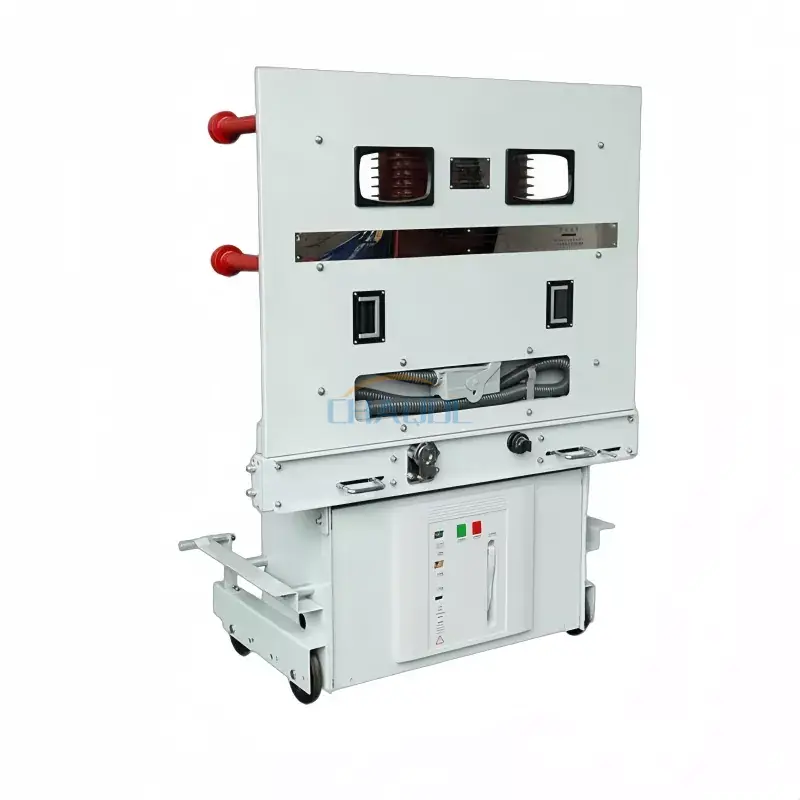

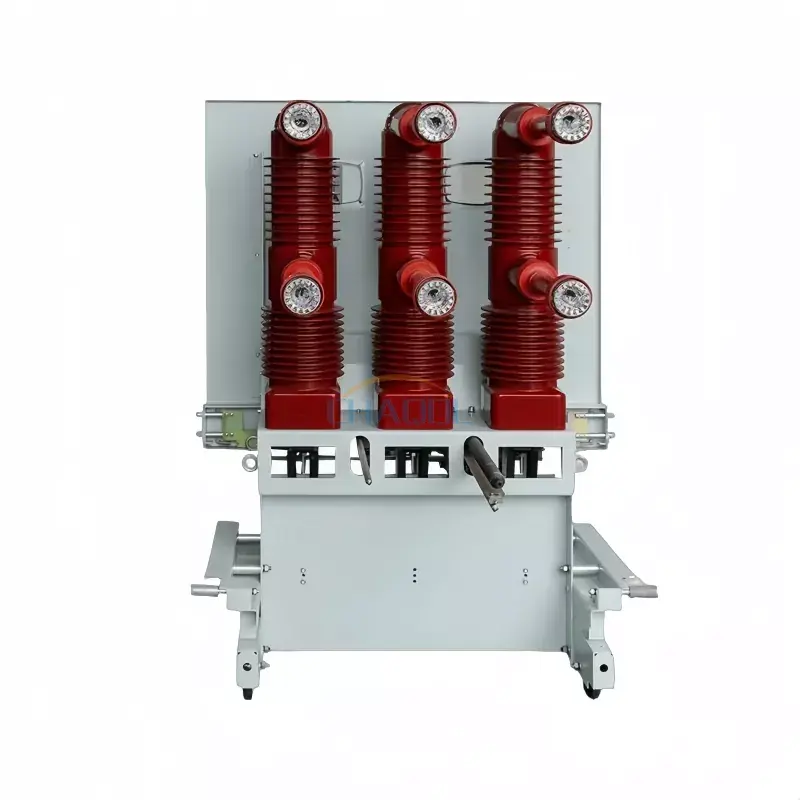

Izithombe Zomkhiqizo

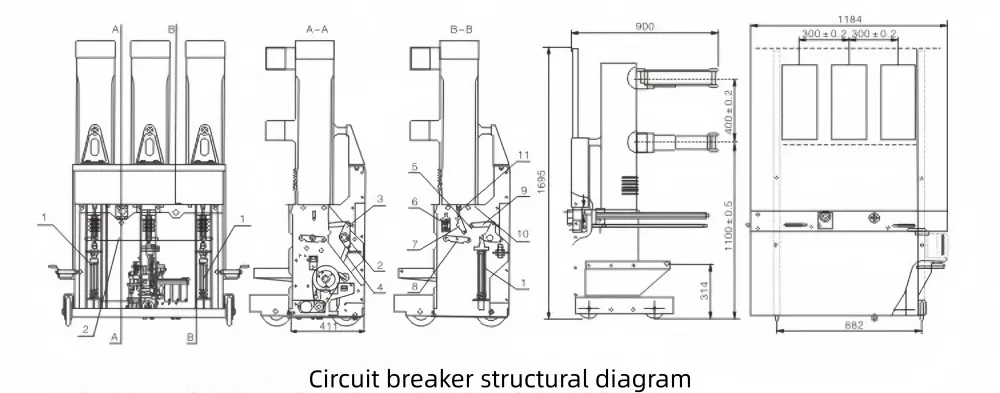

Umdwebo wobukhulu bomkhiqizo

1. Intwasahlobo yokuvula
2. Umphini Omkhulu
3. Middle Pole Crank Arm
4. Induku yokudlulisa
5. I-Transmission Connecting Plate
6. Xhumana noSpring
7/8/9. Amapuleti Okuxhumanisa Ukudlulisa
10. I-Side Pole Crank Arm
11. I-Rod-End Spherical Bearing

Izici Eziyinhloko

• Isakhiwo esimi mpo esiqinile sinciphisa ukujula kokufakwa kwe-switchgear.
• Isiphazamisi se-vacuum esisebenza kahle kakhulu siletha ukushabalala kwe-arc okusheshayo, ukutakula okuhle kakhulu kokufakwa kwe-insulation, nokuphazamiseka okuthembekile kwamaphutha.
• Indlela yokusebenza yasentwasahlobo yamahhala isekela kuze kube10,000 imisebenzi yemishini, ukunciphisa izindleko zokusebenza.
• Uhlelo lokudlulisa oluzinzile luqinisekisa ukusebenza kahle kokuvula nokuvala ngokuthembeka okuphezulu kokusebenza.
• Idizayini engasindi yenza ukufakwa, ukugunyazwa, nokugcinwa kwemishini kube lula.
• Ifanele ukusebenza kokushintsha njalo ekufuneni izinhlelo ze-medium-voltage.
• Ihambisana nezitshalo zikagesi, iziteshi ezincane, izinsiza zezimboni, amabhizinisi ezimayini, namanethiwekhi okusabalalisa izinsiza.

Izicelo Ezijwayelekile

I36kV Indoor High Voltage Circuit Breakerisetshenziswa kabanzi ukuvikela nokulawula amandla kagesi aphakathi:

• Izitshalo zokuphehla amandla
• Iziteshi zikagesi
• Izikhungo zokukhiqiza izimboni
• Imisebenzi yezimayini
• Izitshalo ze-Petrochemical
• Izinhlelo zokusabalalisa amandla ezentengiselwano nengqalasizinda
• Amaphaneli e-switchgear e-Medium-voltage

Imingcele Yezobuchwepheshe

Izinzuzo

• Amandla amahle kakhulu wokuphazamiseka kwesekethe emfishane kumanethiwekhi we-medium-voltage.
• Amandla aphezulu e-dielectric kanye nokululama kokufakwa ngokushesha ngemva kokuphazamiseka kwamanje.
• Izidingo zokulungisa eziphansi zibonga isiphazamisi sevacuum esivalekile kanye nendlela yasentwasahlobo ethuthukisiwe.
• I-footprint ehlangene ivumela ukufakwa emakhabetheni ama-switchgear avinjelwe isikhala.
• Impilo ende yesevisi yemishini nekagesi inciphisa isamba sezindleko zobunikazi.
• Ukusebenza okuthembekile ngaphansi kwezimo zokushintsha njalo.

Kungani Khetha Imikhiqizo Yethu?

Eyethu36kV Indoor High Voltage Circuit Breakerikhiqizwa ngaphansi kwezinqubo eziqinile zokulawula ikhwalithi kusetshenziswa iziphazamisi ze-vacuum ze-premium kanye nezingxenye zemishini ezinembayo. Yonke iyunithi yenza ukuhlolwa kwefekthri okuphelele ngaphambi kokuthunyelwa ukuze kuqinisekiswe ukusebenza kukagesi okuzinzile kanye nokuthembeka kokusebenza kwesikhathi eside.

I-OEM nokulungiselelwa okwenziwe ngendlela oyifisayo kuyatholakala, okuhlanganisa amaza ahlukahlukene akaliwe, ama-voltage okusebenza, ubukhulu bokufakwa, abathintwayo abasizayo, nezixazululo zokumadanisa i-switchgear ukuze kwaneliswe izidingo zephrojekthi ehlukahlukene emhlabeni wonke.

FAQ

1. Isetshenziselwani i-36kV Indoor High Voltage Circuit Breaker?

Iklanyelwe ukuvikela nokulawula amasistimu kagesi we-medium-voltage ngokushintsha umthamo ovamile wamanje, umthamo wamanje ogcwele ngokweqile, kanye nephutha lesiphambeko sesekethe emfushane. Isetshenziswa kakhulu eziteshini ezingaphansi, ezimbonini zikagesi, ezikhungweni zezimboni, emisebenzini yezimayini, nasezintweni zokushintshwa kwamandla kagesi aphakathi nendawo.

2. Yiziphi izinzuzo eziyinhloko ze-vacuum circuit breaker?

Ama-circuit breaker ahlinzeka ngokushabalala kwe-arc ngokushesha, ukutakula okuhle kakhulu kokufakwa kwe-insulation, impilo ende yemishini, izidingo zokunakekelwa okuphansi, ubukhulu obuhlangene, nokuthembeka okuphezulu kokusebenza. Ziyakwazi ukuhambisana nemvelo ngoba azidingi i-insulating oil noma i-SF6 gas.

3. Yiziphi izilinganiso ze-voltage nezamanje ezitholakalayo?

Le modeli isekela ama-voltage akalwe we36kV kanye 40.5kV, ngezinketho zamanje ezilinganiselwe ze1250A, 1600A, kanye no-2000A. Amandla okuphula ahlukene ayatholakala ukuze kuhlangatshezwane nezidingo ezahlukene zokusabalalisa amandla.

4. Ingafakwa kuphi i-36kV Indoor High Voltage Circuit Breaker?

Ilungele i-switchgear yasendlini ephakathi nendawo efakwe eziteshini ezincane, ezimbonini, kumasistimu kagesi asetshenziswayo, izakhiwo zezentengiselwano, amaphrojekthi wamandla avuselelekayo, nasezinsizeni zezimayini.

5. Ingabe i-circuit breaker ingenziwa ngezifiso?

Yebo. I-OEM nezixazululo ezenziwe ngezifiso ziyatholakala, okuhlanganisa isilinganiso samanje, i-voltage esebenzayo, abathintwayo abasizayo, ubukhulu bokufaka, izesekeli zokulawula, nokuhambisana kwe-switchgear ngokuya ngemininingwane yephrojekthi.

6. Ingakanani impilo yesevisi yemishini?

I-circuit breaker ihlinzeka ngempilo yobumishini efinyelela ku10,000 imijikelezo yokusebenza, ukuqinisekisa ukusebenza okuthembekile kwesikhathi eside kuyilapho kunciphisa izindleko zokulungisa nokufaka esikhundleni.

7. Ingabe umkhiqizo uyahambisana namazinga omhlaba?

I-circuit breaker ikhiqizwa futhi ihlolwe ngokuvumelana namazinga e-IEC asebenzayo ama-medium-voltage vacuum circuit breaker. Izitifiketi ezengeziwe kanye nezidingo zobuchwepheshe ezenziwe ngezifiso zinganikezwa ngokusekelwe kumakhasimende noma ukucaciswa kwephrojekthi.

8. Ingabe lesi sihlukanisi sesifunda singahlanganiswa nezinhlelo ezikhona zokushintshwa?

Yebo. Idizayinelwe ukuhlanganisa kalula kumaphaneli e-medium-voltage switchgear. Ithimba lethu lonjiniyela linganikeza nobukhulu obungokwezifiso bokukhweza kanye nokwesekwa kobuchwepheshe ukuze kubuyiselwe imali noma amaphrojekthi amasha wokufaka.
