I-10KV Amorphous Alloy Dry Type Transformer

Model:SBH15-H-(30-2500)/10

I-Anqiang Power ngumkhiqizi waseChina wama-10KV amorphous alloy dry type transformers. Ama-transformer asebenzisa ama-amorphous alloy cores, anciphisa ukulahlekelwa okungalayishiwe ngaphezu kwama-75% uma kuqhathaniswa nama-transformer anensimbi evamile ye-silicon. Imikhiqizo isetshenziswa kabanzi emafektri, izakhiwo, izikole, amabhizinisi ezimboni kanye nezimayini, photovoltaic ukukhiqiza amandla, high-speed ujantshi, iziteshi, kanye nezinye izinhlelo zokusebenza.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformer(SBH15-H-(30-2500)/10) idizayinelwe nge-insulation engacwiliselwa ngamafutha, iqinisekisa ukusebenza okuphephile, ingcuphe yomlilo encishisiwe, nokusebenza kwemvelo okuthuthukisiwe. Yamukela ubuchwepheshe obuphambili be-amorphous alloy core, okunciphisa kakhulu ukulahlekelwa okungalayishiwe futhi ithuthukise ukusebenza kahle kwamandla jikelele ezinhlelweni zesimanje zokusabalalisa amandla.

Uma kuqhathaniswa namayunithi ajwayelekile acwiliswa ngamafutha, iI-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformeriletha ukusebenza okuzinzile ezindaweni ezidinga kakhulu njengezakhiwo zezentengiselwano, izitshalo zezimboni, amasistimu wamandla avuselelekayo, namanethiwekhi kagesi asemadolobheni lapho ukuphepha nokunakekelwa okuphansi kubalulekile.

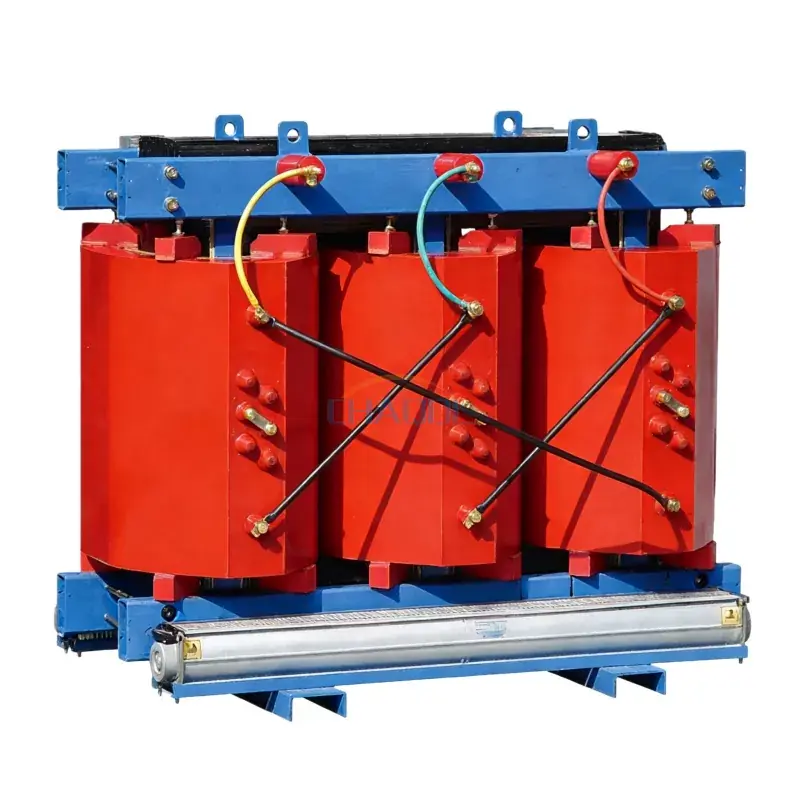

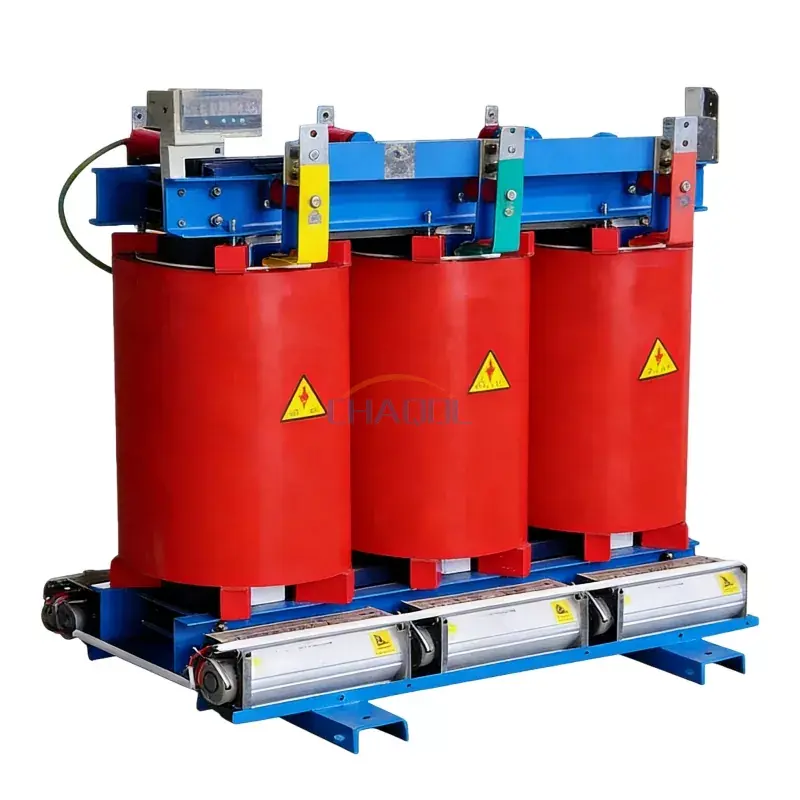

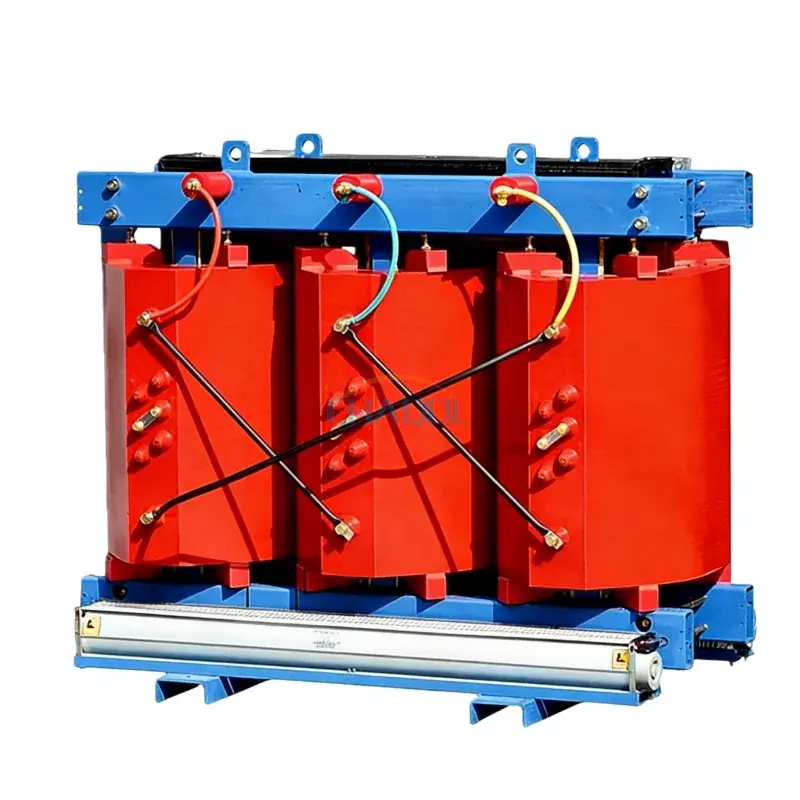

Izithombe zokubonisa umkhiqizo

10KV Amorphous Alloy Dry Type Transformer

Izici ezibalulekile

I-amorphous alloy core eyonga amandla enokulahlekelwa okungalayishiwe okuphansi kakhulu
Isistimu yokufakelwa kohlobo olomile ngaphandle kwe-insulating oil, ithuthukisa ukuphepha komlilo
Umthamo wokulayisha oqinile onezindlela zokupholisa umoya zemvelo neziphoqelelwe
Isakhiwo esihlangene esilungele iziteshi ezincane zasendlini kanye nokufakwa okuvalekile
Ukusebenza komsindo ophansi kwezicelo zasemadolobheni nezohwebo

Isakhiwo salokhuI-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformerivumela ukuchithwa kokushisa okuphumelelayo nokusebenza okuzinzile kwamagnetic, iqinisekisa impilo ende yesevisi kanye nokunciphisa izindleko zokusebenza ngokuhamba kwesikhathi.

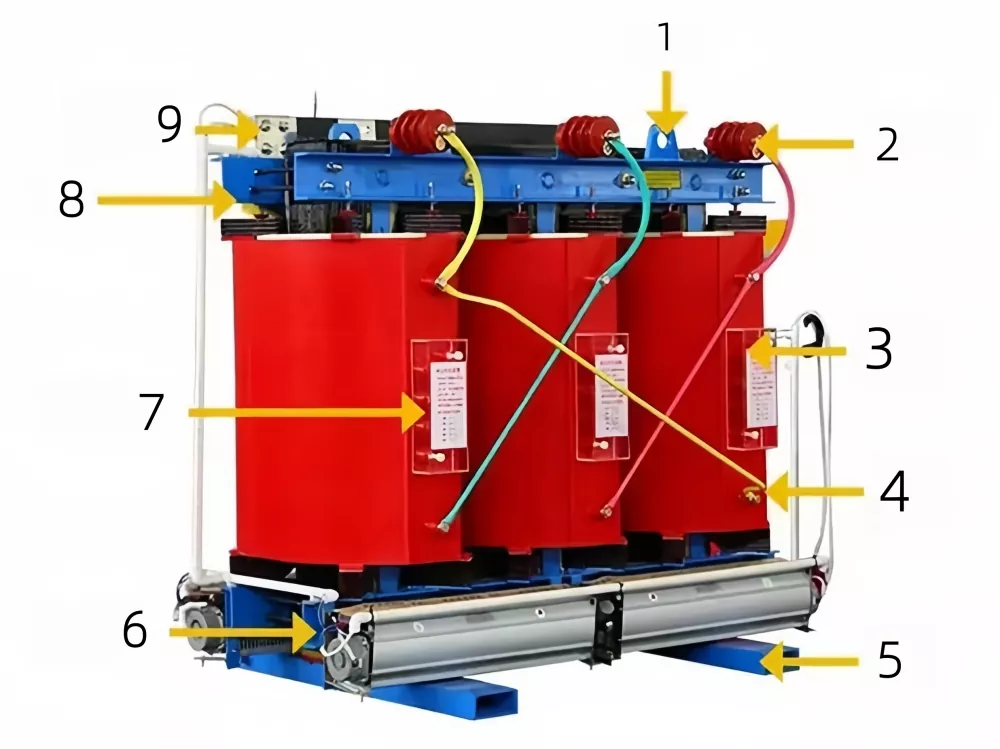

Umdwebo Wokuhlonza Ingxenye

10KV Transformer Components Diagram

Inombolo yomkhiqizo	Igama
1	Izindandatho (i-gymnastics)
2	Itheminali ene-voltage ephezulu
3	Isixhumi sikampompi se-high-voltage
4	High-voltage yokuxhuma induku
5	Isisekelo
6	Isikulufu sokugawula
7	Isixhumi se-high-voltage
8	Izingxenye zokugoqa
9	I-low-voltage ephumayo yebhasi yebhasi

Imingcele Yezobuchwepheshe

Ukusebenza kwe-I-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformerilungiselelwe ukulahlekelwa okuphansi kanye nezinhlelo zokusabalalisa ezisebenza kahle kakhulu. Ithebula elingezansi libonisa ukucaciswa okuyinhloko kukagesi kanye nemishini kububanzi obuhlukene bamandla.

Umthamo olinganiselwe (kVA)	I-voltage elinganiselwe (kV)		Akukho ukulayisha okwamanje (%)	Ukulahlekelwa (W)		I-Impedance voltage (%)	Ubukhulu (mm) Ubude * Ububanzi * Ubude
Umthamo olinganiselwe (kVA)	Ingcindezi ephezulu	Ingcindezi ephansi	Akukho ukulayisha okwamanje (%)	Akukho mthwalo	Layisha	Layisha	Ubukhulu (mm) Ubude * Ububanzi * Ubude
30	20±2*2.5	0.4	1.7	40	600	5.5	10007801060
50			1.3	55	960		10308501110
80			1.0	75	1375		10609001115
100			1.0	90	1650		11109101170
160			0.7	120	2420		12209101235
200			0.7	145	2860		12909201275
250			0.7	165	3355		13609201310
315			0.5	200	4015		13808601415
400			0.5	240	4730		15109001490
500			0.5	290	5665		16409001545
630			0.3	370	6820	6	174011201550
800			0.3	450	8250		207012301595
1000			0.3	530	11330		226013501635
1250			0.2	620	13200		236013501695
1600			0.2	750	15950		253013901775
2000			0.2	900	19410		275014501900
2500			0.2	1080	22220		290015102000

Izimo Zohlelo Lokusebenza

LokhuI-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformerisetshenziswa kakhulu ekusabalaliseni amandla ezimbonini, ezinhlelweni ze-metro, izakhiwo zezentengiselwano, izibhedlela, izikhungo zedatha, neziteshi zamandla avuselelekayo. Isakhiwo sayo sohlobo olomile senza ukuthi ifaneleke ngokukhethekile ezindaweni ezidinga amazinga aphezulu okuphepha komlilo kanye nokuthembeka kokusebenza okuqhubekayo.

Kungani Khetha Le Model?

Ngezinto eziyinhloko ezithuthukisiwe kanye nedizayini yokupholisa ethuthukisiwe, iI-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformerkunciphisa ukulahlekelwa kwamandla kakhulu ngenkathi kugcinwa ukukhishwa kwe-voltage ezinzile. Kuyisixazululo sesikhathi eside esingabizi kakhulu samaphrojekthi agxile ekusebenzeni kahle kwamandla kanye nengqalasizinda yamandla esimeme.

I-Transformer yethu vs Izimbangi Zezimboni

Uma uqhathanisa i-I-I-I-I-I-I-I-I-10KV Amorphous Alloy Dry Type Transformerngezinye izindlela ezijwayelekile zemakethe, umehluko omningi obalulekile ubonakala ngokusebenza kahle, ukuqina, kanye nezindleko zomjikelezo wokuphila.

Into yokuqhathanisa	I-Amorphous Alloy Dry Type Transformer yethu	Traditional Silicon Steel Dry Transformer	I-Transformer Ecwiliswe Ngamafutha (Uhlobo Lwemakethe Oluvamile)
Okubalulekile	I-amorphous alloy low-loss core	I-Silicon steel core	I-Silicon steel core
Ukulahlekelwa Amandla	Ukulahlekelwa okuphansi kakhulu okungalayishiwe	Ukulahlekelwa okuphakathi	Ukulahlekelwa okuphezulu
Ukuphepha	Awekho uwoyela, idizayini engashi	Uhlobo olomile, ukuphepha okusesilinganisweni	Ukuvuza kukawoyela nobungozi bomlilo
Isondlo	Ukunakekelwa okuphansi	Ukunakekela okuphakathi	Ukugcinwa okuphezulu
Ubude bempilo	Impilo ende yesevisi	Maphakathi	Maphakathi

FAQ

Q1: Yini eyenza i-amorphous alloy transformer isebenze kahle?
A: Isakhiwo se-amorphous core sinciphisa kakhulu ukulahlekelwa kwe-hysteresis, okuholela ekusetshenzisweni kwamandla okuphansi okungekho umthwalo uma kuqhathaniswa nama-cores avamile we-transformer.

Q2: Ingabe le transformer ifaneleka ukufakwa endlini?
IMP: Yebo, idizayini yohlobo olomile ihloselwe ngokukhethekile izindawo zasendlini ezifana neziteshi ezincane, izakhiwo zezentengiselwano, nezindawo zezimboni.

Q3: I-transformer idinga kangaki ukunakekelwa?
IMPENDULO: Izidingo zokunakekela ziyingcosana ngenxa yokungabi bikho kukawoyela ovikelayo kanye nesakhiwo esizinzile sesistimu yokushisa eyomile.

Q4: Iyiphi inzuzo enkulu uma iqhathaniswa nama-transformer acwiliswe ngamafutha?
IMP: Iqeda izingozi zomlilo nokuvuza kuyilapho inikeza ukuhambisana okungcono kwemvelo kanye nokufaka kalula.

I-Q5: Ingakwazi ukusingatha izimo zokugcwala ngokweqile?
A: Yebo, iyunithi isekela ukupholisa komoya okuphoqelekile, okuvumela ukusebenza kokugcwala ngokweqile kwesikhashana kufika ku-50% kuye ngokucushwa.
