I-11KV I-Oil Emmersed Transformer

Model:S11-M-(30-2500)

I-Anqiang Power iyifektri yaseChina esebenza ngama-transformer acwiliswe uwoyela ayi-11KV. Amandla alinganisiwe alawa ma-transformer acwiliswe uwoyela angenziwa ngokwezifiso ngokuya ngezidingo zamakhasimende, kusukela ku-30KVA kuya ku-2500KVA. Imikhiqizo ifaka ukusebenza kahle okuphezulu nokulahlekelwa okuncane, okonga ukusetshenziswa okukhulu kukagesi nezindleko zokusebenza. Asetshenziswa kakhulu ekuthuthukisweni kwegridi yamandla, iziteshi ezingaphansi, izimboni ze-petrochemical, kanye namaphrojekthi wokwakha inethiwekhi eyindandatho.

Thumela Uphenyo

Incazelo Yomkhiqizo

II-11KV I-Oil Emmersed Transformer(S11-M-(30-2500)) iyisiguquli sokusabalalisa sezigaba ezintathu esidizayinelwe amanethiwekhi athembekile okusabalalisa amandla angaphandle nangaphakathi. Yamukela isakhiwo esicwiliswe ngokugcwele ngamafutha esisebenza kahle kakhulu sokupholisa, siqinisekisa ukusebenza okuzinzile ngaphansi kwezimo zomthwalo wesikhathi eside.

Yakhelwe ngomgogodla wensimbi ye-silicon egoqiwe ebandayo kanye namawindi ethusi angenawo umoya-mpilo, iletha ukumelana okuqinile kwesiyingi esifushane, ukulahleka kwamandla aphansi, nokusebenza okuhle kakhulu kokulawulwa kwamandla kagesi, okuyenza ifaneleke ezimbonini, ezisetshenziswayo, nasezinhlelweni zamandla zengqalasizinda.

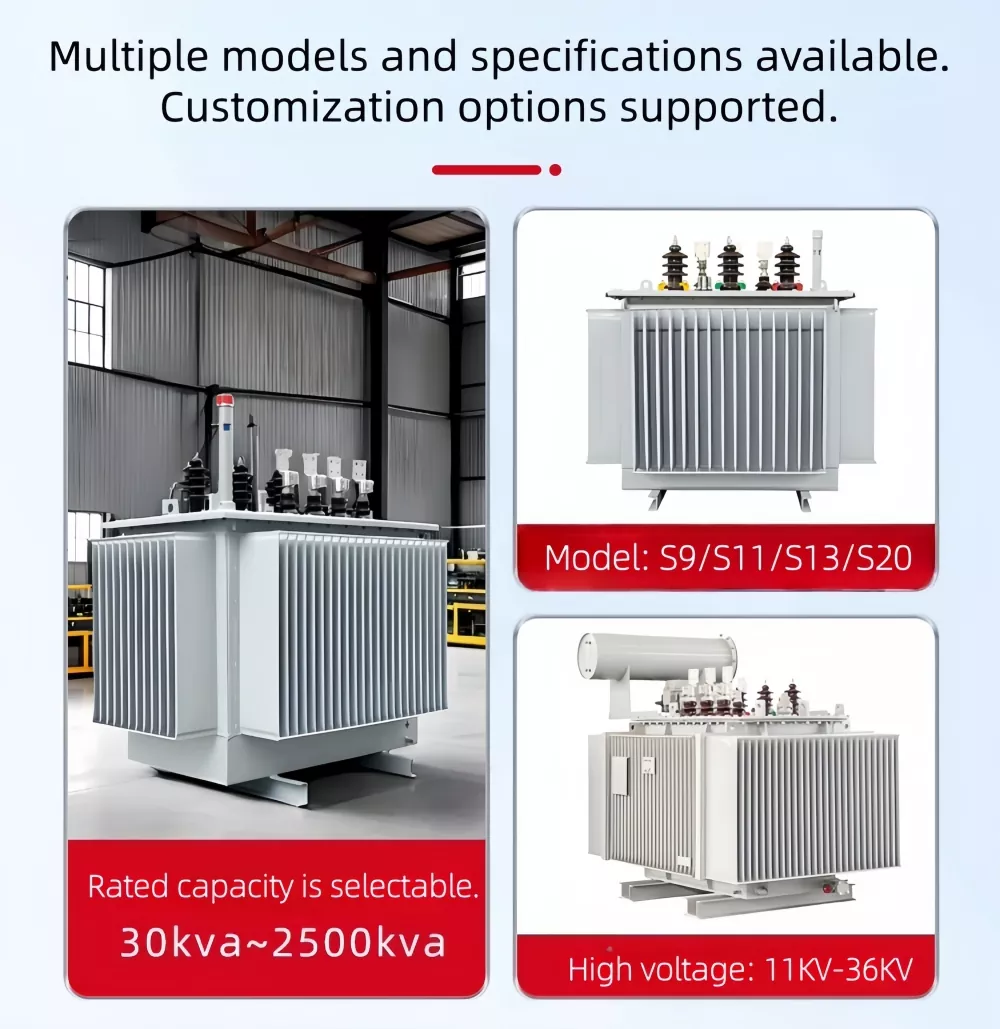

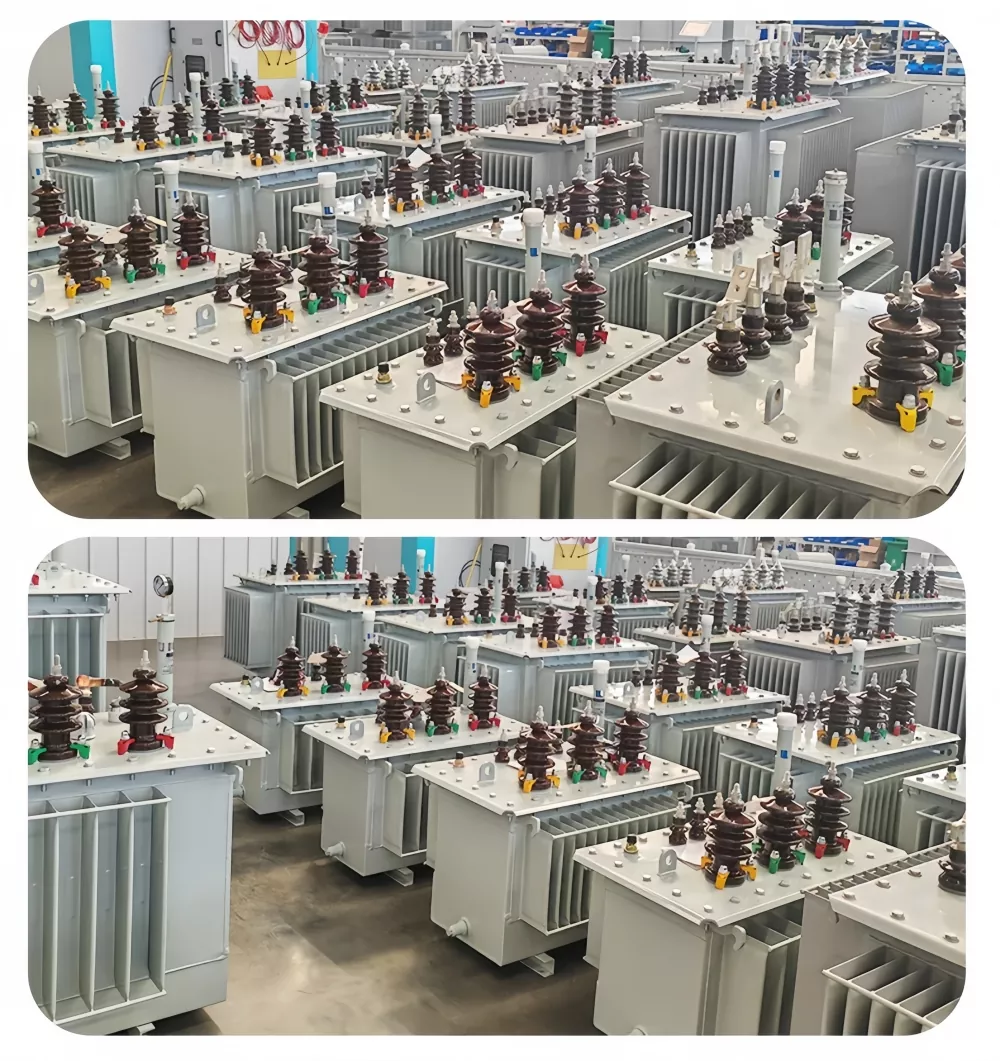

Izithombe zomkhiqizo zangempela

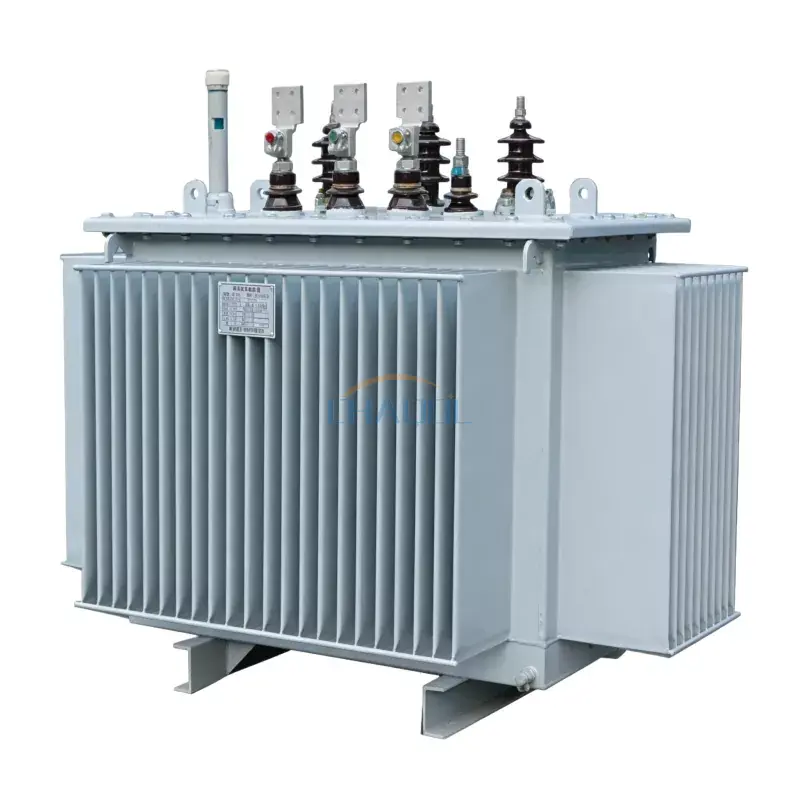

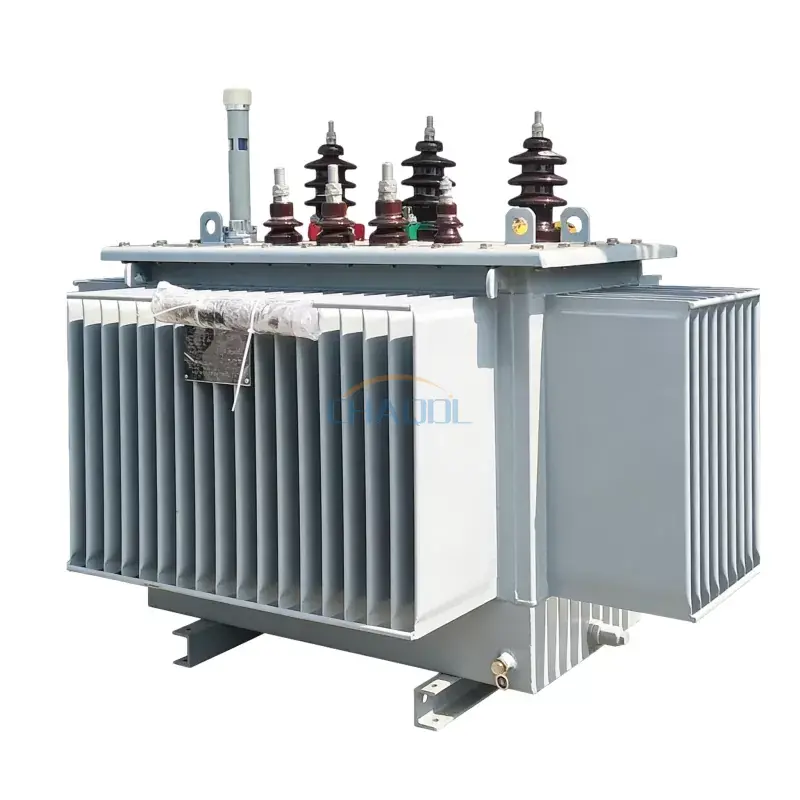

11KV Oil Immersed Transformer

Uhlolojikelele lwesakhiwo somkhiqizo

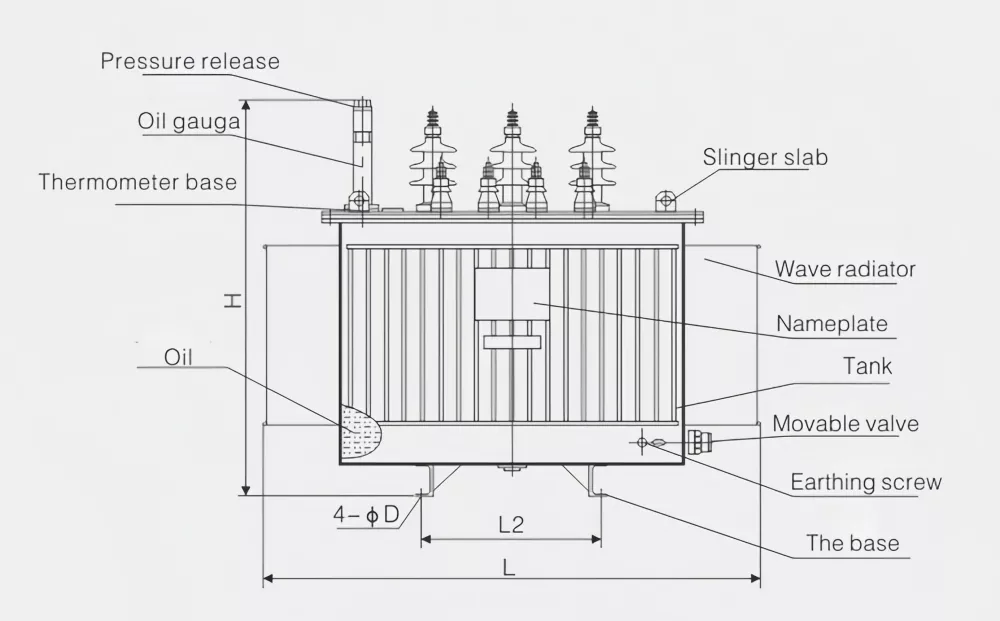

11KV Oil Immersed Transformer Structure

Izici ezibalulekile zobuchwepheshe

Idizayini ecwiliswe uwoyela evalwe ngokugcwele ukuze kuthuthukiswe ukuzinza kokufakwa ngaphakathi
I-silicon steel core egoqelwe ngokubanda enesekethe kazibuthe eyenziwe kahle
Ukusonteka ngethusi elingenawo umoya-mpilo ukuze kuncishiswe ukulahlekelwa ukumelana
Amandla okulayisha ngokweqile namandla aphezulu emishini
Ifanele ukusatshalaliswa kwamandla okude kanye nomthwalo osindayo

Ezinhlelweni zamagridi zanamuhla, iI-11KV I-Oil Emmersed Transformerikhethwa kabanzi ngenxa yebhalansi yayo phakathi kokusebenza kahle kwezindleko kanye nokuthembeka kokusebenza, ikakhulukazi eziteshini ezingaphansi zangaphandle kanye namanethiwekhi amandla ezimboni.

Imininingwane Yezobuchwepheshe

Imingcele yokusebenza yohlobo lwe-S11 10/11KV i-transformer ecwilisiwe yamafutha.

Umthamo olinganiselwe (kVA)	Inhlanganisela yamandla kagesi (kV)		Akukho ukulahlekelwa komthwalo (W)	Ukulahleka komthwalo (W)	Akukho ukulayisha okwamanje (%)	I-impedance ye-Short-circuit (%)
Umthamo olinganiselwe (kVA)	umfutho ophezulu	umfutho ophansi	Akukho ukulahlekelwa komthwalo (W)	Ukulahleka komthwalo (W)	Akukho ukulayisha okwamanje (%)	I-impedance ye-Short-circuit (%)
30	6 6.3 10 10.5 11	0.4	100	630/600	2.3	4.0
50			130	910/870	2.0
63			150	1090/1040	1.9
80			180	1310/1250	1.9
100			200	1580/1500	1.8
125			240	1890/1800	1.7
160			280	2310/2200	1.6
200			340	2730/2600	1.5
250			400	3200/3050	1.4
315			480	3830/3650	1.4
400			570	4520/4300	1.3
500			680	5410/5100	1.2
630			810	6200	1.1	4.5
800			980	7500	1.0
1000			1150	10300	1.0
1250			1360	12800	0.9
1600			1640	14500	0.8
2000			2280	17820	0.6	5.0
2500			2700	20700	0.6	5.0

I-Transformer yethu vs Ezinye izindlela Zomkhakha

Uma kuqhathaniswa nezixazululo ezijwayelekile zemakethe, iI-11KV I-Oil Emmersed Transformerinikeza ukusebenza okulinganiselayo ekusebenzeni kahle, ukuqina, nokulawula izindleko zomjikelezo wokuphila.

Into yokuqhathanisa	I-S11 yethu Egxiliswe Ngamafutha e-Transformer	I-S9 Transformer Ejwayelekile	I-Dry Type Transformer
Okubalulekile	Insimbi ye-silicone egoqwe ngokubanda	Insimbi ye-silicon evamile	Insimbi ye-silicon / epoxy resin
Ukulahlekelwa Amandla	Ukulahlekelwa okungalayishiwe okuphansi	Ukulahlekelwa okuphezulu	Ukulahlekelwa okuphakathi kuya phezulu
Indlela Yokupholisa	Ukupholisa amafutha emvelo	Ukupholisa uwoyela	Ukupholisa umoya
Impilo Yesevisi	Impilo ende yesevisi	Maphakathi	Maphakathi
Isondlo	Izindleko zokunakekela eziphansi	Maphakathi	Ukunakekelwa okuphezulu ezindaweni ezinothuli

Izimo Zohlelo Lokusebenza

II-11KV I-Oil Emmersed Transformerisetshenziswa kabanzi kumagridi kagesi asemaphandleni, amafekthri ezimboni, imisebenzi yezimayini, izakhiwo zezentengiselwano, kanye neziteshi ezincane lapho ukuguqulwa kwamandla kagesi okuzinzile kanye nokusebenza okuqhubekayo kuyadingeka.

FAQ

Q1: Iyiphi inzuzo enkulu ye-transformer ecwiliswe ngamafutha?
A: Ihlinzeka ngokusebenza okungcono kokupholisa, umthamo wokugcwala okuphezulu, nempilo yesevisi ende uma kuqhathaniswa nezinye izinhlobo eziningi zohlobo olomile.

Q2: Ingabe i-11KV Oil Immersed Transformer ilungele ukusetshenziswa ngaphandle?
IMPENDULO: Yebo, yakhelwe kokubili iziteshi ezincane ezingaphakathi nangaphandle ezinokuvikelwa kokufakwa okufanele.

Q3: Uwoyela udinga kangaki ukushintshwa?
A: Ngaphansi kwezimo ezijwayelekile zokusebenza, uwoyela we-transformer ungahlala iminyaka eminingi, kodwa ukuhlolwa ngezikhathi ezithile kuyanconywa esikhundleni sokushintshwa njalo.

I-Q4: Yini eyenza le modeli iphumelele kakhulu kunama-transformer amadala?
A: Idizayini ye-S11 yehlisa ukulahlekelwa okungalayishiwe futhi ithuthukisa ukusebenza kahle kwamandla uma kuqhathaniswa namamodeli amadala ochungechunge lwe-S9.

Q5: Ingabe ingakwazi ukusingatha imithwalo esindayo yezimboni?
A: Yebo, i-transformer yakhelwe ukulayisha okuphezulu kwezinhlelo zokusebenza zezimboni kanye nezinsiza ezinokumelana okuqinile kwe-short-circuit.

Hot Tags: I-11KV Umkhiqizi We-Transformer Egxilisiwe Yamafutha, Umhlinzeki Wenguquko Kagesi Ocwiliswe Ngamafutha, Imboni Yesiguquli Esinamandla Aphezulu
