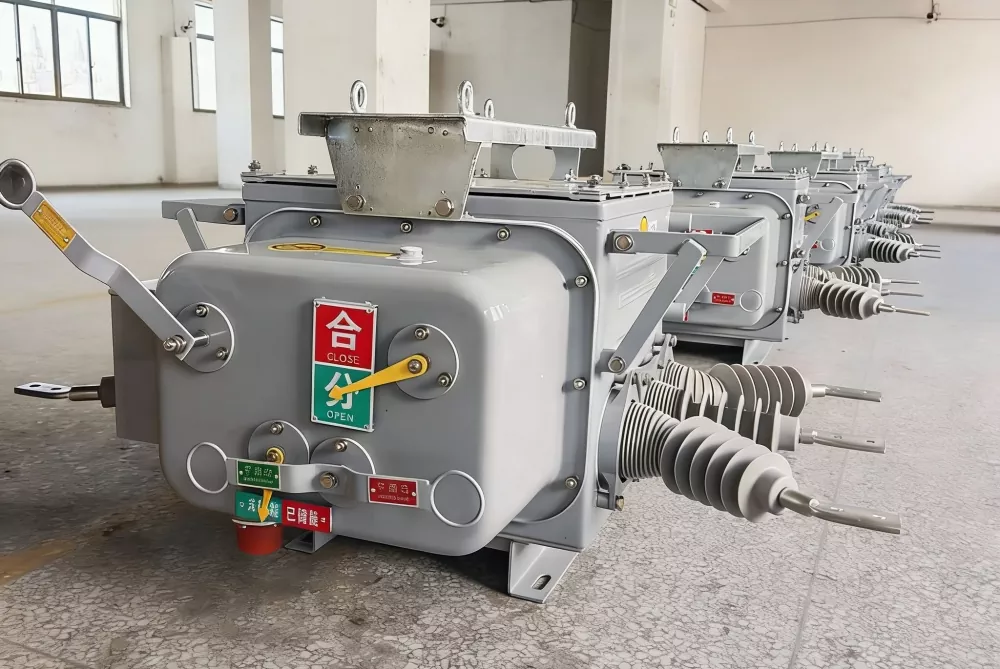

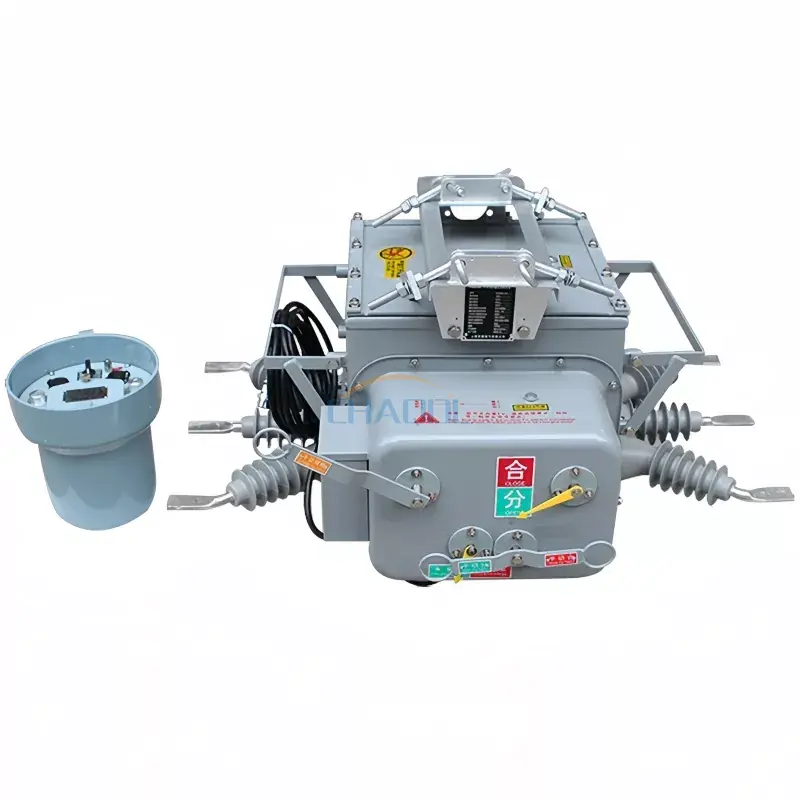

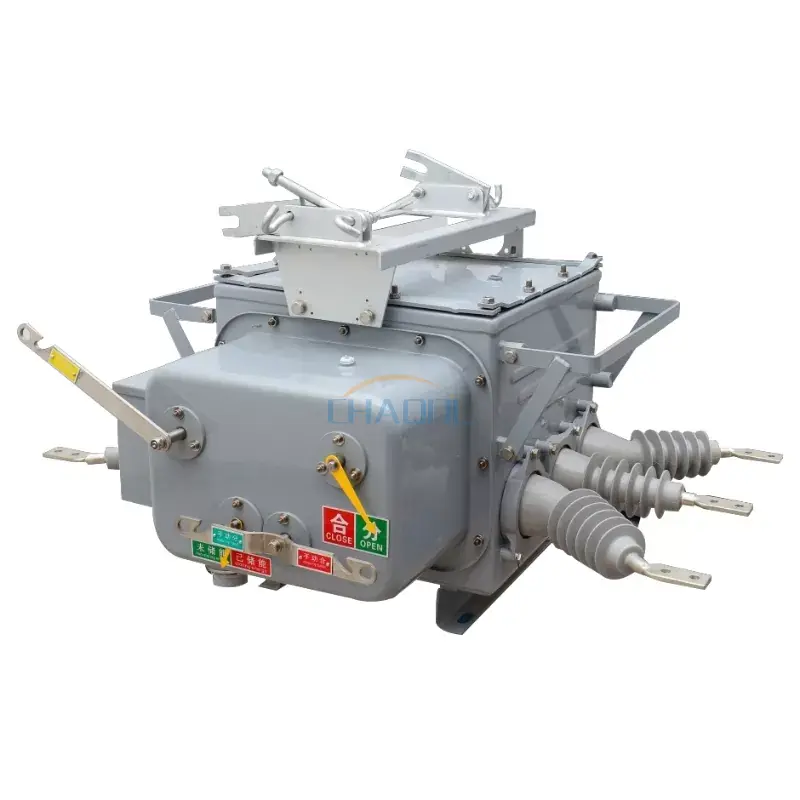

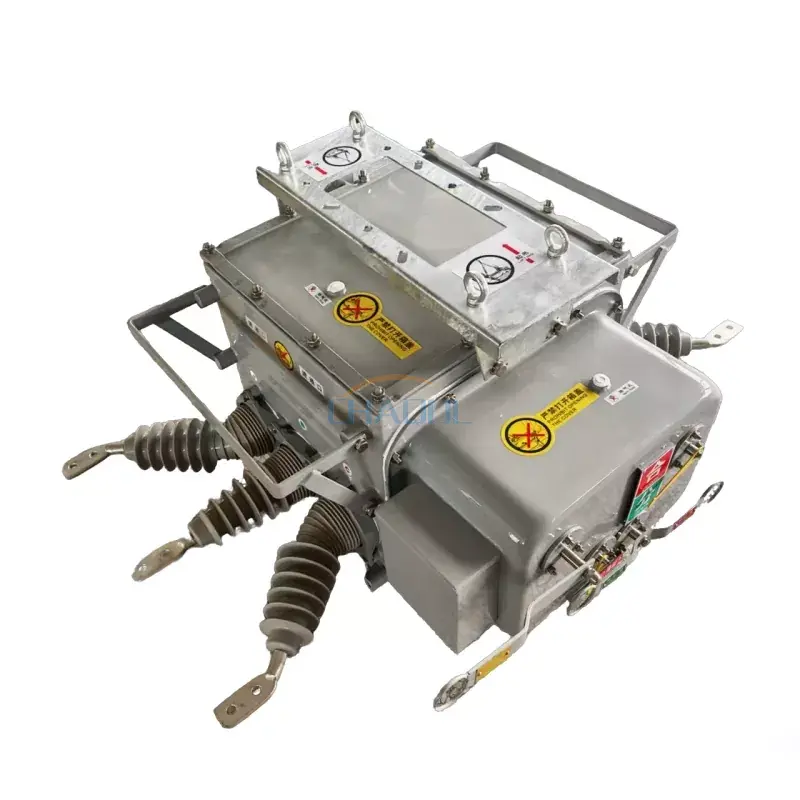

12KV Isigxobo Esingaphandle Esigibele Isekhethi

Model:ZW20-12F

I-Anqiang Power ngumkhiqizi waseShayina wama-12kV ama-circuit breaker agxunyekwe ngaphandle. Le mpahla yangaphandle yokusabalalisa amandla afakwe esigxotsheni ine-voltage elinganiselwe engu-12kV futhi isebenza ngezigaba ezintathu ze-AC 50Hz. Inezici ezinhle kakhulu zokuvala kabusha uma isetshenziswa nesilawuli, ihlangabezana nezidingo zamasistimu ezishintshayo ezisabalalisa. Ngokuyinhloko isetshenziselwa ukuvula nokuvala amaza okulayisha kanye namaza ahamba kancane ezinhlelweni zamandla angu-10kV, futhi isetshenziswa eziteshini ezincane nasezinhlelweni zokusabalalisa amabhizinisi ezimboni nasezimayini.

Thumela Uphenyo

Incazelo Yomkhiqizo

Amandla Anqiangyethula uchungechunge lwe-ZW20-12F, isizukulwane esilandelayoI-12KV yangaphandle egibele i-circuit breakeryakhelwe amasistimu wokusabalalisa ngaphezulu kwezigaba ezintathu ze-AC 50Hz. Iklanywe ngobuchwepheshe obuthuthukisiwe bokuphazamiseka kwe-vacuum kanye nendawo ebiyelwe ngegesi eyi-SF6 (idizayini ye-gauge eyiziro), lesi sinqamuli sihlanganisa kalula imisebenzi ye-vacuum circuit breaker, i-recloser, ne-sectionalizer. Kungakhathaliseki ukuthi usebenzisa inethiwekhi yokufakwa kukagesi yasemaphandleni, isistimu yokusabalalisa ipaki yezimboni, noma iphrojekthi ezenzakalelayo yegridi ehlakaniphile, i-ZW20-12F iletha ukuvikelwa kwamaphutha okuthembekile namandla okulawula kude.

I-ZW20-12F vs I-Traditional Outdoor Breaker

I-ZW20-12F Ibhulaki Langaphandle

Idizayini Ebekwe Ngesigxobo Ethuthukisiwe

✓ I-I-SF6 gas zero gauge pressure– Iphephile & eco-friendly
✓ Isixhumi sendiza yezintambo zesibili- Ukuhlanganiswa kwesilawuli okulula
✓ Isakhiwo esivaliwe esingenakulungiswa
✓ Yakhelwe izinhlelo ezizenzakalelayo zokusabalalisa (DA).

Traditional Breaker

I-Conventional Oil/SF6 Breaker

✓ Idinga ukunakekelwa ngezikhathi ezithile
✓ Ukusebenza kwengcindezi yegesi ephezulu
✓ Izintambo zokulawula ezinobuningi
✓ Ukusebenza okukhawulelwe kokuvala kabusha

📍 Umhlahlandlela Wohlelo Lokusebenza Nokukhethwa: Izimo zomhlaba wangempela

✅ Isimo 1: 10kV Rural Electrification Network (Olayini Abaphezulu)
SebenzisaZW20-12Fnjengethuluzi eliyinhloko lokuvikela emigqeni yegatsha. Ngesilawuli sokuvala kabusha esizenzakalelayo, sisula amaphutha esikhashana futhi sinciphise isikhathi sokucisha. Isixhumi sezindiza senza izintambo zenkundla zibe lula.

✅ Isimo sesi-2: Uhlelo Lokusabalalisa Lwepaki Yezimboni
I-ZW20-12F iphatha u-630/1000A wokulayisha wamanje futhi iphula amaphutha e-short-circuit kufika ku-25kA. Idizayini yayo engenakulungiswa inciphisa izindleko zokusebenza zokusabalalisa amandla embonini.

✅ Isimo sesi-3: I-Smart Grid Automation (I-Feeder Automation)
Uma ibhangqwe nesilawuli esizenzakalelayo sokuphakelayo, i-ZW20-12F isekela ukuqapha okukude, ukuhlukaniswa kwamaphutha, nokubuyiselwa kwesevisi - ilungele amaphrojekthi azenzakalelayo wokusabalalisa.

📋 Ukucaciswa Kwezobuchwepheshe - Uhlobo oluhloliwe (GB/T 1984 / IEC 62271-100)

Iphrojekthi	Inani lepharamitha
I-voltage elinganiselwe	12kV
Ikalwe imvamisa	50Hz
Ikalwe okwamanje	630/1000 A
Ilinganiswe ngokuphuka kwesiyingi esifushane	20/25 kA
Isilinganiso esiphakeme sokumelana namanje	50/63 kA
Ilinganiselwe isikhathi esifushane ukumelana nokwamanje	20/25 kA
Ilinganiselwe ukwenza i-short-circuit yamanje	50/63 kA
Kukalwe ukulandelana kokusebenza	Vula - imizuzwana engu-0.3 - Vala - imizuzwana engu-180 - Vula - Vala
Impilo yemishini	Izikhathi eziyi-10,000
Ilinganiselwe imijikelezo yamanje yokuphuka	Izikhathi eziyi-10,000
Ilinganiswe ngomthamo wokuphuka kwesiyingi esifushane	izikhathi ezingu-30
I-SF6 elinganiselwe ingcindezi yegesi	0Mpa

📐 Ubukhulu bomkhiqizo nokuhlukaniswa kwengxenye

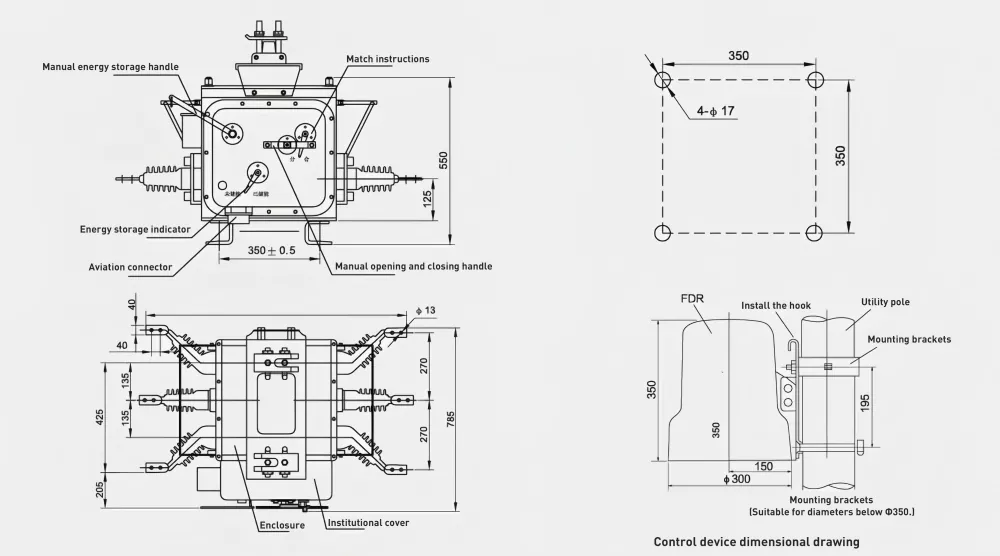

ZW20-12F outdoor pole mounted circuit breaker dimensions

I-ZW20-12F Isakhiwo Semishini– 1. Isiphazamisi sevacuum, 2. Indlela yokusebenza yasentwasahlobo, 3. Ama-transformer amanje, 4. Indawo ebiyelwe i-SF6, 5. Isixhumi sezindiza (isilawuli sesibili), 6. Isibambo sokusebenza semanuwali, 7. Itheminali yokubeka phansi, 8. Ubakaki ofaka amapulangwe, 9. Igumbi lokugwedla.

I-ZW20-12F ifaka i-acompact, design engasindiegibela ngqo ezigxotsheni zikakhonkolo. Iisixhumi sezindizayenza izintambo zenkambu zibe lula phakathi kwe-breaker nesilawuli esihlakaniphile, kunciphisa kakhulu isikhathi sokufaka uma kuqhathaniswa namabhulokhi avamile wetheminali.

🏭 Kungani Amandla e-Anqiang? - Umlingani wakho othembekile wama-breaker circuit wangaphandle

I-Factory ngqo- Akekho ophakathi, intengo engcono nesikhathi sokuhola (izinsuku eziyi-15-25).
Uhlobo luhloliwe- I-GB/T 1984, IEC 62271-100, iqinisekiswe ngokugcwele.
Ukwenza ngendlela oyifisayo kulungile- Ukuhlanganiswa kwesilawuli, izilinganiso zamanje ezikhethekile, uphawu lwe-OEM.
Izinkomba zomhlaba- Ihlinzekwa eNingizimu-mpumalanga ye-Asia, Middle East, Africa, South America.

📌 Izinkomba zephrojekthi zangempela:

✅ I-I-Indonesia- Amayunithi angama-500+ e-ZW20-12F atshalwe kuphrojekthi yokufakwa kukagesi yasemaphandleni kuyo yonke i-Java neSumatra (2023–2025).

✅ Philippines– 300 amasethi e-ZW20-12F anezilawuli zokuvala kabusha ezizenzakalelayo ezinikezwe i-NGCP ukuze kuthuthukiswe i-10kV feeder.

imibuzo ejwayelekile ukubuzwa

I-Q1: Uyini umehluko phakathi kwe-ZW20-12F nama-breaker endabuko angaphandle?
A: I-ZW20-12F ifaka idizayini ye-SF6 yegesi enguziro gauge yokucindezela (ephephile futhi i-eco-friendly), isixhumi sezindiza sokuhlanganiswa kwesilawuli okulula, kanye nesakhiwo esivaliwe esingenakulungiswa. Iziqephu zendabuko zidinga ukunakekelwa ngezikhathi ezithile futhi zinezintambo eziyinkimbinkimbi.

Q2: Ingabe lesi sinqamuli singasetshenziswa nesilawuli sokuvala kabusha esizenzakalelayo?
A: Yebo. I-ZW20-12F yakhelwe ukusabalalisa okuzenzakalelayo. Uma ibhangqwe nesilawuli esivala kabusha, sisekela ukusula amaphutha okuzenzakalelayo kanye nokulandelana kokuvala kabusha okuningi (Vula - 0.3s - Vala - 180s - Vula - Vala).

Q3: Iyini impilo yobumishini ye-ZW20-12F?
A: 10,000 imisebenzi yemishini ngaphansi kwezimo zesevisi ezijwayelekile, sibonga indlela yokusebenza yasentwasahlobo eqinile nesiphazamisi sevacuum esivaliwe.

Q4: Ingabe i-breaker ayinakulungiswa? Kusho ukuthini lokho?
A: Yebo. Igesi ye-SF6 ivalwe ku-zero gauge pressure, okuqeda isidingo sokugcwaliswa kabusha kwegesi ngezikhathi ezithile. Isiphazamisi se-vacuum asidingi ukulungiswa kokuxhumana. Lokhu kunciphisa kakhulu izindleko zokusebenza.

Q5: Ingabe uhlinzeka ngesevisi ye-OEM/ODM?
A: Nakanjani. Sinikezela ngebhrendi yangokwezifiso, ukulungiselelwa kwezilinganiso ezithile zamanje, nokuhlanganiswa kwesilawuli. Amasampula okukhiqizwa kwangaphambili atholakala ngesikhathi sokuhola sezinsuku ezingu-7-10.

📩 Udinga isixazululo esenziwe ngokwezifiso noma uhlu lwamanani?

Sitshele isilinganiso sakho samanje, izimfuneko zesilawuli, kanye nenani eliqondiwe. Sizophendula engakapheli amahora angama-24.

Cela ikhotheshini →

I-imeyili: sales@anqiangpower.com | WhatsApp: 8615057324888
