I-33KV Ikhefu Lesekhethi Yangaphandle Ne-Othomathikhi yokuvala kabusha

II-33KV Ikhefu Lesekhethi Yangaphandle Ne-Othomathikhi yokuvala kabusha, eyaziwa nangokuthi i-ZW32-40.5 Outdoor High Voltage Vacuum Circuit Breaker, yakhelwe amanethiwekhi okusabalalisa ngaphezulu kwe-voltage emaphakathi, iziteshi ezincane, amagridi ezinsiza, kanye nezinhlelo zokusabalalisa amandla ahlakaniphile. Isetshenziselwa ngokuyinhloko ukushintsha amaza okulayisha, ukuphazamisa imisinga yokugcwala ngokweqile, nokususa amaphutha esekethe emfushane kuyilapho kuqinisekisa ukuqhubeka kokunikezwa kwamandla okuthembekile.

Ifakwe isistimu yokuphazamiseka kwe-vacuum ethuthukisiwe kanye nokusebenza okuhlakaniphile kokuvala kabusha okuzenzakalelayo, lesi sihlukanisi sesekhethi sangaphandle singabuyisela amandla ngokuzenzakalelayo ngemva kwamaphutha esikhashana, sithuthukise kakhulu ukwethembeka kwegridi futhi sinciphise ubude bokucisha. Isakhiwo sayo esihlangene, idizayini engasindi, nokukhuthazela okuphezulu kwemishini kuyenza ibe yisixazululo esifanelekile samaphrojekthi wesimanje wokusabalalisa ezishintshayo.

I-ZW32-40.5 breaker ifaneleka ku-33KV kanye nezinhlelo zamandla ze-40.5KV futhi isekela ukusebenza kwendawo, isilawuli kude, ukuqapha amaphutha, nokuphathwa kwenethiwekhi yokusabalalisa okusekelwe ekuxhumaneni. Isetshenziswa kakhulu izinkampani ezisizayo, izikhungo zezimboni, amaphrojekthi wamandla avuselelekayo, kanye namanethiwekhi okufaka ugesi asemaphandleni emhlabeni jikelele.

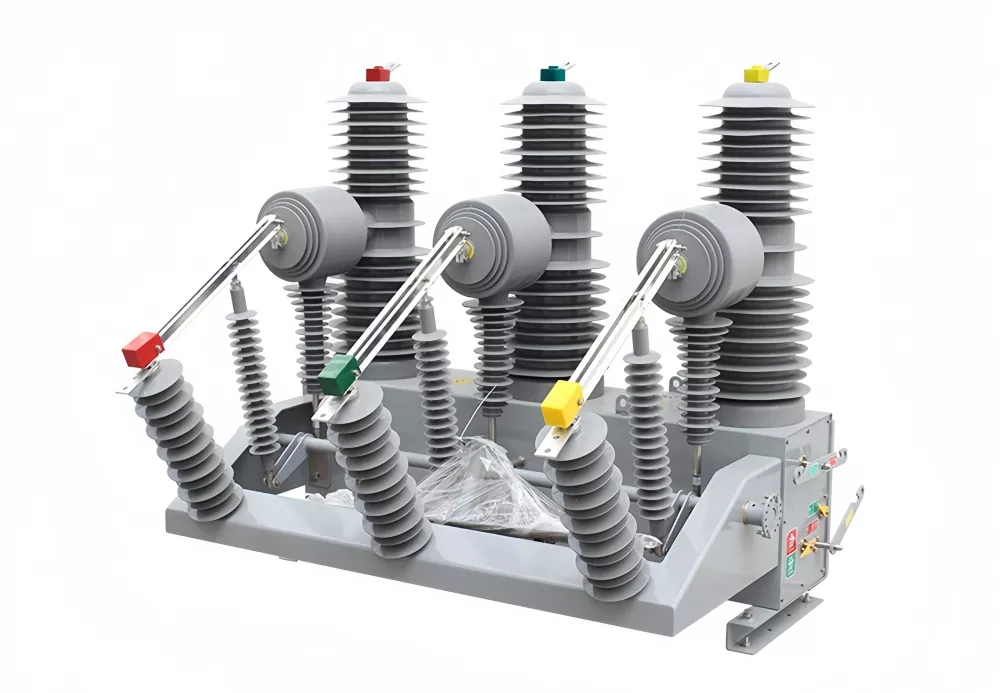

Umdwebo Wokubukeka Komkhiqizo

Imingcele Yezobuchwepheshe

Izici Eziyinhloko

• Umsebenzi wokuvala kabusha okuzenzakalelayo ohlanganisiwe uthuthukisa ukwethembeka kokunikezwa kwamandla futhi unciphise isikhathi sokucisha.
• Ubuchwepheshe bokucisha i-arc ye-vacuum bunikeza ukusebenza okuhle kakhulu kokuphazamisa kanye nempilo ende yesevisi.
• Ifanele amanethiwekhi okusabalalisa ama-33KV kanye ne-40.5KV kanye nezinhlelo zokusebenza zesiteshi esincane.
• Umthamo omkhulu wokuphuka kwesekethe emfishane ufike ku-31.5KA.
• Isakhiwo esihlangene nomklamo ongasindi kwenza ukuthutha nokufaka kube lula.
• Isekela ukusebenza kwendawo, isilawuli kude, i-telemetry, kanye nezinhlelo ezizenzakalelayo zokusabalalisa.
• Ukwakhiwa kwezigxobo ezivaliwe kuthuthukisa ukusebenza kwe-insulation kanye nokumelana nemvelo.
• Isiphazamisi sevacuum esinganakekeli sinciphisa izindleko zokusebenza kuwo wonke umjikelezo wempilo wemishini.
• Ihambisana ne-SCADA, igridi ehlakaniphile, nezinhlelo zokuqapha inethiwekhi yezinsiza.
• Impilo ende yemishini yokusebenza okungafika kweziyi-10,000 iqinisekisa ukusebenza okuthembekile kwesikhathi eside.

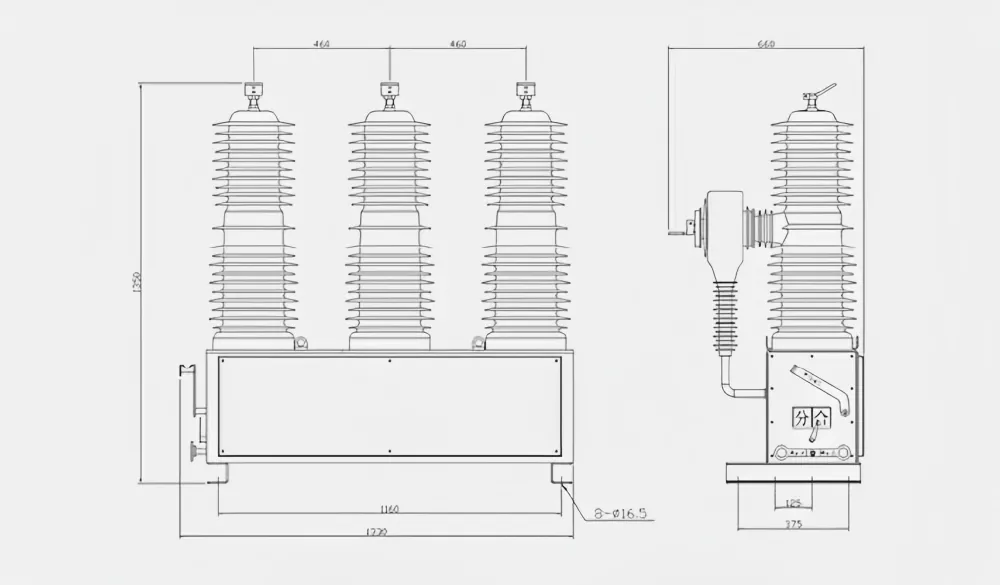

Umdwebo wobukhulu bomkhiqizo

Ukwakheka Komkhiqizo kanye Nomgomo Wokusebenza

II-33KV Ikhefu Lesekhethi Yangaphandle Ne-Othomathikhi yokuvala kabushaikakhulukazi iqukethe isigxobo esihlanganisiwe esivalekile, isiphazamisi se-vacuum, i-transformer yamanje, indlela yokusebenza, isakhiwo sokusekela esivalekile, kanye nendawo ebiyelwe ukumelana nesimo sezulu. Ikhabhinethi ikhiqizwa ngensimbi yekhwalithi ephezulu ukuze inikeze ukuvikeleka okuhle kakhulu kwemishini kanye nokuqina kwangaphandle kwesikhathi eside.

Ama-transformer amanje angalungiswa ngokuya ngezidingo zephrojekthi zokulinganisa, ukuqapha, nokuvikela izinhlelo zokusebenza. Uma iphutha lenzeka emugqeni wokusabalalisa, isilawuli esihlakaniphile sithola ngokushesha izimo ezingavamile futhi siyala isinqamuli sesekethe sevacuum ukuthi siphazamise amandla amanje. Emaphutha esikhashana afana nokushaya kombani noma ukuphazamiseka kolayini wesikhashana, umsebenzi wokuvala kabusha okuzenzakalelayo ubuyisela amandla ngokuzenzakalela ngemva kwesikhawu esisethiwe, kuncishiswe ukuphazamiseka kwesevisi.

Ihlanganiswe nesilawuli esihlakaniphile, i-breaker isekela imisebenzi yokushintsha yendawo kanye nokuqapha nokulawula okukude ngokusebenzisa izixhumanisi zokuxhumana. Izindlela zokuxhumana zingase zihlanganise amanethiwekhi e-fiber optic, izintambo zokuxhumana, i-GPRS, i-CDMA, i-GSM, noma ezinye izinhlelo zokuxhumana eziwusizo, okuyenza ibe yisixazululo esikahle segridi ehlakaniphile kanye namaphrojekthi azenzakalelayo wokusabalalisa.

Izinhlelo zokusebenza

LokhuI-33KV Ikhefu Lesekhethi Yangaphandle Ne-Othomathikhi yokuvala kabushaisetshenziswa kakhulu ezinhlelweni zokudluliswa kwamandla kanye nokusabalalisa lapho ukuhlukaniswa kwephutha okuzenzakalelayo nokubuyiselwa kwesevisi kubalulekile.

• Amanethiwekhi okusabalalisa amandla ensiza
• Imigqa yokusabalalisa ngaphezulu
• Iziteshi zikagesi
• Amaphrojekthi wegridi ehlakaniphile
• Izitshalo zamandla avuselelekayo
• Izinsiza zezimboni nezimayini
• Izinhlelo zokufaka ugesi emadolobheni nasezindaweni zasemakhaya
• Amanethiwekhi kagesi wesitimela nezokuthutha

imibuzo ejwayelekile ukubuzwa

Iyini i-automatic recloser circuit breaker?

Isihlukanisi sesekhethi esivala kabusha esizenzakalelayo singabuyisela amandla ngokuzenzakalelayo ngemva kokuba kwenzeke amaphutha esikhashana emugqeni wokusabalalisa. Lokhu kuthuthukisa kakhulu ukuqhubeka kokunikezwa kwamandla futhi kunciphisa ubude bokucisha kubasebenzisi bokugcina.

Yiziphi izinzuzo ze-vacuum circuit breaker?

Ama-circuit breaker ahlinzeka ngokushabalala kwe-arc ngokushesha, ukwethembeka okuphezulu, izidingo zokunakekelwa okuphansi, impilo ende yesevisi, nokusebenza okunobungani kwemvelo ngaphandle kukawoyela noma igesi ye-SF6.

Ingabe lesi sinqamuli singahlanganiswa nesistimu yegridi ehlakaniphile?

Yebo. I-breaker isekela ukuqapha okukude, ukusebenza okukude, ukuxilongwa kwephutha, nezindawo zokuxhumana ezingahlanganiswa ku-SCADA kanye nezinhlelo zegridi ezizenzakalelayo ezihlakaniphile.

Isetshenziswa kuphi i-ZW32-40.5 vacuum circuit breaker evame ukusetshenziswa?

Ivamise ukusetshenziswa eziteshini ezisetshenziswayo, amanethiwekhi okusabalalisa phezulu, amaphrojekthi wamandla avuselelekayo, izinhlelo zamandla ezimboni, nengqalasizinda yokufakwa kukagesi ezindaweni zasemakhaya.

Kungani ukhetha isivala kabusha esizenzakalelayo sangaphandle esingu-33KV?

I-33KV yokuvala kabusha okuzenzakalelayo kwangaphandle ithuthukisa ukwethembeka kwenethiwekhi, inciphisa izikhathi zokucisha, yehlisa izindleko zokulungisa, futhi ithuthukisa ukusebenza kahle kokulawulwa kwamaphutha kumasistimu esimanje okusabalalisa amandla.
