I-66KV Tank Type SF6 Circuit Breaker

I-66KV Tank Type SF6 Circuit Breaker (Imodeli: LW36-66) iyisihlukanisi sesekethe sangaphandle esinamandla kagesi aphezulu esidizayinelwe ukudluliswa kwamandla ka-66KV namasistimu okusabalalisa anefrikhwensi elinganiselwe ye-50Hz AC. Isebenzisa igesi ye-SF6 njengokubili i-insulating ne-arc-extinguishing medium, ihlinzeka ngokushintsha okuthembekile, ukuphazamiseka kwamaphutha, nokuvikela iziteshi ezincane, amagridi kagesi asetshenziswayo, izinsiza zezimboni, namaphrojekthi wamandla avuselelekayo. I-circuit breaker ingasetshenziswa futhi njenge-break tie yebhasi kanye nezinhlelo zokusebenza zokushintsha ibhange le-capacitor.

Idizayinelwe ngesakhiwo sethangi eliphilayo elihlangene, i-LW36-66 inciphisa indawo yokufaka kuyilapho iletha ukusebenza okuvelele kukagesi kanye nokwethembeka kokusebenza kwesikhathi eside. Indlela yayo yokusebenza yasentwasahlobo ethuthukisiwe, izinga eliphansi lokuvuza kwe-SF6, kanye nomklamo ovumelana nokulungisa kuyenza ibe yisixazululo esifanelekile samanethiwekhi anamuhla anamandla kagesi aphezulu adinga ukusebenza okuphephile, okuphumelelayo, nokuzinzile.

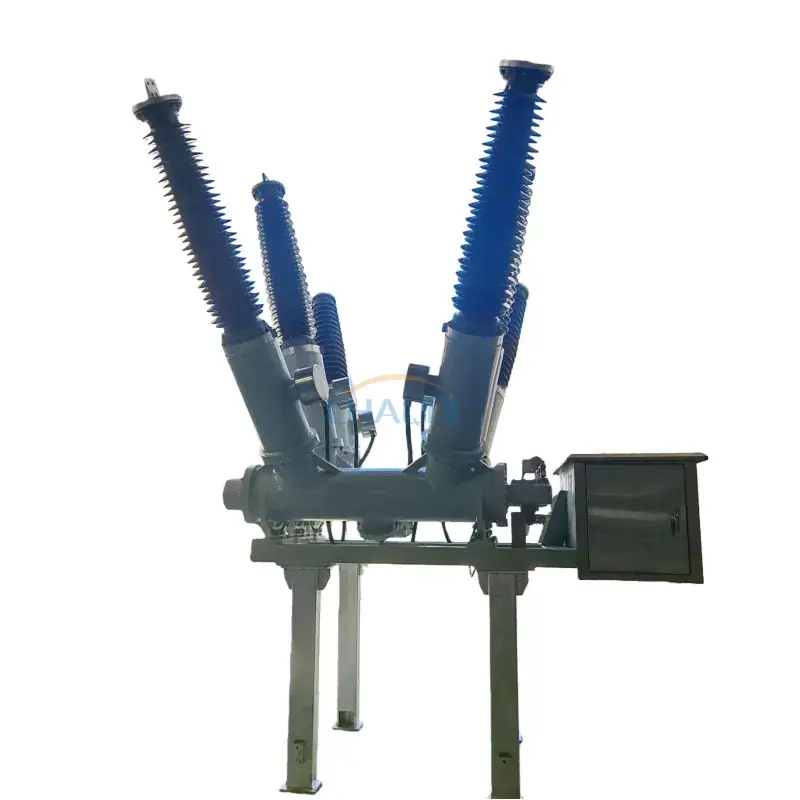

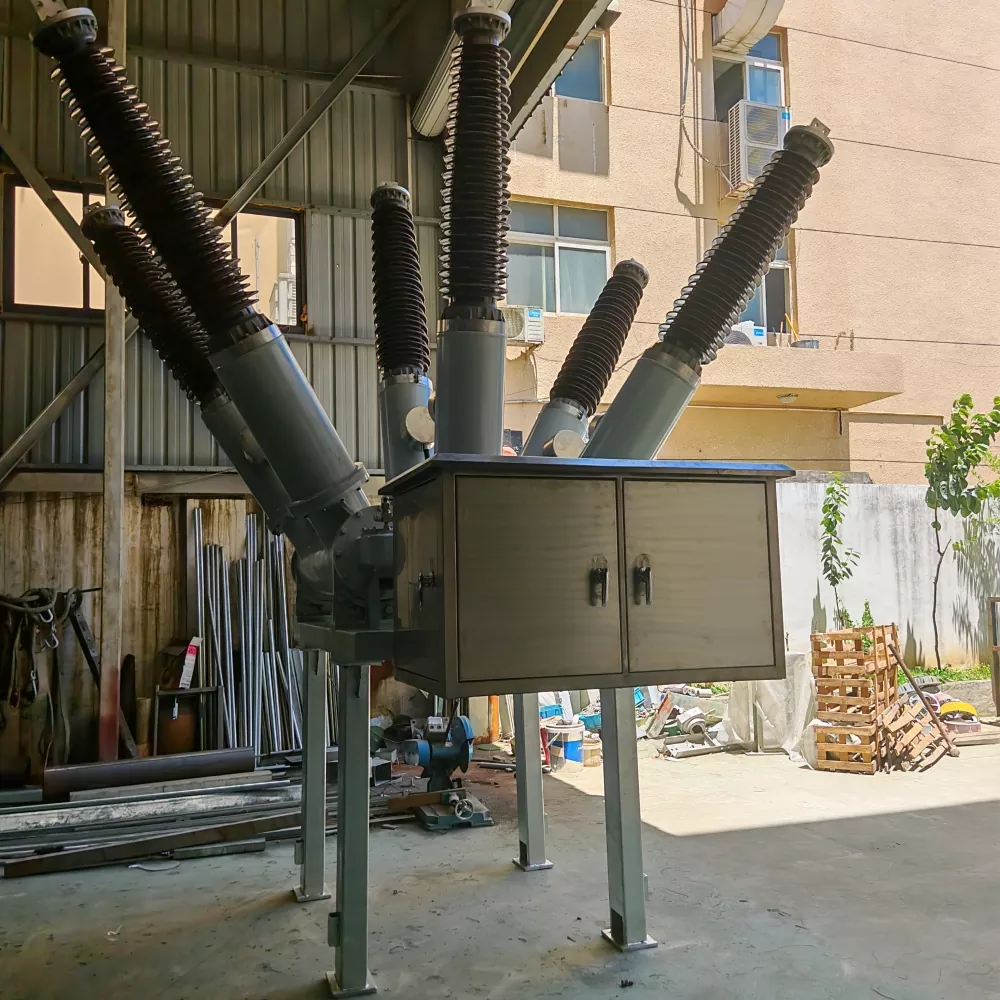

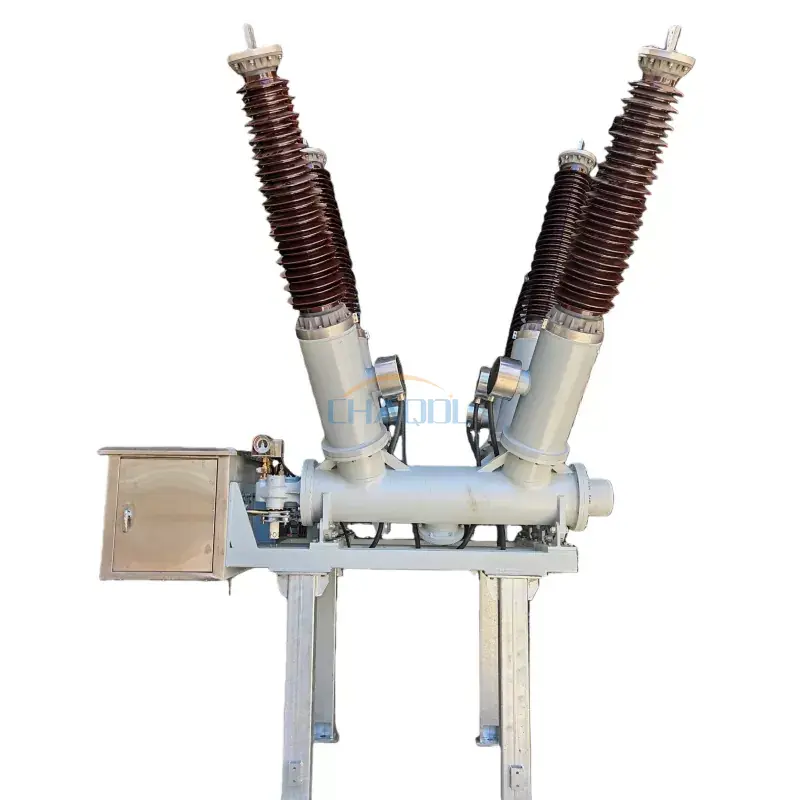

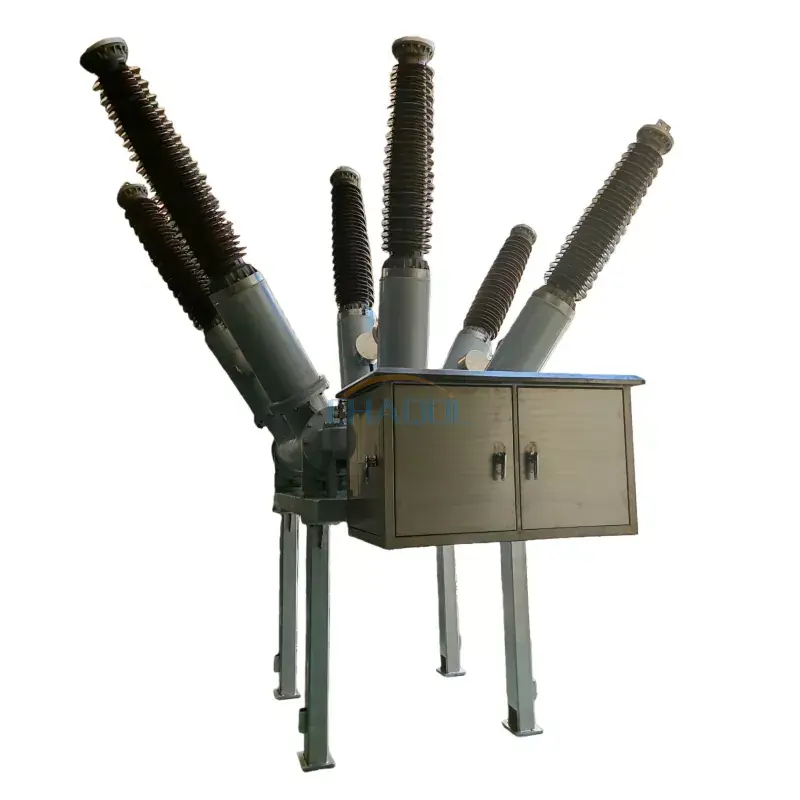

Isithombe Sangempela Somkhiqizo

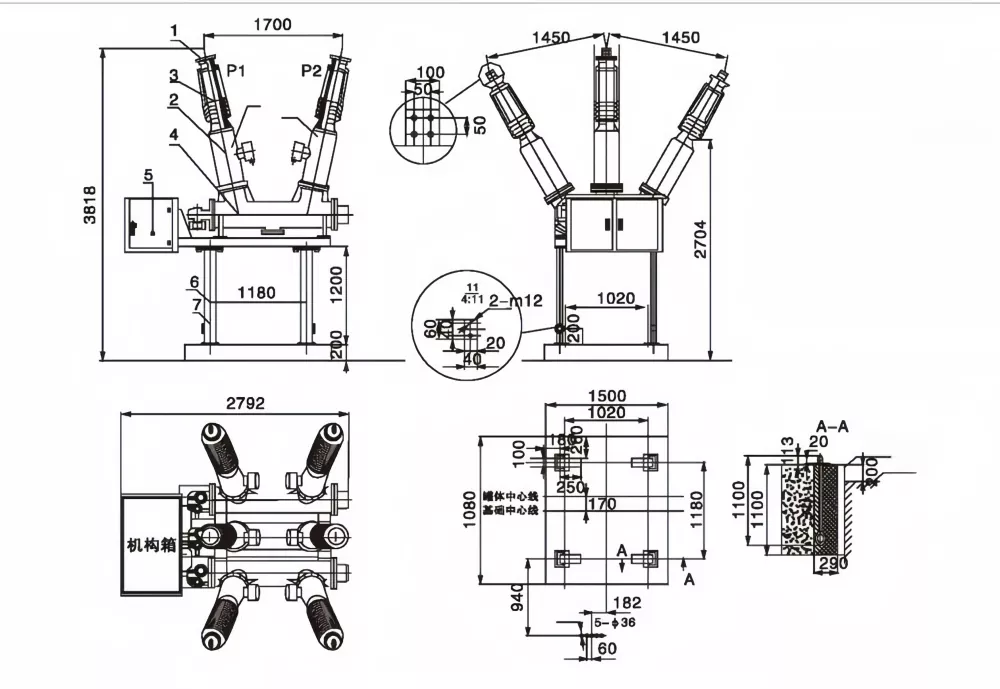

Umdwebo wobukhulu bomkhiqizo

Isakhiwo Esiyinhloko

• Ibhulokhi yetheminali yesigaba esisodwa ye-aluminium ecwecwe ngesiliva yokuqhuba kahle kukagesi.
• I-porcelain enamandla amakhulu ephumayo ephumayo enokusebenza okuphezulu kokufakelwa.
• I-transformer yamanje eyakhelwe ngaphakathi (CT) ukuze ivikeleke futhi ikalwe.
• Igumbi lokucisha i-arc le-SF6 elifakwe phansi elinamandla okuphazamisa aphezulu.
• Ikhabhinethi ye-Mechanism ehlanganisa indlela yokusebenza yasentwasahlobo kanye nezingxenye zokulawula zesibili.
• Usekelo lwensimbi yamashaneli esebenza kanzima ukuze kufakwe ezinzile.
• Amatheminali amaningi okwenza ukuphepha okuthuthukisiwe kokusebenza.

Izici Zomkhiqizo

• Ikalwe okwamanje kuze kube3150A, ilungele izinhlelo zokusebenza zokudlulisa umthwalo osindayo.
• Ubuchwepheshe bokufakwa kwegesi obuthuthukisiwe be-SF6 buqinisekisa amandla amahle kakhulu e-dielectric kanye nokushabalala okuthembekile kwe-arc.
• Ukubekezela kukagesi okude okunamandla okuphazamisa amaphutha angu-31.5kA kanye nokusebenza kwemishini okungafika ku-10,000.
• Izinga lokuvuza kwegesi le-SF6 lonyaka lingaphansi kuka-0.5%, linciphisa izidingo zokunakekela kanye nokuqinisekisa ukwethembeka kokuvala uphawu.
• II-I-I-66KV Tank Type SF6 Circuit Breakeryakhelwe izindawo eziqinile zangaphandle, ezisekela i-Pollution Level IV namazinga okushisa avela ku--40°C kuya ku-+40°C.
• Ukwakhiwa kohlobo lwe-compact tank kunciphisa indawo yokufaka ngenkathi kuthuthukisa ukuzinza kwemishini.
• Ifanele ukuqapha okukude, i-substation automation, nezinhlelo zokusebenza zegridi ehlakaniphile yesimanje.

Imininingwane Yezobuchwepheshe

Imininingwane Yendlela Yokusebenza

Izinhlelo zokusebenza

II-I-I-66KV Tank Type SF6 Circuit Breakerisetshenziswa kakhulu ezinhlelweni zokudlulisa amandla kagesi aphezulu kanye nokusabalalisa lapho ukushintshwa okuthembekile nokuvikela kubalulekile.

• 66KV iziteshi
• Amanethiwekhi okudlulisa kanye nokusabalalisa kwezinsiza
• Izitshalo zokuphehla amandla
• Ukuhlanganiswa kwegridi yamandla avuselelekayo
• Izinhlelo zokusabalalisa amandla ezimboni
• Ukushintshwa kwebhange le-Capacitor
• Uthayi webhasi kanye nokuvikela okuphakelayo
• Igridi ehlakaniphile namaphrojekthi eziteshi ezishintshayo

Isimiso Sokusebenza

I-66KV Tank Type SF6 Circuit Breaker isebenzisa igesi yesulfure hexafluoride (SF6) njengokubili okuyi-insulating ne-arc-quenching medium. Lapho abathintwayo behlukana ngesikhathi sokushintshwa, kukhiqizwa i-arc kagesi. Igesi ye-SF6 enengcindezi ephezulu ipholisa ngokushesha futhi ikhiphe i-arc, ivumele iphutha lamanje ukuthi liphazamiseke ngokuphepha nangempumelelo. I-motor-charged spring operating mechanism inikeza imisebenzi yokuvula nokuvala ngokushesha, iqinisekisa ukuvikelwa okuthembekile kwezinhlelo zikagesi zamandla aphezulu.

imibuzo ejwayelekile ukubuzwa

Isetshenziselwani i-66KV Tank Type SF6 Circuit Breaker?

Isetshenziselwa ukushintsha, ukuvikela, kanye nokuphazamiseka kwamaphutha kumasistimu okudlulisa nokusabalalisa angu-66KV, okusiza ukugcina ukusebenza okuphephile nokuthembekile kweziteshi ezincane namagridi kagesi.

Yiziphi izinzuzo ze-SF6 tank type breaker?

Ama-circuit breaker ohlobo lwethangi le-SF6 ahlinzeka ngokusebenza okuhle kakhulu kokufakwa kwe-insulation, umthamo omkhulu wokuphazamisa, ukwakheka okuhlangene, izidingo zokulungisa okuphansi, nempilo ende yenkonzo.

Ingabe le breaker yesekethe ingasetshenziselwa ukushintsha i-capacitor bank?

Yebo. I-LW36-66 ifanele ukushintshwa kwebhange le-capacitor, izinhlelo zokusebenza ezibopha ibhasi, kanye nokuvikelwa kolayini wokuhambisa amandla aphezulu.

Ingabe i-circuit breaker ifanele izindawo ezingaphandle ezinonya?
