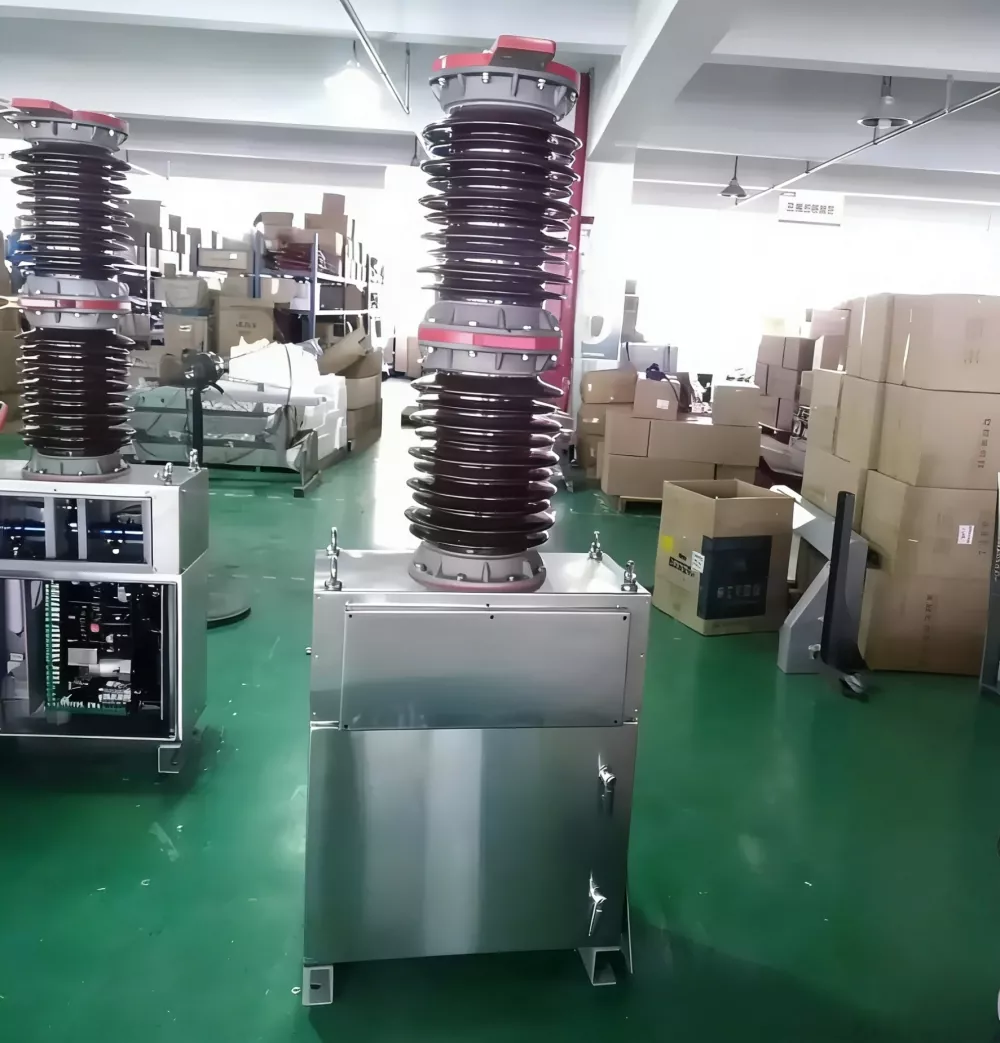

27.5KV I-Single Pole Vacuum Circuit Breaker

II-27.5kV I-Single Pole Vacuit Circuit Breaker(uchungechunge lwe-ZW7) yakhelwe ngokukhethekile amasistimu okusabalalisa amandla kaloliwe kaloliwe, lapho ukusebenza okuthembekile kokushintsha kanye nekhono eliphezulu lokuphazamiseka kwephutha kubalulekile. Isetshenziswa kakhulu kumanethiwekhi amandla okudonsa asebenza ku-27.5kV, enikeza ukusebenza okuzinzile ngaphansi kokushintshwa okuvamile nezimo zangaphandle ezinzima.

Idizayinelwe ngegumbi lokucisha i-arc ye-vacuum kanye nesakhiwo esihlangene sesigxobo esisodwa, iI-27.5kV I-Single Pole Vacuit Circuit Breakeriqinisekisa ukuphazamiseka okusheshayo kwemisinga yephutha ngenkathi inciphisa izidingo zokulungisa. Idizayini yayo engasindi iyenza ifanelekele izinhlelo zokusebenza ezifakwe ezigxotsheni kanye nesiteshi esincane.

Izinzuzo Zomkhiqizo Eziyinhloko

• Kwenzelwe amasistimu kaloliwe wokudonsa kaloliwe angu-27.5kV
• Ukusebenza okuphezulu kokuphazamiseka ngobuchwepheshe bokuphazamiseka kwe-vacuum
• Idizayini yesigxobo esisodwa esiqinile ukuze kube lula ukufaka isigxobo noma umbhoshongo
• Isakhiwo esiqinile sokufakelwa ngerabha ye-silicone noma ukwesekwa kwe-porcelain
• Ifanele ukushintshwa njalo kanye nokusebenza kwenkonzo ende

Imininingwane Yezobuchwepheshe Yomkhiqizo

Amapharamitha Wobuchwepheshe we-ZW7 I-Single Pole Circuit Breaker

I-ZW7 I-Single Pole Circuit Breaker Mechanical Parameters

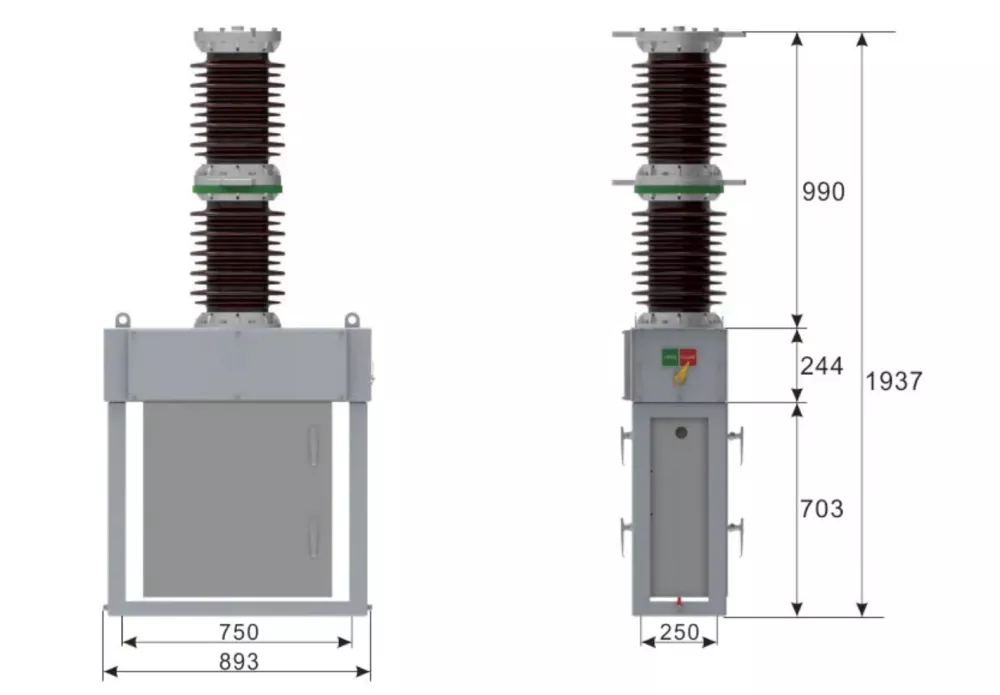

Umdwebo Dimensional womkhiqizo

Idizayini Yesakhiwo

I-ZW7 series 27.5kV Single Pole Vacuum Circuit Breaker isebenzisa ukwakheka kwe-modular ehlanganisa isiphazamisi se-vacuum, inhlanganisela yamandla aphezulu noma ama-porcelain insulators, indlela yokusebenza yasentwasahlobo, nama-transformer amanje ahlanganisiwe. Ukucushwa okuhlangene kunciphisa indawo yokufaka ngenkathi kugcinwa ukusebenza okuhle kakhulu kokufakwa kukagesi.

Idizayini yayo yesigxobo esivaliwe ithuthukisa ukumelana nomswakama, uthuli, kanye nokungcola, ikwenze ifanelekele ukufakwa kukaloliwe wangaphandle wesikhathi eside ngezidingo zokulungisa kancane.

Izinkambu Zohlelo

1. Izinhlelo zikagesi ezidonsa umzila kaloliwe (olayini abangaphezulu kuka-27.5kV);

2. Umphakeli wezitimela zasemadolobheni kanye nezicelo zokuhlukanisa;

3. Iziteshi ezincane, iziteshi zokushintsha, kanye nezinhlelo zokuvikela ulayini ongaphezulu;

4. Ukuthuthukiswa kwengqalasizinda yezitimela kanye nemiklamo yokubuyisela engenawo uwoyela;

Indlela Yokufaka

Ukufakwa kwe-I-27.5kV I-Single Pole Vacuit Circuit Breakerngokuvamile kwenziwa ezigxotsheni zosizo noma emibhoshongweni yensimbi. Isisekelo esifanele nokuqondanisa kubalulekile ukuze kuqinisekiswe ukuzinza kokusebenza.

• Hlola ukumelana ne-insulation ngaphambi kokufaka
• Qinisekisa ukuqondanisa okulungile kwemishini kwesakhiwo esifakwe esigxotsheni
• Vikela ukuxhumeka okuphansi kugridi yomhlaba yesistimu
• Yenza izivivinyo zokusebenza ezenziwa ngesandla nezikagesi ngaphambi kokunika amandla
• Qinisekisa ukulawula izintambo kanye noxhumo lwe-CT

Ngemva kokufaka, ukuhlola okusebenzayo okuhlanganisa ukuvula/ukuvala umsebenzi nokuqinisekisa isikhathi kufanele kuqedwe ngaphambi kokuhlanganiswa kwesistimu.

FAQ

Q1: Iluphi uhlelo olusetshenziswa kakhulu lwe-27.5kV Single Pole Vacuum Circuit Breaker?
Impe

Q2: Kungani kusetshenziswa ubuchwepheshe be-vacuum kule breaker yesifunda?
A: Ukuphazamiseka kwe-vacuum kunikeza ukucisha kwe-arc okusheshayo, amandla aphezulu e-dielectric, nempilo ende kagesi, okuyenza ilungele ukusebenza okuvamile.

Q3: Ingasetshenziselwa amaphrojekthi wokubuyisela?
A: Yebo, isetshenziswa kakhulu ekuthuthukisweni kwe-oyela-to-vacuum retrofit ngenxa yesakhiwo sayo esihlangene kanye nomklamo ongenawo uwoyela.

Q4: Yiziphi izindawo ezifanele?
A: Idizayinelwe izindawo zikaloliwe zangaphandle, okuhlanganisa umswakama ophezulu, ukungcola, nokwehluka okubanzi kwezinga lokushisa.

Q5: Ingabe idinga ukulungiswa njalo?
A: Izidingo zokuyilungisa zincane kakhulu ngenxa yesiphazamisi se-vacuum esivaliwe kanye nesakhiwo esiqinile.
