I-40.5KV Substation Circuit Breaker Nge-Transformer Yamanje

I-ZW7-40.5 40.5KV Substation Circuit Breaker With Current Transformer iyi-voltage ephezulu yangaphandle ye-vacuum breaker eklanyelwe iziteshi ezincane, izimboni zikagesi, izinsiza zezimboni, kanye namanethiwekhi okusabalalisa amandla asemadolobheni noma asemaphandleni. Ihlanganisa isiphazamisi se-vacuum esisebenza kahle nesiguquli samanje esididiyelwe ukuze sinikeze imisebenzi ethembekile yokushintsha, ukuvikela, ukulinganisa, nokulawula kumasistimu kagesi aphakathi nendawo naphezulu.

I-circuit breaker ine-insulator engaphezulu ye-porcelain ehlala isiphazamisi se-vacuum kanye ne-insulator ephansi ye-porcelain esekelayo eqinisekisa amandla amahle kakhulu wemishini nokusebenza kokufakelwa. Ama-transformer amanje angaphandle anika amandla ukuqapha okunembile kwamanje nokuxhumana kokuvikela kuyilapho enza imisebenzi yokufaka nokulungisa ibe lula.

Idizayinelwe isevisi yangaphandle yesikhathi eside, le 40.5KV vacuum circuit breaker inikeza ukusebenza okuhle kakhulu kokuvala, ukumelana okuqinile nokuguga, amandla aphezulu e-dielectric, kanye nokuvumelana nezimo kwemvelo okuvelele. Ubuchwepheshe bayo bokuphazamisa i-vacuum buqeda izingozi zomlilo nokuqhuma kuyilapho inikeza impilo ende yesevisi kagesi nemishini.

Itholakala ku-33KV, 35KV, kanye ne-40.5KV izilinganiso zamandla kagesi, uchungechunge lwe-ZW7 lusetshenziswa kabanzi ekushintsheni kwamanje kokulayisha, ukuvikela ukugcwala ngokweqile, ukuphazamiseka kwesekethe emfushane, nokuhlukaniswa kwesistimu kumanethiwekhi okudlulisa nokusabalalisa.

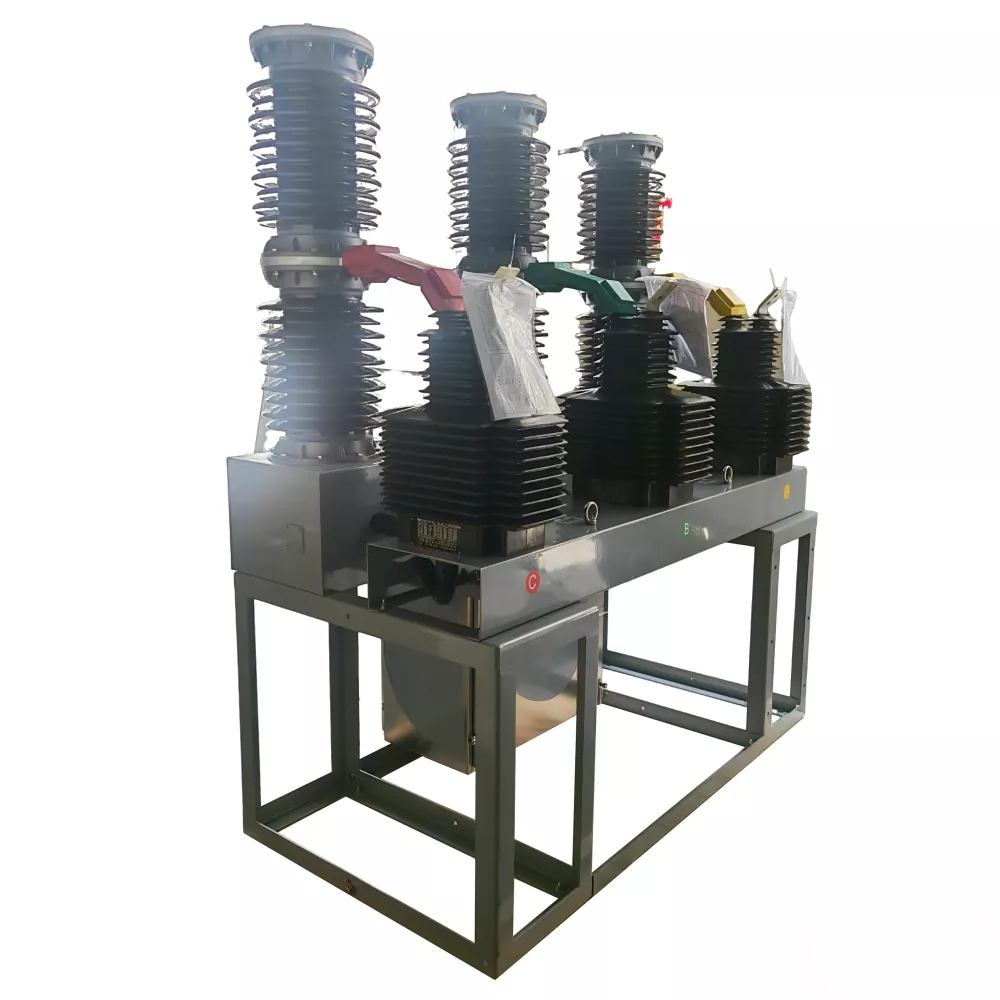

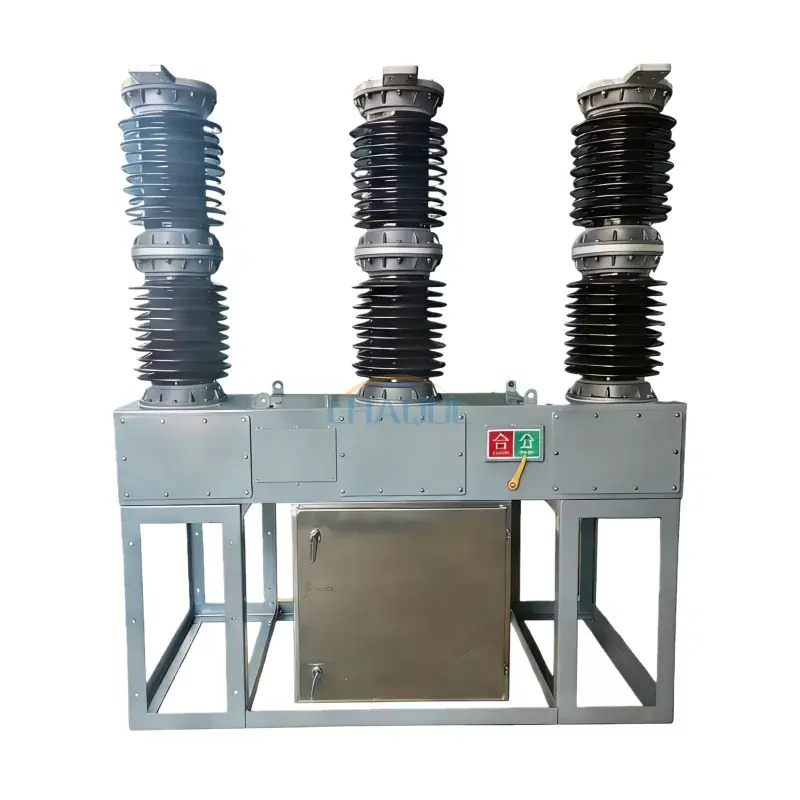

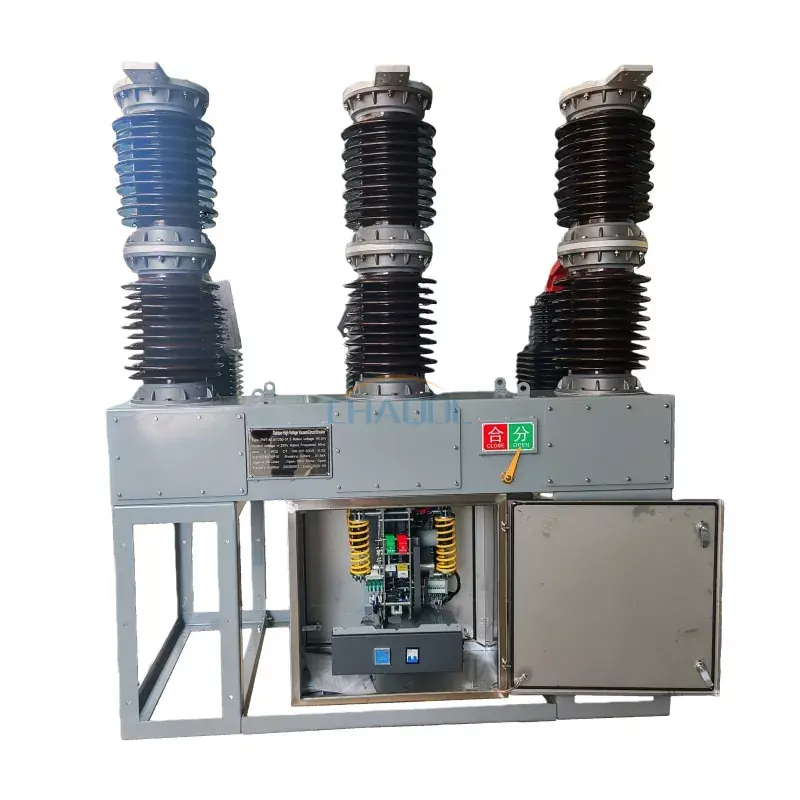

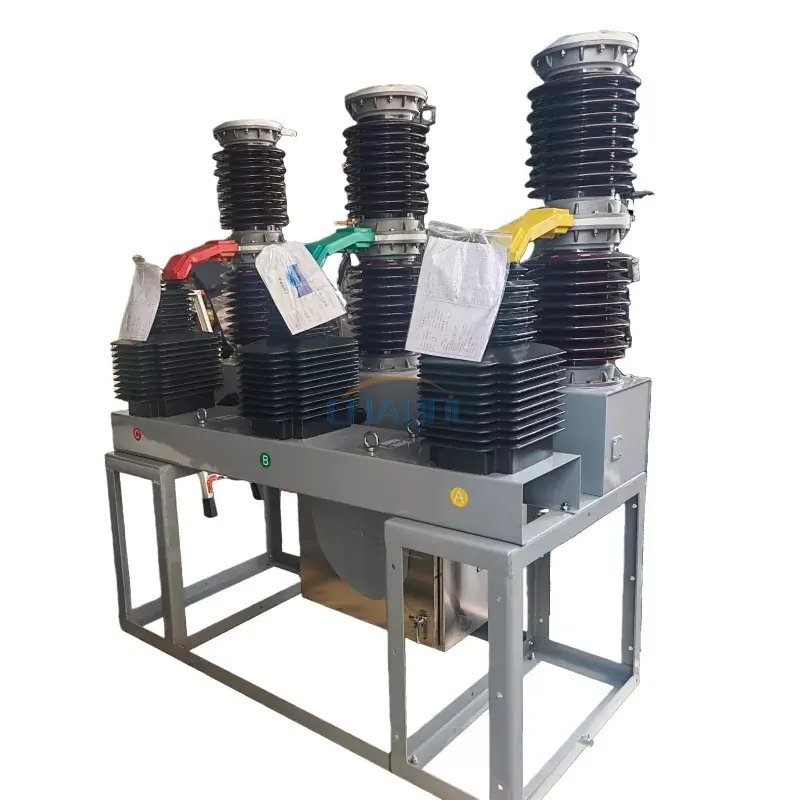

Umdwebo Wokubukeka Komkhiqizo

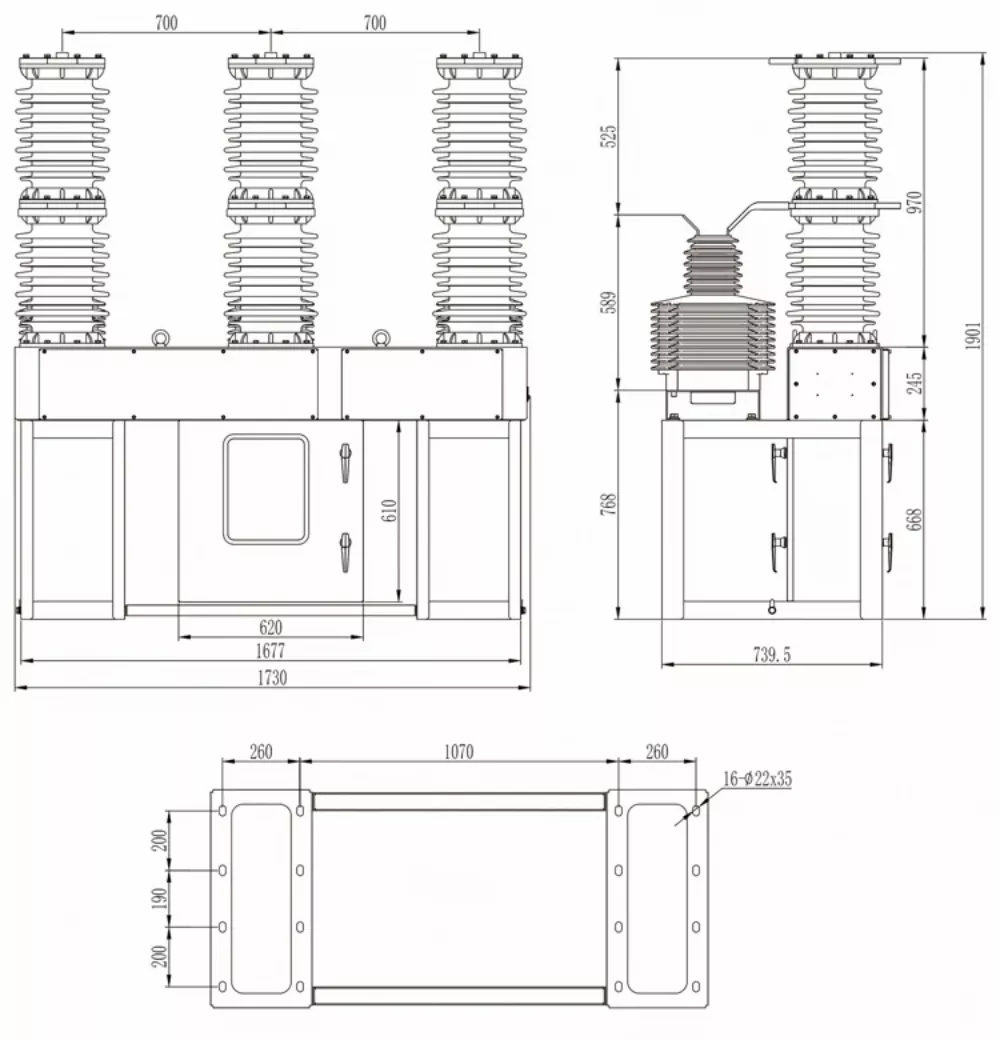

Umdwebo Wobukhulu

Imingcele Yezobuchwepheshe

Izici Zomkhiqizo

• Ubuchwepheshe obuthuthukisiwe bokuphazamiseka kwe-vacuum buqinisekisa ukushabalala kwe-arc okuthembekile kanye nokuhlukaniswa kwamaphutha.
• Ama-transformer amanje ahlanganisiwe ahlinzeka ngokulinganisa okunembile, ukuqapha, nemisebenzi yokuvikela.
• Ifanele 33KV, 35KV, kanye 40.5KV medium-voltage kanye high-voltage izinhlelo ukusatshalaliswa.
• Ama-insulators e-porcelain anamandla aphezulu anikeza ukusebenza okuhle kakhulu kokufakelwa kanye nokuzinza kwemishini.
• Idizayini evaliwe yesiphazamisi se-vacuum iletha impilo ende yesevisi kanye nezidingo zokulungisa ezincane.
• Ukumelana okuhle kakhulu nokuguga, umswakama, ukungcola, kanye nezindawo zangaphandle ezinokhahlo.
• Isekela kokubili ukusebenza okwenziwa ngesandla nokwemoto ukuze kuhlanganiswe uhlelo oluguquguqukayo.
• Isakhiwo se-transformer samanje esizimele senza ukuhlola, ukulinganisa, ukushintshwa, nokugcinwa kube lula.
• Amandla aphezulu okuphuka kwesekethe emfishane afika ku-31.5KA aqinisekisa ukuvikelwa kwesistimu yamandla okuthembekile.
• Awekho uwoyela, akukho bungozi bokuqhuma, kanye nokusebenza okunobungani kwemvelo.

Izinhlelo zokusebenza

I-40.5KV Substation Circuit Breaker With Current Transformer isetshenziswa kabanzi kumasistimu wamandla kagesi aphakathi nendawo kanye nanamandla kagesi aphezulu adinga ukushintshwa okuthembekile, ukuvikela, kanye nemisebenzi yokulawula.

• Iziteshi zikagesi
• Amanethiwekhi okudlulisa nokusabalalisa amandla
• Amaphrojekthi wegridi yosizo
• Iziteshi zamandla kagesi
• Izitshalo zamandla ashisayo
• Amasistimu okukhiqiza amandla omoya
• Amaphrojekthi kagesi welanga
• Izinsiza zezimayini nezensimbi
• Izitshalo zokukhiqiza izimboni
• Amasistimu kaloliwe wesitimela nezokuthutha
• Amanethiwekhi okusabalalisa ugesi emadolobheni nasezindaweni zasemakhaya

Izinzuzo Zobuchwepheshe

Uma kuqhathaniswa nama-circuit breaker endabuko kawoyela kanye nama-circuit breaker e-SF6, i-ZW7-40.5 Outdoor Vacuum Circuit Breaker inikeza ukwethembeka okuphakeme kokusebenza, izidingo zokulungisa ezincishisiwe, nempilo ende yesevisi. Isiphazamisi se-vacuum sicisha ngempumelelo ama-arcs ngaphakathi kwegumbi le-vacuum elivalekile, sinciphisa ukuguguleka kokuxhumana futhi sithuthukise ukusebenza kokushintsha.

Idizayini ye-transformer yamanje ehlanganisiwe isekela ukuvikeleka okunembile kwe-relay, ukuqapha amaphutha, ukukalwa kwamanje, kanye nesistimu ezishintshayo, okuyenza ibe yisixazululo esifanelekile segridi ehlakaniphile yesimanje kanye nezinhlelo zokusebenza zokusabalalisa amandla.

Ngamandla amahle kakhulu e-dielectric, ukukhuthazela okuphezulu kwemishini, nokusebenza okuzinzile ngaphansi kwezimo zemvelo ezinzima, i-40.5KV Vacuum Circuit Breaker iyisinqumo esikhethwa yizinkampani ezisizayo, osonkontileka be-EPC, namaphrojekthi engqalasizinda kagesi emhlabeni jikelele.

imibuzo ejwayelekile ukubuzwa

Isetshenziselwani i-40.5KV vacuum circuit breaker?

I-40.5KV vacuum circuit breaker isetshenziselwa ukuvikela nokulawula amasistimu wamandla kagesi aphakathi nendawo kanye naphezulu ngokuphazamisa amaza okulayisha, amaza okulayisha ngokweqile, namaza okungasebenzisi isiyingi esifushane eziteshini ezincane namanethiwekhi okusabalalisa kagesi.

Kungani i-transformer yamanje ihlanganiswe ne-circuit breaker?

I-transformer yamanje ehlanganisiwe inikeza isilinganiso samanje esinembile, okokufaka kwe-relay yokuvikela, ukuqapha amaphutha, nemisebenzi yokulawula okuzenzakalelayo, ukuthuthukisa ukuphepha kohlelo lonke nokusebenza kahle kokusebenza.

Yiziphi izinzuzo zama-vacuum circuit breakers?

Ama-circuit breaker ahlinzeka ngokushabalala kwe-arc esheshayo, impilo yesevisi ende, izidingo zokunakekelwa okuphansi, ukwethembeka okuphezulu, ubungane bemvelo, nokusebenza kukagesi okuphakeme uma kuqhathaniswa nobuchwepheshe obujwayelekile.

Ingabe i-ZW7-40.5 circuit breaker ingafakwa ngaphandle?

Yebo. I-ZW7-40.5 Outdoor Vacuum Circuit Breaker yakhelwe ngokukhethekile ukufakwa ngaphandle futhi ingamelana nezimo ezihlukahlukene zemvelo ezihlanganisa ukushintshashintsha kwezinga lokushisa, umswakama, nokungcola.

Yiziphi izimboni ezivame ukusebenzisa ama-circuit breaker angu-40.5KV?

Lawa ma-circuit breaker asetshenziswa kakhulu ezintweni ezisetshenziswayo, iziteshi ezincane, ezimbonini zokuphehla ugesi, amaphrojekthi wamandla avuselelekayo, imisebenzi yezimayini, izikhungo zezimboni, ingqalasizinda yezokuthutha kanye nezinhlelo ezinkulu zokusabalalisa ugesi.
