I-Instrument Transformer Ikuthuthukisa Kanjani Ukuphepha Kwesistimu Kagesi?

Abstract: Ama-instrument transformerziyizingxenye ezibalulekile ezinhlelweni zikagesi zesimanje. Bathuthukisa ukuphepha, baqinisekise ukukalwa okunembile, futhi bavikele imishini ezingozini zamandla kagesi aphezulu. Lesi sihloko sihlola ukuthi iziguquli zezinsimbi zisebenza kanjani, izinzuzo zazo, izinhlobo, amathiphu okufaka, nezinqubo ezivamile zokuxazulula izinkinga, zinikeza izixazululo ezinseleleni zomhlaba wangempela onjiniyela bakagesi nabaphathi bezikhungo ababhekana nazo.

Okuqukethwe

• Isingeniso
• Iyini i-Instrument Transformer?
• Izinhlobo zama-Instrument Transformers
• Izinzuzo Zokusebenzisa Ama-Instrument Transformers
• Amathiphu Okufaka Nemikhuba Engcono Kakhulu
• Ukuxazulula Izinkinga Ezivamile
• FAQ
• Isiphetho & Xhumana

Isingeniso

Emkhakheni wobunjiniyela bukagesi, ukuphepha nokunemba kubalulekile. Amasistimu kagesi aphezulu awafaki ubungozi emishinini kuphela kodwa nakubasebenzi. Iziguquli zezinsimbi zisebenza njengabalamuli abavikelayo, zehlisela amandla kagesi aphezulu noma amazinga amanje ukuze kube amanani alawulekayo nalinganisekayo amamitha, amalayidi, namadivayisi okuqapha. Ngokuqonda indima yabo, onjiniyela bangathuthukisa ukusebenza kwesistimu kuyilapho begcina amazinga okuphepha aqinile.

Iyini i-Instrument Transformer?

I-transformer yensimbi iyidivayisi eyehlisa i-voltage ephezulu noma yamanje ibe sezingeni eliphansi, elijwayelekile, elivumela ukulinganisa okuphephile nokuqapha. Ifeza izinjongo ezimbili eziyinhloko:

• Isilinganiso:Ukumelwa okunembile kwamandla kagesi kanye namanje kumamitha nezinhlelo zokuqapha.
• Ukuvikelwa:Amalayidi okuvikela kanye nezinye izinto zokuzivikela ngokuzihlukanisa ku-voltage ephezulu.

Izingxenye ezibalulekile zifaka:

• Ukusonta okuyisisekelo
• Ukuphenduka kwesibili
• Ingqikithi (impahla kazibuthe)
• Uhlelo lwe-insulation

Ama-instrument transformer ahlukaniswa ngezigaba ezimbili eziyinhloko:

1. Ama-Transformers Amanje (CTs)
2. Ama-Voltage/ Ama-Transformers Angaba khona (VTs/PTs)

Izinhlobo zama-Instrument Transformers

Ama-Transformers Amanje (CTs)

Ama-transformer amanje aklanyelwe ukukala amazinga aphezulu wamanje ngokukhiqiza i-proportional current current kuma-winging yesibili. Izinhlelo zokusebenza ezibalulekile zifaka:

• Ukulinganisa amandla
• Ukuvikelwa kwamanje
• Ukuqapha izinga lamandla

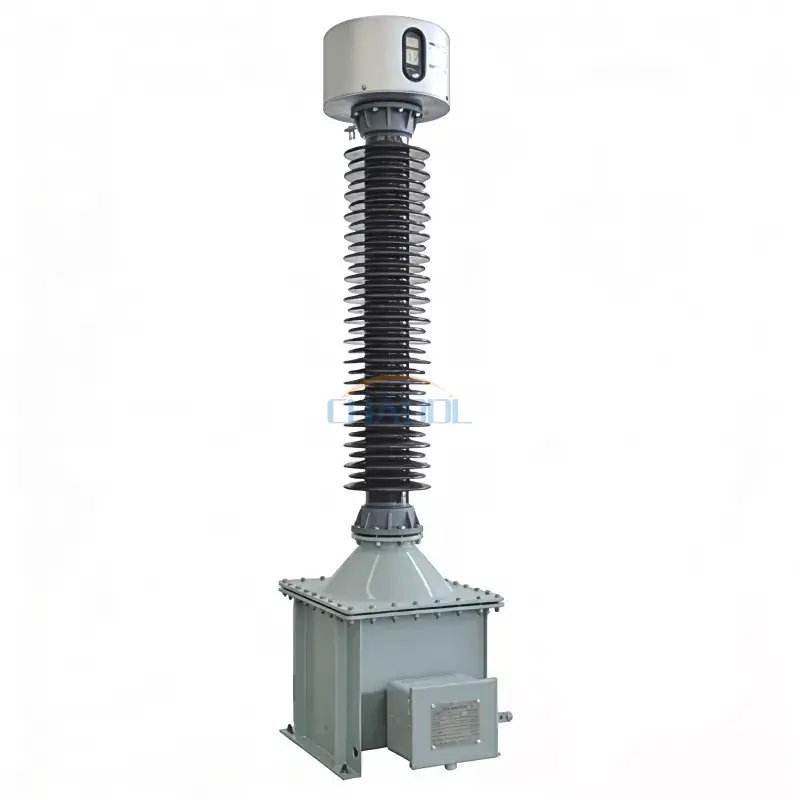

Ama-Voltage Transformers (VTs/PTs)

Ama-voltage transformer, awaziwa nangokuthi angaba ama-transformer, anciphisa amandla kagesi aphezulu abe sezingeni eliphephile, elilinganisekayo. Zibalulekile ku-:

• Isilinganiso samandla kagesi
• Ukusebenza kwe-relay
• Ukuqapha isistimu yamandla

Ithebula lokuqhathanisa

Izinzuzo Zokusebenzisa Ama-Instrument Transformers

Ama-Instrument transformer ahlinzeka ngezinzuzo eziningi, kufaka phakathi:

• Ukuphepha Okuthuthukisiwe:Ihlukanisa amathuluzi okulinganisa nabasebenzi emazingeni aphezulu ombane.
• Izilinganiso Ezinembile:Inika amandla ukufundwa okunembayo kwamasistimu okulinganisa nawokulawula.
• Ukuvikelwa Kwesistimu:Igwema umonakalo kuma-relay namadivayisi wokuqapha.
• Ukuhlukahluka:Isekela izinhlelo zokusebenza zamandla kagesi aphezulu kuyo yonke imikhakha yezimboni nezinsiza.

Amathiphu Okufaka Nemikhuba Engcono Kakhulu

Ukufakwa ngendlela efanele kuqinisekisa ukwethembeka nokunemba kwesikhathi eside. Izinqubo ezibalulekile zihlanganisa:

• Faka ama-transformer ezindaweni ezomile, ezingenamoya
• Qinisekisa isisekelo esifanele sokuphepha
• Qinisekisa izimpawu ze-polarity ukuze uvimbele amaphutha ezintambo
• Hlola njalo ukuwohloka kwe-insulation
• Landela imihlahlandlela yomkhiqizi ngezilinganiso zokulayisha

Ukufakwa ngendlela efanele futhi kunciphisa izingozi zokushisisa ngokweqile, ukufundwa okungalungile, kanye nokwehla kwesistimu okungaba khona.

Ukuxazulula Izinkinga Ezivamile

Naphezu kokuklama okuqinile, ama-transformer wezinsimbi angahlangabezana nezinkinga. Izinkinga ezijwayelekile zihlanganisa:

• Ukufundwa okungalungile ngenxa yamaphutha esekethe yesibili
• Ukuhluleka kwe-insulation kubangela amasekhethi amafushane
• Ukuxhumana okuxekethile okuholela ezilinganisweni ezingalungile
• Ukulimala kwemvelo njengokungena komswakama

Izinyathelo eziyisisekelo zokuxazulula inkinga:

1. Hlola izintambo kanye nokuxhumana kwe-polarity
2. Hlola ukwahlukanisa nokubeka phansi
3. Hlola ukuphuma kwesibili kwamanje/i-voltage ngamathuluzi alinganisiwe
4. Shintshanisa amayunithi alimele ngokushesha

FAQ

Q: Ingabe iziguquli zezinsimbi zingasingatha izimo zokugcwala ngokweqile?

IMP: Eningi yakhelwe ukulayisha ngokweqile, kodwa ukulayisha ngokweqile kungalimaza idivayisi. Njalo landela imikhawulo elinganiselwe.

Q: Kufanele zihlolwe kangaki iziguquli zezinsimbi?

Ukuhlola okuvamile kunconywa minyaka yonke, ngokuhlolwa okuvamile ezindaweni ezinonya.

Q: Ingabe ama-CTs nama-VT ayashintshana?

Cha, ama-CT akala amandla amanje, kuyilapho ama-VT ekala i-voltage. Ukusebenzisa eyodwa esikhundleni somunye kungaholela ekufundweni okungalungile kanye nokulimala kwemishini.

Isiphetho & Xhumana

Ama-instrument transformer abalulekile ezinhlelweni zikagesi eziphephile nezithembekile. Kusukela esilinganisweni esinembile kuya ekuvikelweni kwemishini, indima yabo ayikwazi ukweqiwa. Ukukhetha ama-transformer ekhwalithi ephezulu, ukuwafaka ngendlela efanele, nokugcina ukuhlolwa okuvamile kuqinisekisa ukusebenza kahle kwesistimu.

Ukuze uthole ama-premium instrument transformer kanye nesiqondiso sochwepheshe,Amandla Anqiangumlingani wakho omethembayo.Xhumana nathinamuhla ukuhlola uhla lwethu olugcwele lwemikhiqizo nezisombululo.
