I-Oil Immersed Combined Instrument Transformer

Model:JLS-35, 10, 6,3

I-Anqiang Power ingumkhiqizi we-Oil Immersed Combined Instrument Transformer. Lesi siguquli silungele amasistimu wamandla we-AC ezigaba ezintathu ezinemvamisa elinganiselwe engu-50Hz noma engu-60Hz kanye nama-voltages alinganiselwe angu-3KV, 6KV, 10KV, kanye no-35KV. Umkhiqizo ubonisa ukunemba okuphezulu, isisindo esincane, ukufakwa kalula, namandla okulwa nobugebengu.

Thumela Uphenyo

Incazelo Yomkhiqizo

Lesi siguquli sensimbi esihlanganisiwe esicwiliswe uwoyela (imodeli ye-JLS-10) yakhelwe ukulinganisa okunembile nokuvikela ezinhlelweni zamandla we-medium-voltage. Ihlanganisa amandla kagesi kanye nemisebenzi yamanje yokukala ibe yiyunithi eyodwa egcwele uwoyela, iyenze isebenze kabanzi kumanethiwekhi okusabalalisa angaphandle, iziteshi ezincane, kanye nezinhlelo zokuqapha amandla ezimboni. Isakhiwo samukela idizayini yokufaka uwoyela evalwe uphawu ukuze kuqinisekiswe ukusebenza okuzinzile ngaphansi kwezimo zomthwalo wesikhathi eside kanye nokuchayeka okuqinile kwemvelo.

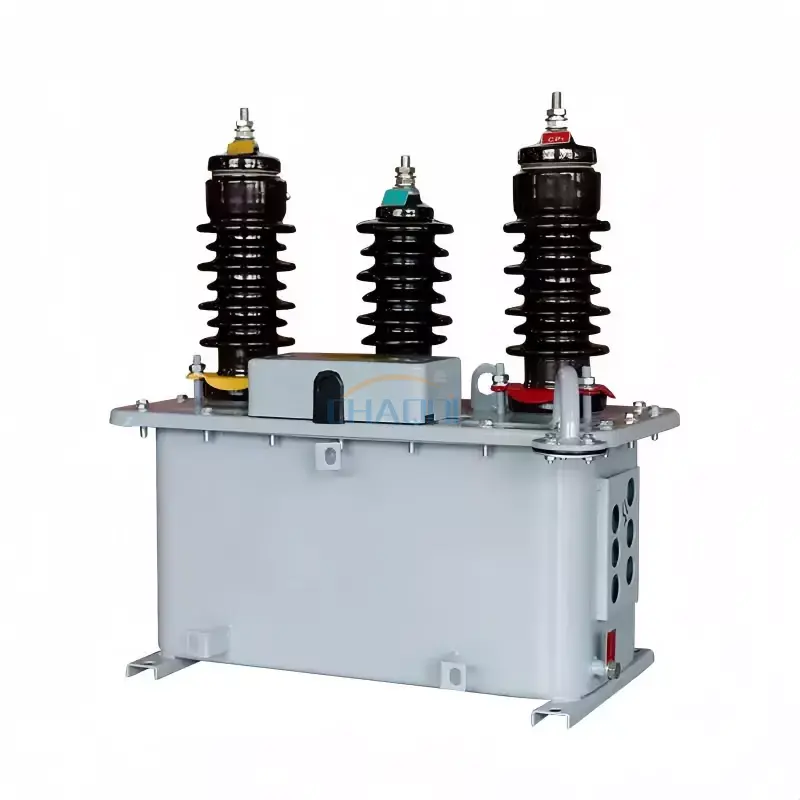

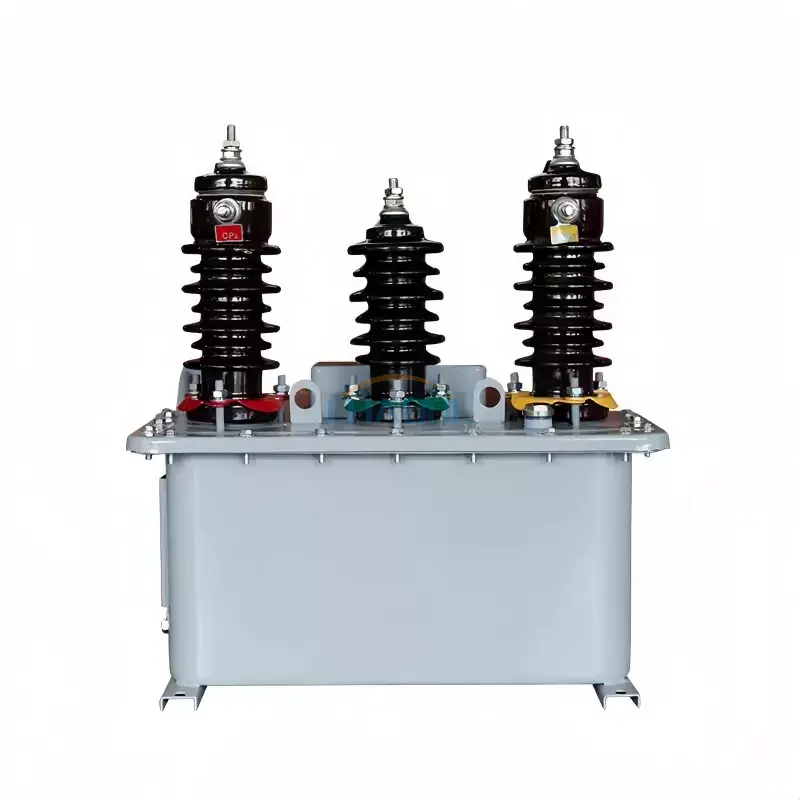

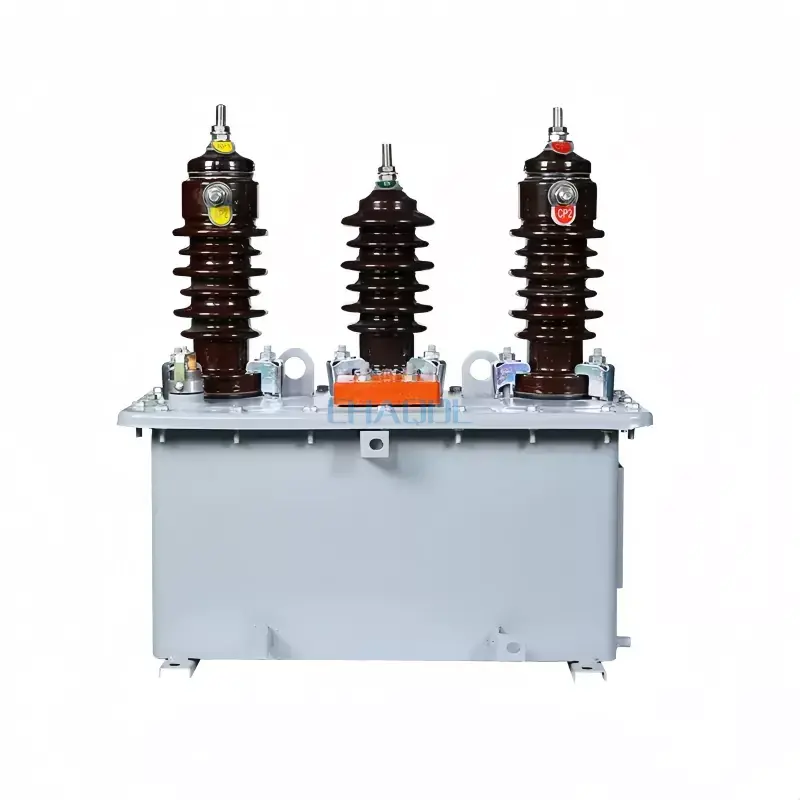

Isibonisi sesithombe somkhiqizo

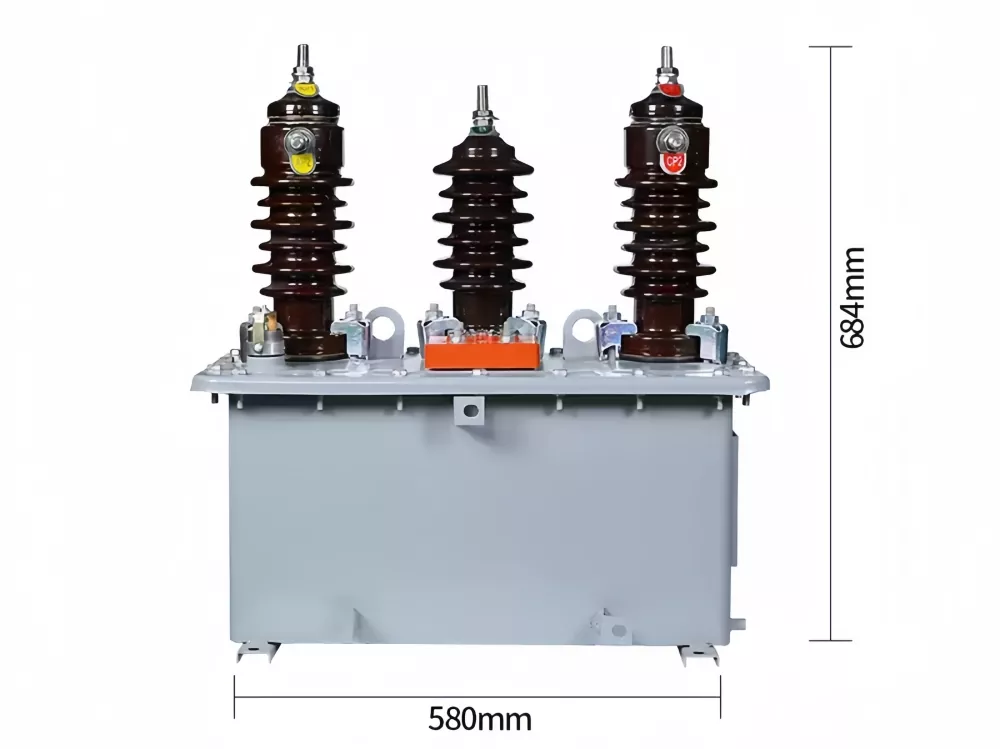

Oil Immersed Combined Instrument Transformer

Uhlolojikelele kanye Nobubanzi Bokusebenza

I-Oil Immersed Combined Instrument Transformer yakhelwe ukwenza i-voltage ngesikhathi esisodwa kanye noshintsho lwamanje kumitha kagesi nokuvikela ukudluliselwa. Ilungele amasistimu okusabalalisa angu-6kV, 10kV, kanye nama-35kV, ikakhulukazi eziteshini ezingaphandle, eziteshini ze-compact transformer, kanye namagridi kagesi ezimbonini lapho ukwethembeka namandla okushisa kubaluleke kakhulu.

Ngokuhlanganisa imisebenzi yokulinganisa eminingi esakhiweni esisodwa, kunciphisa indawo yokufaka futhi kuthuthukise ukusebenza kahle kwezintambo zesistimu, kuyenze ibe yisixazululo esithandwayo sezinhlelo zokusebenza zegridi ehlakaniphile yesimanje.

Igama Lomkhiqizo	I-transformer yensimbi ehlanganisiwe ecwiliswe ngamafutha	Imodeli Yomkhiqizo	JLS-10
Izinga lokunemba	0.5/0.2 ibanga	I-voltage elinganiselwe	6/10/35KV
Ikalwe imvamisa	50Hz	Isilinganiso samandla kagesi	6000/100

Imininingwane Yezobuchwepheshe

Amapharamitha wobuchwepheshe wesigaba samandla kagesi we-JLS-35, 10, 6, kanye nezingu-3 zeziguquli zezinsimbi ezihlanganisiwe ezicwiliswe uwoyela

Imodeli Yomkhiqizo	JLS-35	JLS-10	JLS-6	JLS-3
I-voltage eyinhloko elinganiselwe	35kV	10KV	6kv	3KV
I-voltage ephezulu	40.5KV	11.5KV	6.9KV	3.5KV
Isilinganiso se-voltage yesibili	100KV
Umthamo omkhulu	1000VA	460VA	320VA	320VA
Imvamisa yamandla esikhathi esisodwa imelana nokuhlolwa kwe-voltage	80	38	32	25
Izinga lokwahlukanisa elilinganiselwe	41/95/200	12/42/75	7.2/32/60	3.6/25/40

Amapharamitha wobuchwepheshe wesigaba samanje se-JLS-35, 10, 6, kanye nezingu-3 zeziguquli zezinsimbi ezihlanganisiwe ezicwiliswe uwoyela

Ikalwe okwamanje		Ikalwe okwamanje	FS amaningi	Isiphindaphindi samanje sokuzinza kwe-thermal	Isilinganiso samanje sokuzinza okuguquguqukayo
Isilinganiselo esiguquguqukayo esisodwa	0.5, 1.2, 5.5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100, 120, 150, 200, 250, 300, 400, 600, 800	5A	10	70	120
Isilinganiso esikabili	2.5-5.5-10, 7.5-15, 10-20, 15-30, 20-40, 25-50, 30-60, 50-75, 100-20, 150-300, 250-500

Izinzuzo Zesakhiwo Somkhiqizo

Yamukela ukwakheka kwethangi likawoyela elivalwe ngokugcwele, iqinisekisa ukusebenza kahle kokufakwa kwamafutha kanye nokumelana okuqinile nomswakama, uthuli, nokungcoliswa kwemvelo. Umnyombo wenziwe ngensimbi yekhwalithi ephezulu ye-silicon ukuze kuncishiswe ukulahleka kwamandla, kuyilapho ukunemba kwama-winding ethusi kuqinisekisa ukudluliswa kwamanje okuzinzile kanye nokuphumayo kokulinganisa okunembile.

Uma kuqhathaniswa nama-transformer ahlukene ajwayelekile, le-Oil Immersed Combined Instrument Transformer inciphisa kakhulu inkimbinkimbi yezintambo futhi ithuthukisa ukusebenza kahle kokufakwa eziteshini ezingaphandle namakhabethe okulinganisa amamitha.

Indawo Yokufaka

1. Ifanele ukufakwa kwangaphandle noma kwangaphakathi ezinhlelweni zokusabalalisa

2. Izinga lokushisa le-ambient: -25℃ ukuya ku-+40℃

3. Ukuphakama: ≤1000m (ukuphakama okuphezulu kudinga umklamo owenziwe ngokwezifiso)

4. Isebenza ezindaweni ezingenawo umoya obolayo, ukungcola okukhulu, noma ukudlidliza okukhulu.

Umdwebo wobukhulu bomkhiqizo

Oil Immersed Combined Instrument Transformer

FAQ

Q1: Uyini umsebenzi oyinhloko we-Oil Immersed Combined Instrument Transformer?
IMP: Ihlanganisa ukulinganisa kwamandla kagesi kanye nenani lamanje kuyunithi eyodwa, ihlinzeka ngemitha enembile nesivikelo sokudlulisa amandla kumasistimu wamandla aphakathi nendawo njengeziteshi ezincane namanethiwekhi okusabalalisa.

Q2: Ikuphi le transformer ngokuvamile efakwe?
Impe

Q3: Yimaphi amazinga kagesi le mishini engawasekela?
A: Amamodeli ajwayelekile asekela izinhlelo ze-3kV, 6kV, 10kV, kanye ne-35kV, ayenze ifaneleke uhla olubanzi lwezinhlelo ze-medium-voltage.

I-Q4: Yiziphi izinzuzo zokugxilisa uwoyela?
A: Ukufakwa kwamafutha kunikeza amandla amahle kakhulu e-dielectric, ukuchithwa kokushisa, nokuzinza kokusebenza kwesikhathi eside, ikakhulukazi ezindaweni ezingaphandle ezinonya.

Q5: Idinga kangaki ukunakekelwa?
A: Isakhiwo sivalwe ngokugcwele, ngakho sidinga ukulungiswa okuncane. Kunconywa ukuthi kuhlolwe njalo isimo sikawoyela kanye nokuxhunywa kwetheminali.

I-Q6: Ingabe ingenziwa ngezifiso izilinganiso zamanje ezahlukene?
A: Yebo, izilinganiso zamanje namapharamitha wesibili angenziwa ngendlela oyifisayo ngokuya ngezidingo zephrojekthi ukuze afane nezinhlelo ezihlukene zokubala nokuvikela.
