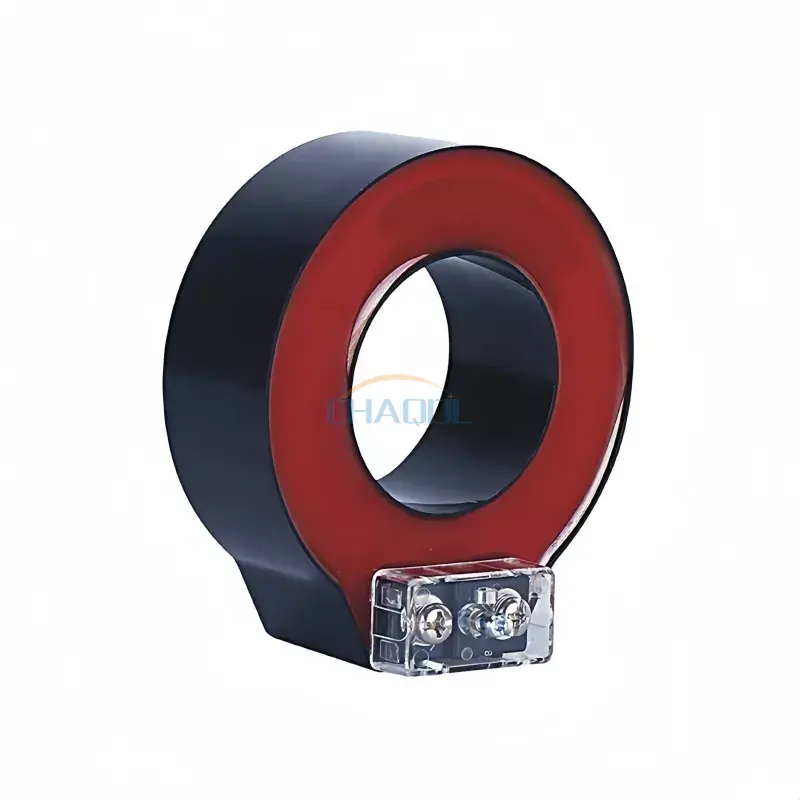

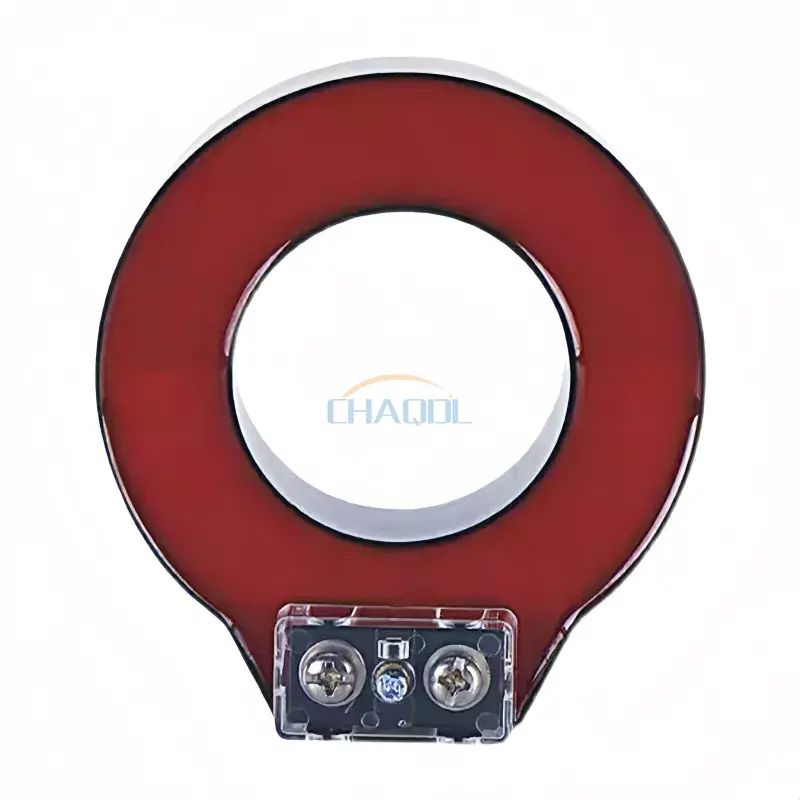

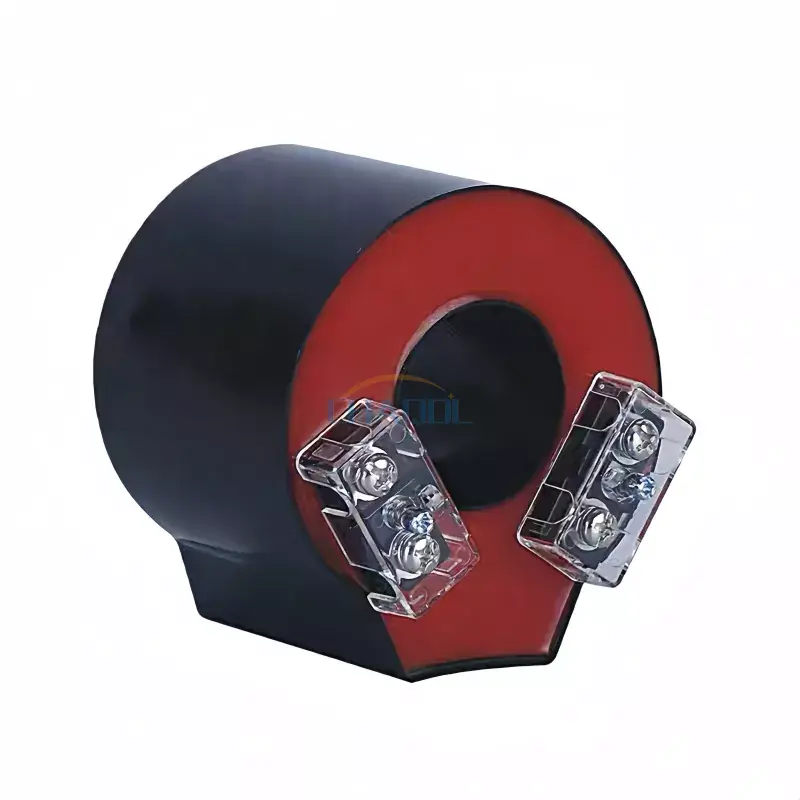

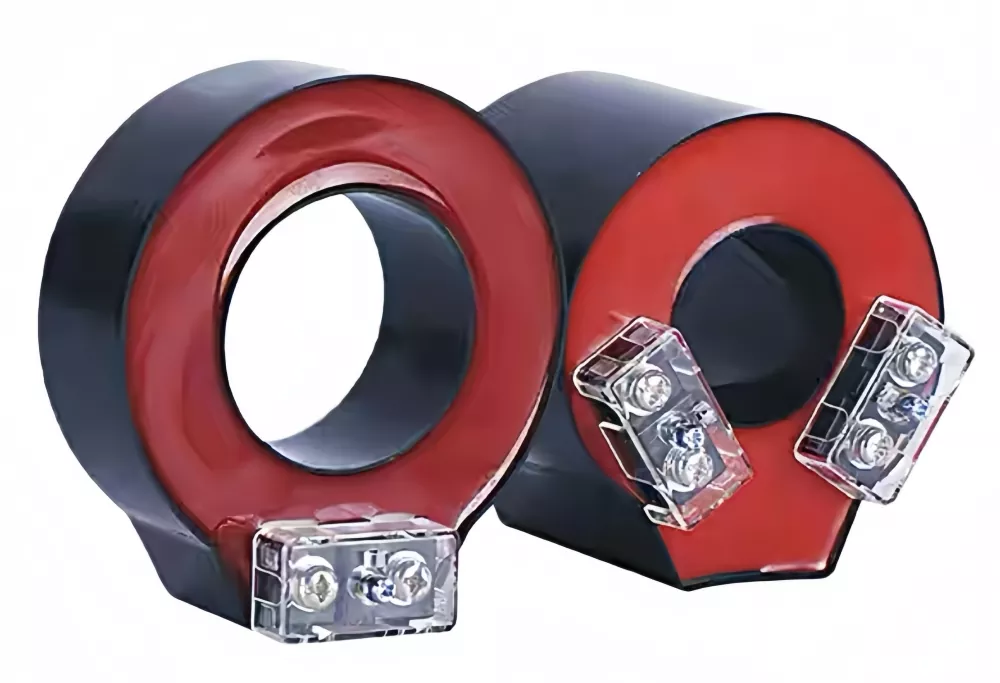

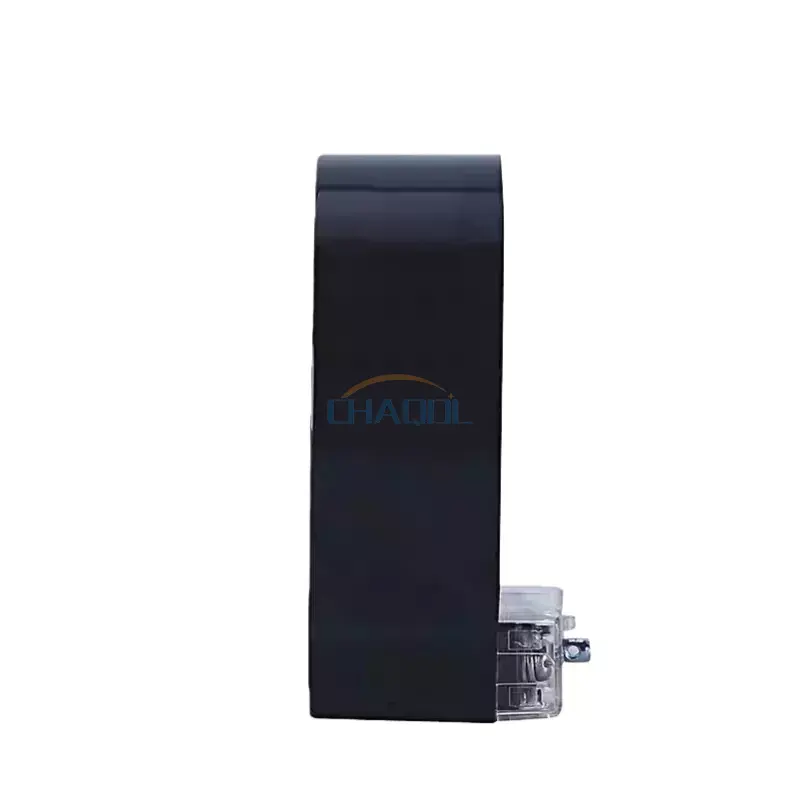

I-Anqiang Power ithuthukisa uhlobo oluyinhloko Nge-Core Current Transformer LMZC-10 ngokusekelwe ezidingweni zokusetshenziswa kwensimu yezinhlelo zesimanje zokusabalalisa amandla. Idizayinelwe izindawo zokushintshwa kwamandla kagesi aphakathi nendawo njenge-GIS, i-RMU, neziteshi ezincane ezihlangene, umkhiqizo uhlinzeka ngokusebenza kokulinganisa okuzinzile ngaphansi kwezimo zokusebenza eziyinkimbinkimbi. Yamukela isakhiwo esivaleke ngokuphelele esinezindlu ze-ABS ezingavali amalangabi kanye nesembozo setheminali esibonisa ngale evalwe kahle ukuze kuthuthukiswe ukuphepha nokubonakala phakathi kwezintambo nokunakekelwa.
Kumasekhethi okulinganisa nokuvikela okusebenzayo, isetshenziswa kabanzi kumasampula esikhathi sangempela wamanje kanye nokuvikela ukudluliselwa kwamasistimu amandla. Isakhiwo sayo sokuhlukaniswa kwe-split-core noma uhlobo lwendandatho sivumela ukufakwa okuqondile kuzintambo eziyinhloko noma amabhasi ngaphandle kokuhlakaza umqhubi oyinhloko, ukuthuthukisa ukusebenza kahle ngesikhathi sokubuyisela kabusha noma amaphrojekthi okulungisa.
Yakhiwe nge-toroidal silicon steel core kanye ne-epoxy resin casting insulation. I-conductor eyinhloko isebenza njengokujika okukodwa, okuthuthukisa kakhulu ukusebenza kahle kokuhlanganiswa kazibuthe futhi kunciphisa ukulahlekelwa kwamandla ngesikhathi sokusebenza.
Ukujikajika kwesibili kwenziwa ngentambo yethusi ene-conductivity ephezulu ukuze kuqinisekiswe ukuphuma kwamanje okuzinzile kanye nokunemba kokulinganisa. Isakhiwo se-epoxy resin esivalwe ngokugcwele sithuthukisa ukumelana nomswakama, ukuvikela uthuli, nokuzinza kwemishini yesikhathi eside.
Kuzinhlelo zokusebenza zobunjiniyela bukagesi, i-Dreath Core Current Transformer ikhethwa ngenxa yesakhiwo sayo esihlangene nokusebenza okuthembekile ezindaweni zokusebenza eziqhubekayo.
|
Igama Lomkhiqizo |
Ngokusebenzisa i-core transformer yamanje |
Imodeli Yomkhiqizo |
I-LMZC-10 |
|
Ikalwe imvamisa |
50/60Hz |
Izinto zomkhiqizo |
I-ABS ye-flame retardant |
|
Isilinganiso sokulwa nokunukubeza |
Ileveli 2 |
Okwesibili okwamanje |
5A/1A |
|
Izinga lokushisa le-ambient |
-350℃-550℃ |
Ukuphakama |
≤1000 amamitha |
|
Imodeli |
Sebenzisa |
Ukulinganisa i-transformer yamanje |
I-protective transformer yamanje |
I-transformer yamanje enamawindi amabili |
|||||||
|
Ikalwe okwamanje |
Isigaba sokunemba nomthwalo olinganiselwe (VA) |
Isigaba sokunemba nomthwalo olinganiselwe (VA) |
Isigaba sokunemba nomthwalo olinganiselwe (VA) |
||||||||
|
0.2s |
0.2 |
0.5 |
10p 5 |
10P10 |
10P15 |
0.5 |
1 |
10P10 |
10P5 |
||
|
I-LMZC-10-3 |
75 |
__ |
__ |
__ |
__ |
__ |
__ |
__ |
__ |
__ |
__ |
|
100 |
__ |
__ |
__ |
2.5 |
__ |
__ |
__ |
__ |
__ |
__ |
|
|
150 |
2.5 |
2.5 |
2.5 |
2.5 |
__ |
__ |
__ |
__ |
__ |
__ |
|
|
200 |
2.5 |
2.5 |
2.5 |
3.75 |
__ |
__ |
__ |
__ |
__ |
__ |
|
|
300 |
5 |
5 |
5 |
5 |
__ |
__ |
__ |
__ |
__ |
__ |
|
|
400 |
5 |
5 |
5 |
5 |
2.5 |
__ |
__ |
__ |
__ |
__ |
|
|
500 |
10 |
10 |
10 |
7.5 |
2.5 |
__ |
__ |
__ |
__ |
__ |
|
|
600 |
10 |
10 |
10 |
10 |
5 |
__ |
__ |
__ |
__ |
__ |
|
|
I-LMZC-10-4 |
50 |
__ |
__ |
2.5 |
__ |
__ |
__ |
__ |
__ |
__ |
__ |
|
75 |
2.5 |
3.75 |
3.75 |
2.5 |
__ |
__ |
__ |
__ |
__ |
__ |
|
|
100 |
5 |
5 |
5 |
5 |
2.5 |
1.5 |
__ |
__ |
__ |
__ |
|
|
150 |
5 |
5 |
5 |
7.5 |
3.75 |
1.5 |
__ |
__ |
__ |
__ |
|
|
200 |
7.5 |
7.5 |
7.5 |
10 |
5 |
2.5 |
5 |
5 |
__ |
2.5 |
|
|
300 |
10 |
10 |
15 |
15 |
7.5 |
5 |
7.5 |
7.5 |
__ |
3.75 |
|
|
400 |
15 |
20 |
20 |
20 |
10 |
7.5 |
7.5 |
7.5 |
2.5 |
5 |
|
|
500 |
20 |
25 |
25 |
25 |
10 |
7.5 |
10 |
10 |
2.5 |
5 |
|
|
600 |
20 |
25 |
30 |
25 |
10 |
7.5 |
10 |
10 |
3.75 |
7.5 |
|
Lolu chungechunge lusetshenziswa kabanzi kumakhabethe okusabalalisa ama-voltage aphansi, amaphaneli okulinganisa amamitha, kanye nezinhlelo ezishintshayo zezimboni. I-Through Core Current Transformer ifaneleka ngokukhethekile amaphrojekthi okubuyisela lapho amabhasi noma izintambo ezikhona zingakwazi ukunqanyulwa phakathi nokufakwa. Isekela ukusebenza okuqhubekayo ezindaweni zasendlini ezinomswakama ozinzile nokulawula izinga lokushisa.
Kusetshenziswa kakhulu ezinhlelweni zamandla kagesi ezidinga ukuqapha okunembile kwamanje kanye nokuxhumana kokuvikela. Ifanele ukufakwa kwezimboni kanye nezinga lensizakalo.
Ukufakwa ngendlela efanele kubalulekile ukuze kuqinisekiswe ukunemba nokusebenza okuphephile. I-conductor eyinhloko kufanele idlule phakathi nendawo emaphakathi ukuze igcine ukusatshalaliswa kwe-flux kazibuthe elinganayo.
Uma kuqhathaniswa nama-transformer avamile amanje, i-Breth Core Current Transformer inikeza ukusebenza kahle okuthuthukisiwe kanye nokuzinza kwesikhathi eside ezinhlelweni zokulinganisa zikagesi.
Q1: Uyini umsebenzi oyinhloko walo mkhiqizo?
IMP: Isetshenziselwa ukulinganisa nokuvikela kwamanje ezinhlelweni zikagesi, ikakhulukazi ekusabalaliseni nasekufakweni kwamamitha.
Q2: Ingabe ingafakwa ngaphandle kokuvala uhlelo?
A: Yebo, idizayini yayo ye-split-core ivumela ukufakwa ngaphandle kokunqamula umqhubi oyinhloko.
Q3: Yiziphi izinhlelo ezihambisana nazo?
A: Ilungele ukushintshwa kwamandla kagesi aphansi naphakathi, okuhlanganisa i-RMU namaphaneli okulawula.
I-Q4: Liyini izinga le-insulation?
A: Izinga le-insulation lenzelwe izindawo zokusabalalisa ezimbonini futhi liqinisekisa ukusebenza okuphephile ngaphansi kwezimo zikagesi ezilinganiselwe.
Q5: Ingasetshenziswa ngaphandle?
A: Ngokuyinhloko yakhelwe ukusetshenziswa kwangaphakathi; ukufakwa kwangaphandle kudinga indawo ebiyelwe eyengeziwe yokuvikela.
Q6: Idinga kangaki ukunakekelwa?
A: Ngaphansi kwezimo zokusebenza ezijwayelekile, ukuhlolwa ngezikhathi ezithile kwanele, ngaphandle kokunakekelwa okuvamile okudingekayo.
Inothi lokugcina: Lokhu Nge-Core Current Transformer yakhelwe ukusebenza okuzinzile kwesikhathi eside ezinhlelweni zesimanje zokusabalalisa amandla, iqinisekisa ukulinganisa okuthembekile nokusebenza kokuvikela.
