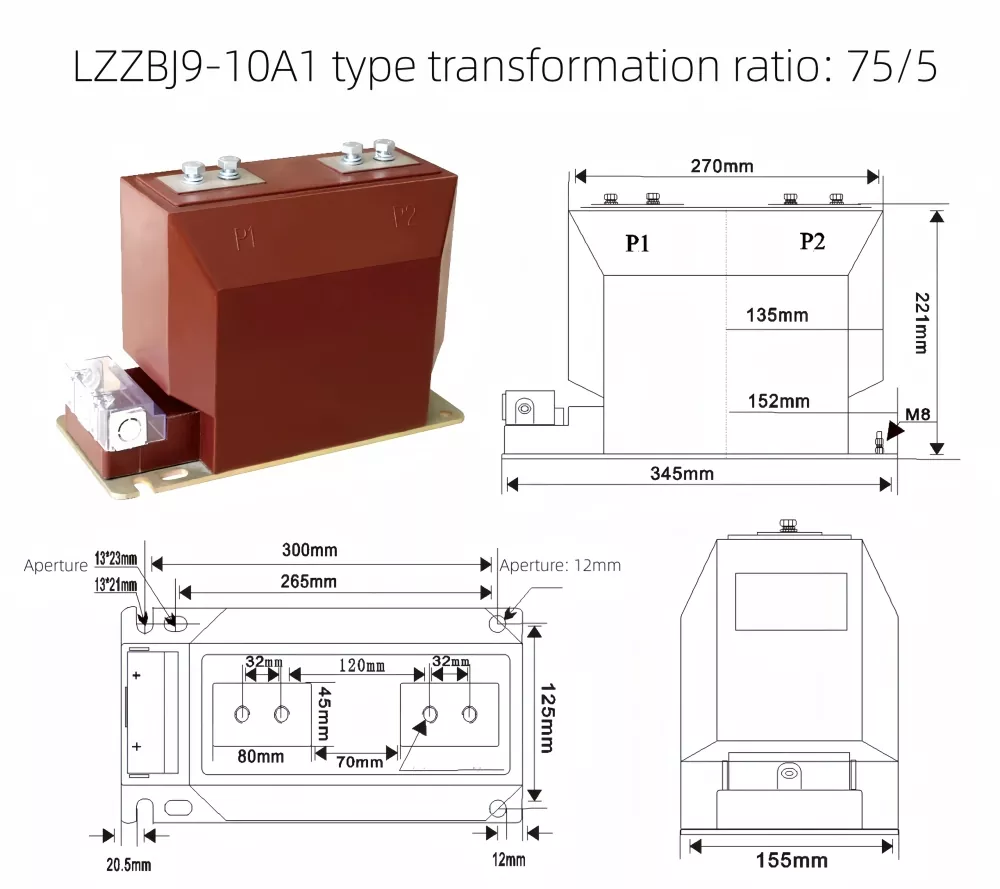

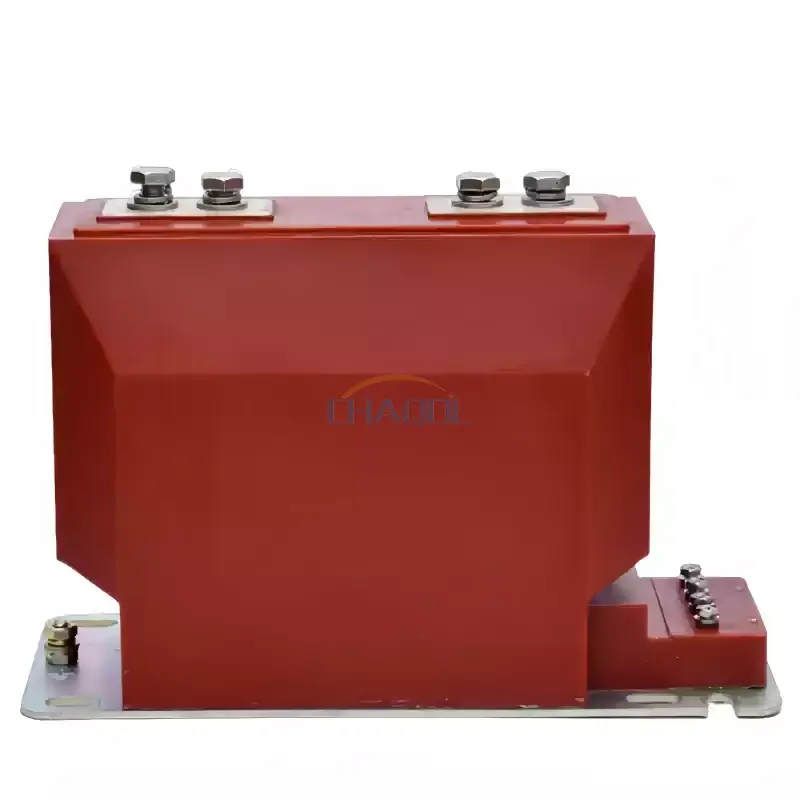

I-10KV Indoor Current Transformer (imodeli LZZBJ9-10) yakhelwe ukulinganisa okunembile kwamanje kanye nokuvikelwa kumasistimu wamandla angaphakathi ane-voltage emaphakathi. Ivamise ukufakwa kumaphaneli ama-switchgear, amakhabethe okulinganisa amamitha, kanye neziteshi ezincane ezihlangene lapho ukuphuma kwesiginali okuzinzile nokuthembeka kokufakwa kuyadingeka ngaphansi kokusebenza okuqhubekayo.
Ekusabalaliseni okuzenzakalelayo kokusatshalaliswa kanye namanethiwekhi wamandla ezimboni, i-10KV Indoor Current Transformer idlala indima ebalulekile ekuguquleni izinga eliphezulu lamanje libe amasiginali ajwayelekile wesibili wamathuluzi okulinganisa kanye nokudluliselwa kokuvikela. Isakhiwo sayo se-epoxy resin cast sithuthukisa amandla emishini futhi siqinisekise ukusebenza okuzinzile endaweni enomswakama noma enothuli yasendlini.
Lolu chungechunge lusebenzisa inqubo yokuphonsa i-epoxy resin evalwe ngokugcwele, ehlanganisa umongo wensimbi, ukusonteka kwesibili, kanye nesistimu yokuhlukanisa ibe umzimba ohlangene. Idizayini inciphisa ubungozi bokukhipha ingxenye futhi ithuthukise amandla e-dielectric, iyenze ifanelekele ukusebenza isikhathi eside kugiya elinamandla lokushintshwa.

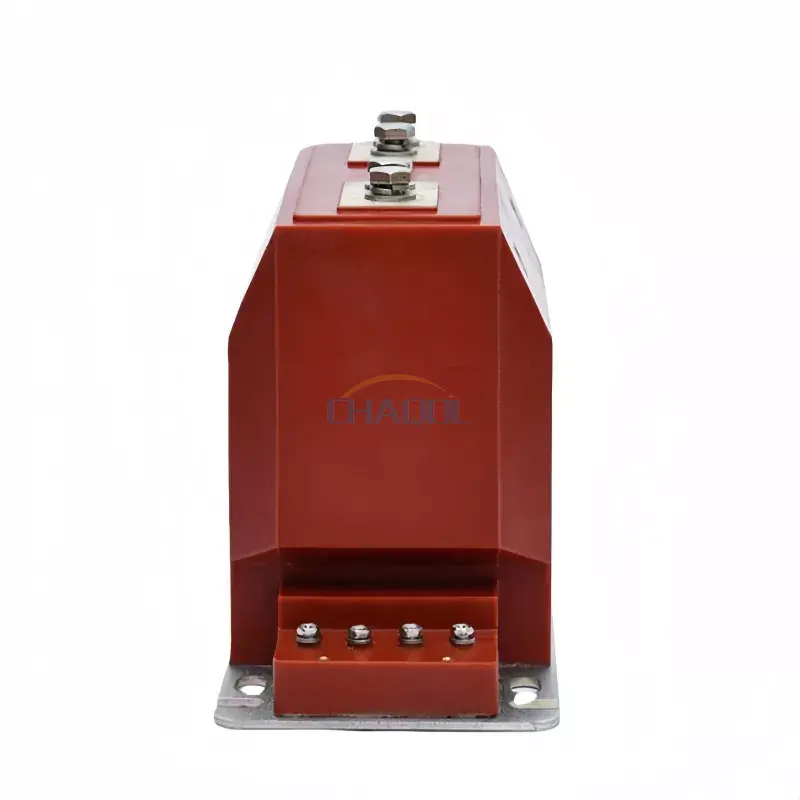

I-10KV Indoor Current Transformer iphinde ifakwe ibhokisi letheminali eliqinisiwe lokuvikela izintambo zesibili, kanye nesisekelo esiphansi esiqinisekisa ukufakwa okuphephile nokuhambisana nezindinganiso zokuphepha zikagesi ezindaweni zezimboni.
Imodeli ye-LZZBJ9-10 isekela ukucushwa kwamanje okuyisisekelo okuningi kanye namakilasi okunemba ukuze kuhlangatshezwane nezidingo ezihlukene zamamitha nokuvikela ezinhlelweni zokusabalalisa amandla.
|
Imodeli |
Ikalwe okwamanje |
Inhlanganisela yezinga lokunemba |
Okuphumayo okulinganiselwe |
Ilinganiselwe i-thermal current yesikhathi esifushane |
Ilinganiselwe ukuqina okuguquguqukayo okwamanje |
|
I-LZZBJ9-10A |
5A |
0.2/10P10 0.5/10P10 0.2/10P10 0.5/10P10
|
10/15VA 10/15VA 10/15VA 10/15VA |
0.45KA/s |
1.13KA/s |
|
10A |
0.9KA/s |
2.25KA/s |
|||
|
15A |
1.35KA/s |
3.38KA/s |
|||
|
20A |
1.8KA/s |
4.5KA/s |
|||
|
30A |
2.7KA/s |
6.75KA/s |
|||
|
40A |
3.6KA/s |
9KA/s |
|||
|
50A |
4.5KA/s |
11.25KA/s |
|||
|
75A |
6.75KA/s |
16.88KA/s |
|||
|
100A |
9KA/s |
22.5KA/s |
|||
|
150A |
13.5KA/s |
33.75KA/s |
|||
|
200A |
18KA/s |
45KA/s |
|||
|
300A |
24.5KA/s |
61.25KA/s |
|||
|
400A |
24.5KA/s |
61.25KA/s |
|||
|
500A |
32KA/s |
80KA/s |
|||
|
600A |
32KA/s |
80KA/s |
|||
|
800A |
32KA/s |
80KA/s |
|||
|
1000A |
50KA/s |
125KA/s |
|||
|
1200A |
50KA/s |
125KA/s |
|||
|
1500A |
50KA/s |
125KA/s |
|||
|
2000A |
50KA/s |
125KA/s |
|||
|
2500A |
50KA/s |
125KA/s |
Isilinganiso sesibili samanje: 5A noma 1A
Izinga lokuhlukanisa elilinganiselwe: 12/42/75KV
Lolu hlobo lwe-transformer yamanje lusetshenziswa kakhulu emakhabetheni okusabalalisa amandla, iziteshi ezingaphansi zasendlini, izinhlelo ezishintshayo zezimboni, nezinhlelo zokuphatha amandla. Ifaneleka ikakhulukazi ezindaweni ezidinga ukunemba kwesilinganiso esiphezulu nokuzinza kwesikhathi eside ngaphansi kwezimo eziqhubekayo zomthwalo.
I-10KV Indoor Current Transformer ivamise ukuhlanganiswa nama-relay okuvikela, amamitha wamandla, nezinhlelo zokuqapha kungqalasizinda yegridi ehlakaniphile namanethiwekhi okulawula amandla ezimboni.

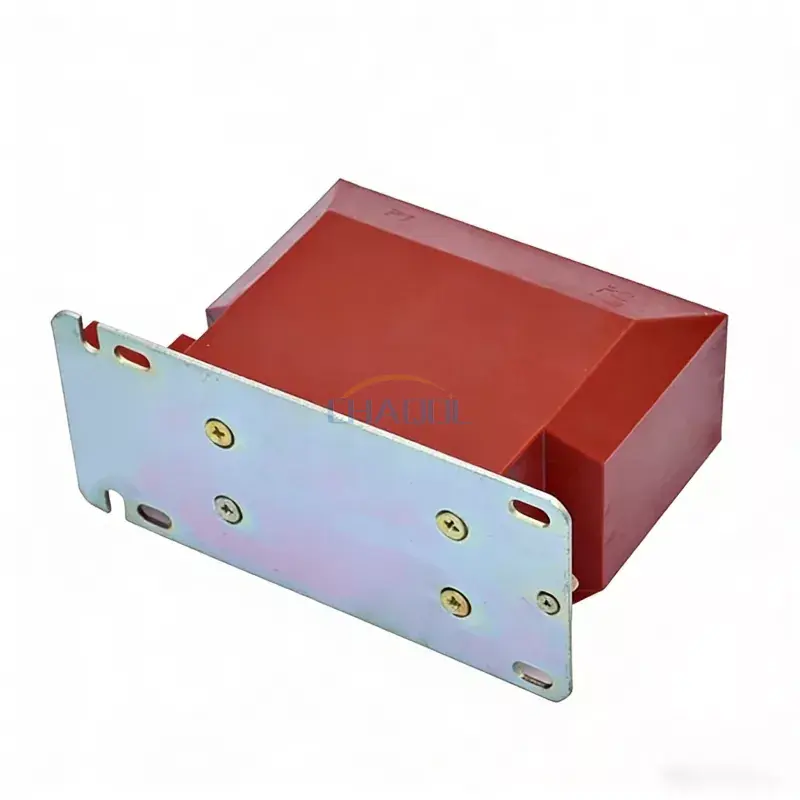

Isisekelo somkhiqizo siklanywe ngezimbobo eziningi ezifakiwe kanye namatheminali aphansi, okuqinisekisa ukulungiswa okuzinzile nokuphepha kukagesi ngesikhathi sokusebenza. Ibhokisi lesibili letheminali linikeza ukuvikeleka okwengeziwe ekuthinteni ngengozi nasekuphazamisekeni kwangaphandle.
Isakhiwo sayo esihlangene sivumela ukufakwa kalula ezinhlelweni ezilinganiselwe ze-switchgear, ukunciphisa ubunzima bezintambo kanye nokwenza ngcono ukusebenza kahle kokulungisa.
Q1: Uyini umsebenzi oyinhloko walesi siguquli samanje?
IMP: Iguqula i-high primary current ibe yamanje esezingeni eliphansi yesibili ukuze kulinganiswe amamitha kanye nokuvikelwa kumasistimu e-medium-voltage angaphakathi.
Q2: Iphi i-10KV Indoor Current Transformer evamise ukufakwa?
A: Isetshenziswa kakhulu kuma-switchgear angaphakathi, amakhabethe okusabalalisa, kanye neziteshi ezincane ezihlangene ezinhlelweni zamandla ezimboni kanye nezinsiza.
Q3: Yiziphi izinzuzo zayo ezibalulekile uma ziqhathaniswa nama-CT avamile?
A: Ihlinzeka nge-epoxy resin insulation, umklamo ohlangene, ukunemba okuphezulu, nokumelana okuqinile nomswakama nothuli, okwenza ifanelekele ukusebenza isikhathi eside.
Q4: Ingabe ingakwazi ukusekela ububanzi bamanje obuhlukile?
A: Yebo, izilinganiso eziningi zamanje eziyinhloko ziyatholakala ukuze zifane nezidingo ezihlukene zomthwalo nesistimu.
Q5: Ingabe ilungele izinhlelo zokusebenza zegridi ehlakaniphile?
IMPENDULO: Yebo, isetshenziswa kakhulu ezinhlelweni zemitha ezihlakaniphile kanye namanethiwekhi okusabalalisa azenzakalelayo ngenxa yokuphuma kwayo kwesignali okuzinzile.
Q6: Ingabe idinga ukulungiswa njalo?
A: Akukho ukulungiswa njalo okudingekayo. Ukuhlolwa ngezikhathi ezithile kwamatheminali kanye nesimo sokufakwa kwensimbi ngokuvamile kwanele.
