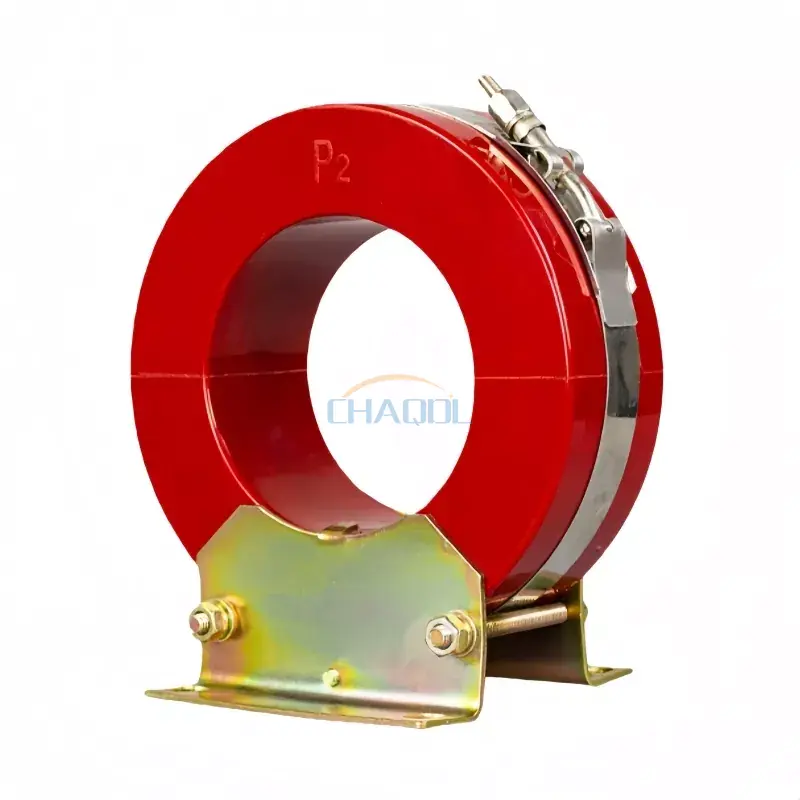

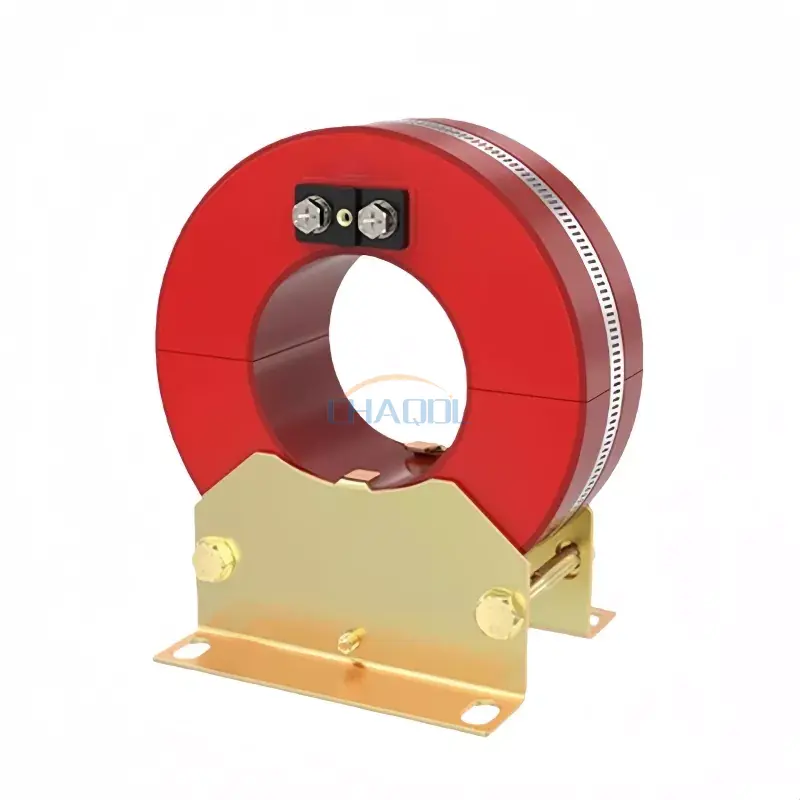

I-Zero Sequence Current Transformer yakhelwe ukuthola amaphutha omhlaba nokuxhumana kokuvikela ezinhlelweni zamandla aphakathi nendawo. Ngokuvamile isetshenziswa kumanethiwekhi okusabalalisa angu-10kV ukuze kuqashwe insalela yamanje ekhiqizwa ngaphansi kwezimo ezingalingani noma zephutha, ukusiza ukudluliselwa kokuvikela kuhlukanise ngokushesha amasekhethi anephutha futhi kuthuthukise ukuphepha nokuthembeka kwesistimu.
Le modeli (LXK-Φ80-200) isebenzisa ubuchwepheshe bokukhipha i-epoxy resin vacuum enesakhiwo esihlukanisayo, esivumela ukufakwa ngaphandle kokunqamula amakhebuli ayinhloko. Umnyombo ukhiqizwa kusukela kunsimbi ye-silicon egoqelwe ebandayo yezinga eliphezulu, kuyilapho ukujikajika kusebenzisa izikhondatha zethusi ezingenawo umoya-mpilo ukuze kuqinisekiswe ukusebenza kazibuthe okuzinzile nokulahlekelwa okuphansi ngesikhathi sokusebenza isikhathi eside.
Inzuzo eyinhloko yale Zero Sequence Current Transformer isakhiwo sayo esihlukanisayo, esivumela ukufakwa ngaphandle kokunqamula izintambo eziyinhloko. Idizayini eyinhloko enezigaba ezimbili, ehlanganiswe nokulungiswa kwe-clamping, ithuthukisa kakhulu ukusebenza kahle kokufakwa endaweni kumaphrojekthi wokubuyisela kanye nokunakekela.

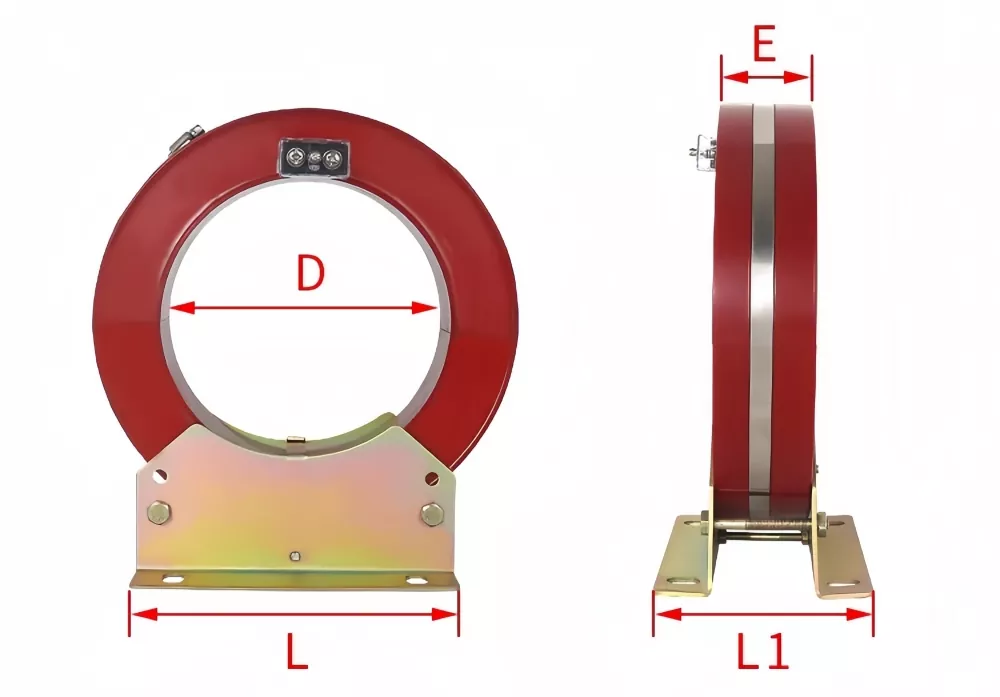

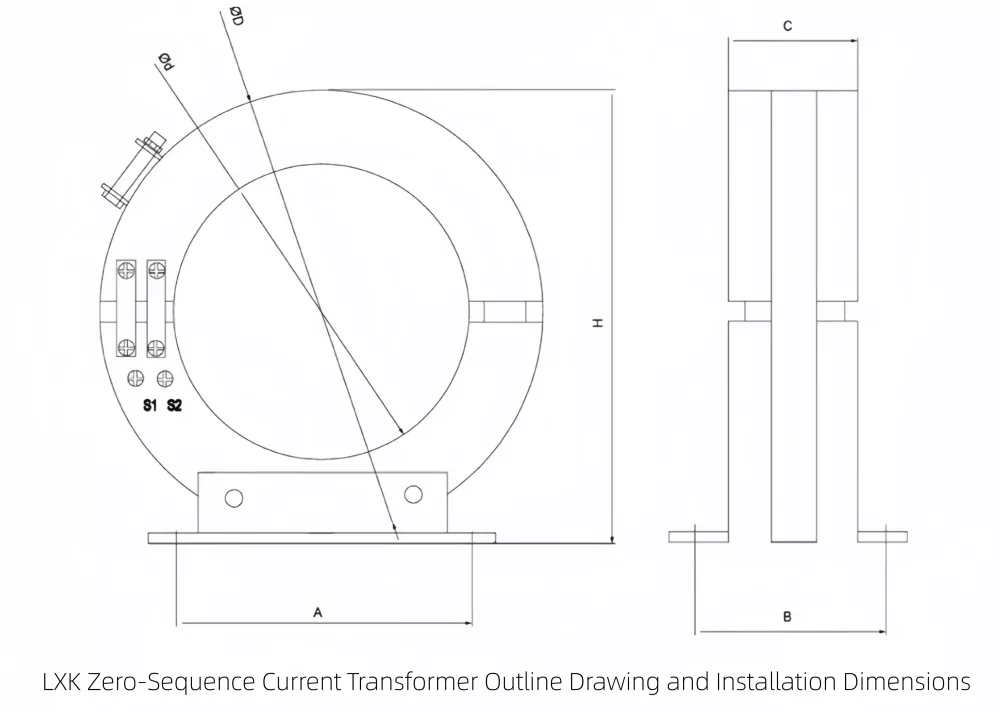

| Imininingwane Yomkhiqizo | D | E | L | L1 |
| I-LXK-80 | Φ80 | 58 | 130 | 123 |
| I-LXK-100 | Φ100 | 58 | 130 | 122 |
| I-LXK-120 | Φ120 | 57 | 130 | 120 |
| I-LXK-150 | Φ150 | 58 | 190 | 123 |
| I-LXK-180 | Φ180 | 58 | 190 | 125 |
| I-LXK-200 | Φ200 | 60 | 280 | 129 |
| I-LXK-240 | Φ240 | 80 | 280 | 167 |
| I-LXK-260 | Φ260 | 55 | 280 | 120 |
| I-LXK-300 | Φ300 | 80 | 280 | 170 |
| Imodeli yokudlulisa | Indlela yokuxhuma ikhoyili edluliselwe | Ivelu yesikali sokudlulisa | Inani lamanje elilandelanayo elinguziro (A) |
| DD-11/60 DD-1/60 |
uxhumano lwechungechunge | 15*1 | 2.4-4.5 |
| 30*1 | |||
| ngokuhambisana | 15*2 | 3-5 | |
| 30*2 | |||
| uxhumano lwechungechunge | 15*1 | 3-5 | |
| 30*1 | |||
| ngokuhambisana | 15*2 | 3-6 | |
| 30*2 |
Izinga lokufaka elilinganiselwe: 0.5/3KV
Isakhiwo se-split-core epoxy resin sivumela ukufakwa ngokushesha ngaphandle kokukhipha izintambo eziyinhloko, ukunciphisa isikhathi sokuphumula ekunakekeleni nasekubuyiseleni kabusha amaphrojekthi. Idizayini iphinde ithuthukise ukuzinza kwemishini kanye nokwethenjwa kokufakwa kwezinto isikhathi eside ezindaweni zikagesi ezinokhahlo.
Idivayisi iletha ukusebenza kokulinganisa okuzinzile ngaphansi kwezimo zamanje ezinsalela eziphansi neziphezulu, okuyenza ifanelekele izinhlelo zokuvikela kumanethiwekhi okusabalalisa ezimboni, iziteshi ezingaphansi, kanye nenhlanganisela ye-switchgear.
1. Ukufakwa: Ukusetshenziswa kwasendlini
2. Ibanga lokushisa: -5℃ ukuya ku-40℃, isilinganiso sansuku zonke ≤ 30℃
3. Imvelo: Izindawo ezingagqwali, ezingcolisa kancane
Q1: Uyini umsebenzi oyinhloko we-Zero Sequence Current Transformer?
Impe
Q2: Ingabe ingafakwa ngaphandle kokuvala uhlelo?
A: Yebo, idizayini ye-split-core ivumela ukufakwa eduze kwezintambo ezikhona ngaphandle kokunqanyulwa.
I-Q3: Ingabe isilinganiso samanje silungisiwe noma singenziwa ngokwezifiso?
A: Isilinganiso samanje esiyinhloko singenziwa ngendlela oyifisayo ngokusekelwe ezidingweni zesistimu.
Q4: Hlobo luni lwezinhlelo zokuvikela oluhambisana nalo?
A: Ihambisana namafault relays, amaphaneli okuvikela, namasistimu okuqapha ama-switchgear.
I-Q5: Yiziphi izinto ezisetshenziswa kumongo kanye nokujika?
A: Isebenzisa insimbi yensimbi ye-silicon egoqelwe ngokubanda kanye namawindi ethusi angenawo umoya-mpilo ukuze ulahlekelwe kancane nokusebenza kahle okuphezulu.
Q6: Ivamise ukufakwa kuphi?
A: Ivamise ukufakwa kumayunithi ayindandatho amakhulu, amakhabethe okusabalalisa, ama-transformer, namaphaneli okuvikela ama-circuit breaker.
