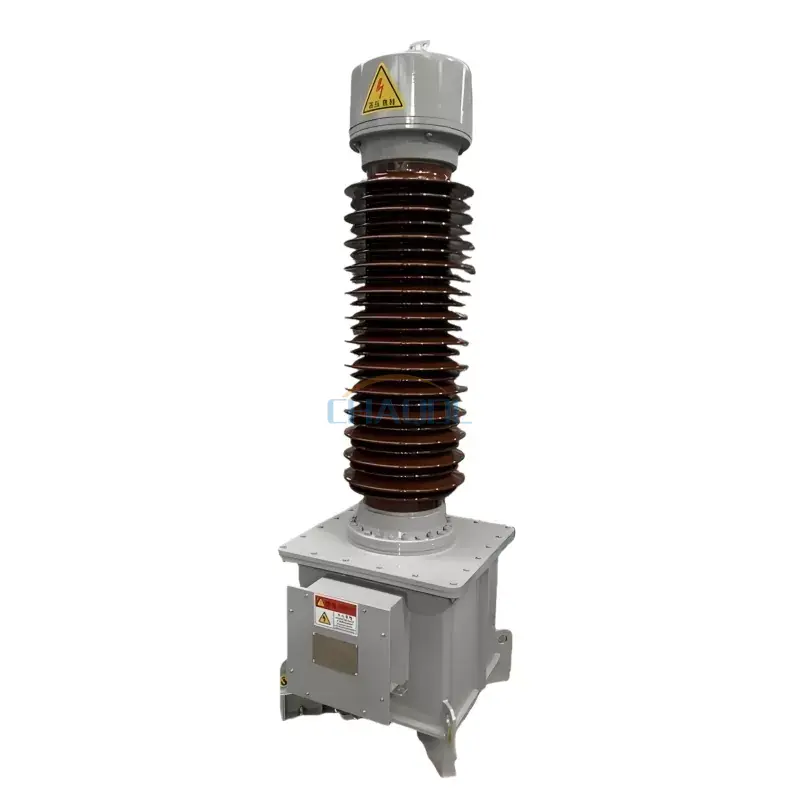

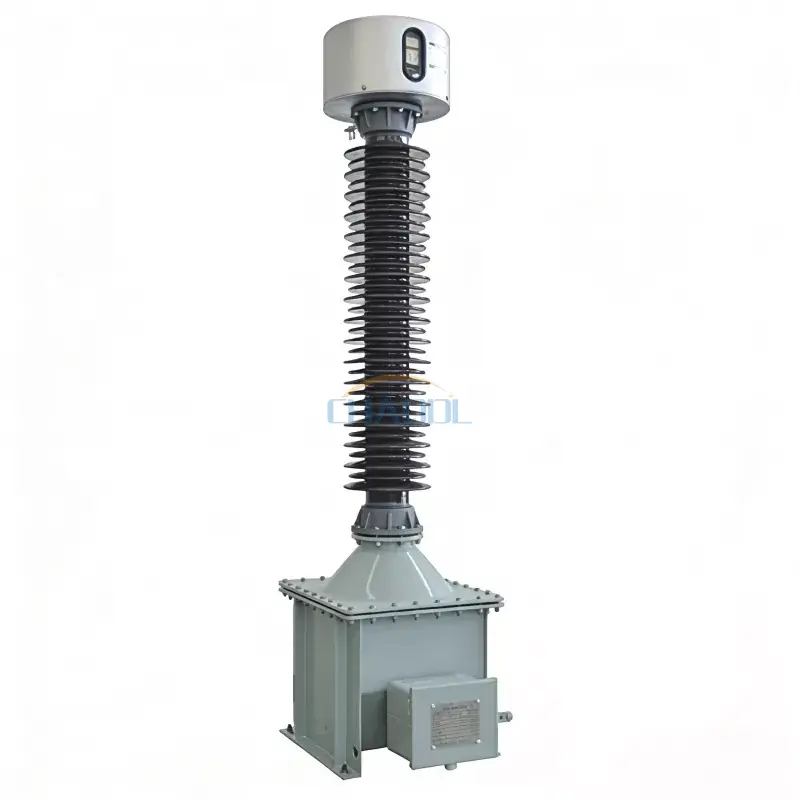

I-Anqiang Power iveza ukusebenza kwayo okuphezuluI-I-I-I-Oil Immersed Electromagnetic Voltage Transformeryakhelwe ukulinganisa okuthembekile nokuvikela ezinhlelweni zamandla aphakathi nendawo naphezulu. Uchungechunge lwe-JDX lwenzelwe amanethiwekhi angu-66KV, 110KV, kanye nama-220KV, asekela ukusebenza okuzinzile eziteshini ezingaphansi, izintambo zokudlulisela, nezinhlelo zokusabalalisa zezimboni. Uhlelo lwayo lwe-insulation yangaphakathi lwamukela isakhiwo se-capacitive esilinganiselwe ukuze kuqinisekiswe ukusatshalaliswa kwensimu kagesi efanayo kanye nokuzinza kokusebenza kwesikhathi eside ngaphansi kwezimo zegridi ezidingekayo.
Lo mkhiqizo usetshenziswa kakhulu ezindaweni zokudluliswa kwamandla lapho kudingeka khona isilinganiso esinembile sikagesi kanye nokuvikelwa kwesistimu. Ngomklamo othuthukisiwe wokufaka uwoyela kanye nesakhiwo somshini esiqinisiwe, iyunithi iqinisekisa ukusebenza okungaguquki ngisho nangaphansi komthwalo oguquguqukayo kanye nengcindezi yendawo ezungezile.
II-I-I-I-Oil Immersed Electromagnetic Voltage Transformeryamukela isakhiwo sethangi likawoyela elivaliwe elihlanganiswe nesistimu yokwandisa insimbi engagqwali ukuze kugcinwe ingcindezi yangaphakathi ezinzile. Izinga likawoyela lingabhekwa ngokubonakalayo ngefasitela lokuhlola elizinikele, elisiza opharetha ukuthi bahlole ngokushesha izimo zokusebenza ngaphandle kokuhlakazwa.
Izingxenye zensimbi ezingukhiye eziveziwe ziphathwa nge-hot-dip galvanizing kanye ne-powder coating ukuze kuthuthukiswe ukumelana nokugqwala. Amatheminali esibili ahlelwe ngokucushwa okunengqimba, ahlukanisa ama-metering kanye namawindi okuvikela ukuze kuncishiswe ukuphazamiseka nokuthuthukisa ukunemba kokulinganisa.
Imingcele yokusebenza kukagesi yochungechunge lwe-JDX yamazinga ahlukene kagesi:
| I-voltage eyisisekelo elinganiselwe (kV) | 66/69 | 110/115 | 132/138 | 150 | 220/230 | ||
| I-voltage enkulu yemishini (kV) | 72.5 | 123/126 | 145 | 325 | 460 | ||
| Isilinganiso sokuvama (Hz) | 50/60 | ||||||
| Isilinganiso samandla efrikhwensi ukumelana ne-voltage (kV) | 140/160 | 230 | 275 | 750 | 1050 | ||
| Isilinganiso sombani olinganiselayo ukumelana ne-voltage (kV) | 325/350 | 550 | 650 | 1500 | 2100 | ||
| Ibanga le-arc flash | 780 | 1050 | 1300 | ||||
| Umthwalo wemishini (N) | 1250 | 1250 | 1250 | 1250 | 1250 | ||
| Izimpawu zetheminali yesibili | 1a-1n | 2a-2n | da-dn | ||||
| Izinga lokunemba | 0.2 | 0.5 | 3P | ||||
| Okuphumayo okulinganiselwe (VA) | 100 | 250 | 300 | ||||
| 150 | 150 | 300 | |||||
| 150 | — | 300 | |||||
| I-Thermal limit output (VA) | 2000 | ||||||
| I-voltage factor elinganiselwe | 1.2/Iyaqhubeka;1.9/8h(66KV) 1.2/Iqhubekayo;1.5/30s(110-230KV) |
||||||
Ezinhlelweni zamandla zanamuhla, iI-I-I-I-Oil Immersed Electromagnetic Voltage Transformerivamise ukutshalwa eziteshini ezincane ezingaphandle, emihubheni yokudlulisela, kanye naseziteshini zokusabalalisa amandla kagesi aphezulu. Isekela ukulinganisa okunembile kwamandla kagesi ukuze kulinganiswe imali engenayo kanye nokuvikelwa kwe-relay, iqinisekisa ukusebenza kwegridi okuzinzile ngaphansi kwezimo eziyinkimbinkimbi zomthwalo.
Idizayini ifaneleka ikakhulukazi izindawo ezidinga ukuthembeka okuphezulu kokufakwa, njengeziteshi ezisetshenziswayo, izimboni zamandla kagesi, namanethiwekhi kagesi esifunda.

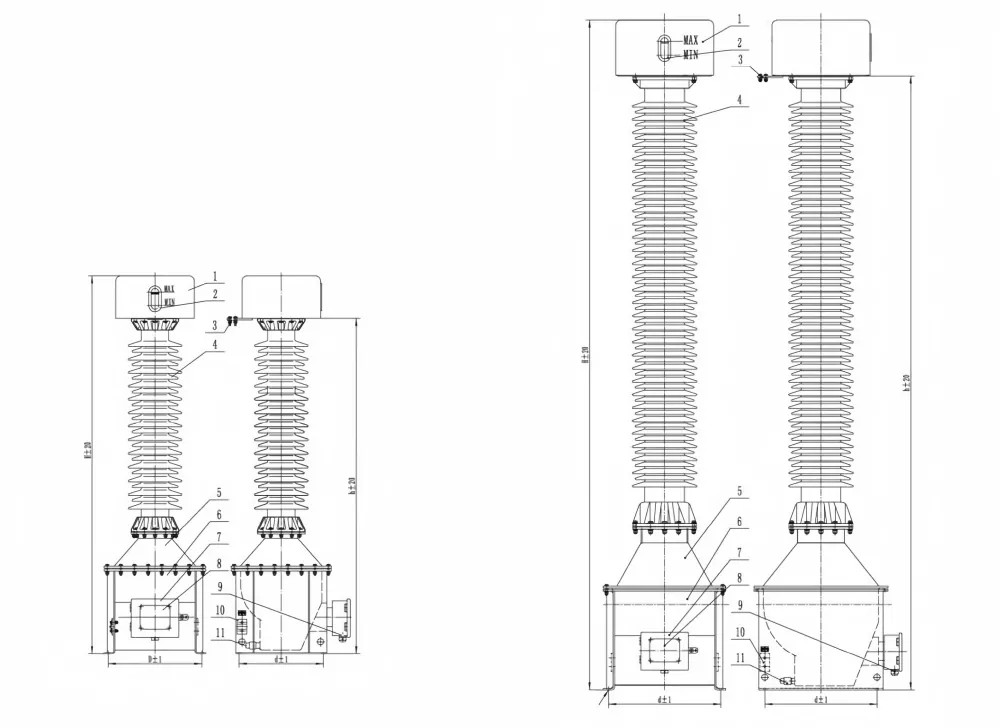

| Inombolo | Igama |
| 1 | Isandisi |
| 2 | Iwindi lokuhlola izinga likawoyela |
| 3 | Itheminali eyodwa |
| 4 | Umkhono we-porcelain |
| 5 | Isihlalo esiphakanyisiwe |
| 6 | Ithangi |
| 7 | Ibhokisi lokuhlangana lesibili |
| 8 | I-Nameplate |
| 9 | Imbobo yesibili yokuphuma |
| 10 | Ipuleti lokugawula |
| 11 | I-valve yokukhipha uwoyela |
Ngaphambi kokugunyazwa, qinisekisa ukubeka phansi okulungile futhi uqinisekise i-polarity yezintambo zesibili. I-transformer kufanele ifakwe esisekelweni esizinzile esinemvume eyanele yokugcina ibanga lokuhlukanisa nokusebenza okuphephile. Ukuhlolwa okujwayelekile kwezinga likawoyela kanye nesimo sokuvala kuyanconywa ngesikhathi sokusebenza isikhathi eside.
Q1: Yiziphi izinhlelo ezifanele le transformer kagesi?
A: Ivamise ukusetshenziswa kumasistimu okudlulisa amandla angu-66KV kuya ku-220KV ukuze kukalwe futhi kuvikelwe.
Q2: Ingasetshenziswa ngaphandle?
A: Yebo, isakhiwo sakhelwe iziteshi ezingaphandle ezine-anti-corrosion kanye nokusebenza kokufakwa okuvalekile.
Q3: Iyini imfuneko yesondlo?
A: Ukuhlolwa kwezinga likawoyela okuvamile nokuqiniswa kwetheminali kuyanconywa ukuze kube nokusebenza okuzinzile kwesikhathi eside.
Q4: Ingabe isekela amakilasi okunemba ahlukene?
A: Yebo, inhlanganisela yokunemba eminingi iyatholakala kumamitha nokuvikela izinhlelo zokusebenza.
Q5: Kuqinisekiswa kanjani ukusebenza kwe-insulation?
A: Iyunithi isebenzisa ukufakwa kukawoyela nge-capacitive grading ukuze kugcinwe ukusatshalaliswa kwenkundla kagesi okufanayo.
Q6: Iyini impilo yesevisi?
IMP: Ngaphansi kwezimo zokusebenza ezijwayelekile, isekela isevisi yesikhathi eside enokonakala okuncane.
