Outdoor Permanent Magnet Circuit Breaker

Model:ZW32-24G

I-Anqiang Power's yangaphandle ehlala unomphela i-circuit breaker ithole ukunconywa okungaguquki kumakhasimende aphesheya kwezilwandle. Lesi sihlukanisi sesifunda sinikeza izinzuzo ezifana nomthamo wokuphakelwa kwamandla othuthukisiwe kanye nokuncipha kokulahlekelwa kwegridi yamandla. Izinga layo likagesi elisebenzayo lingenziwa ngendlela oyifisayo ukuze libe ngu-12KV noma 24KV, futhi lithunyelwa emazweni amaningana ahlanganisa i-Indonesia, iRussia, iNigeria, ne-Angola.

Thumela Uphenyo

Incazelo Yomkhiqizo

IOutdoor Permanent Magnet Circuit Breaker(Amamodeli: ZW32-12G / ZW32-24G) iyisihlukanisi sesifunda se-vacuum sangaphandle esisebenza kahle esidizayinelwe u-12kV kanye no-24kV amanethiwekhi okusabalalisa amandla aphakathi nendawo. Ihambisana nomshini wokusebenza kazibuthe osezingeni eliphezulu, iletha ukushintsha okusheshayo, ukwethembeka okuphezulu, ukusetshenziswa kwamandla okuphansi, nokusebenza okungenakulungiswa. Isetshenziswa kakhulu ukushintsha imisinga yomthwalo, imisinga yokulayisha ngokweqile, kanye namaza ahamba kancane kumagridi kagesi asemadolobheni nasezindaweni zasemakhaya, iziteshi ezincane, ukusebenza kwezimayini, izinhlelo zokufaka ugesi kwezitimela, kanye namaphrojekthi wamandla avuselelekayo.

Uma kuqhathaniswa nama-circuit breaker asebenza entwasahlobo, indlela yokusebenza kazibuthe unomphela inikeza isakhiwo esilula, izingxenye ezimbalwa ezihambayo, impilo yesevisi ende, nokusebenza okungaguquguquki kokuvula nokuvala. Lokhu kuyenza ibe yisixazululo esifanele samagridi ahlakaniphile esimanje, amasistimu ezishintshayo okusabalalisa, nezinhlelo zokusebenza ezidinga ukushintshashintsha njalo.

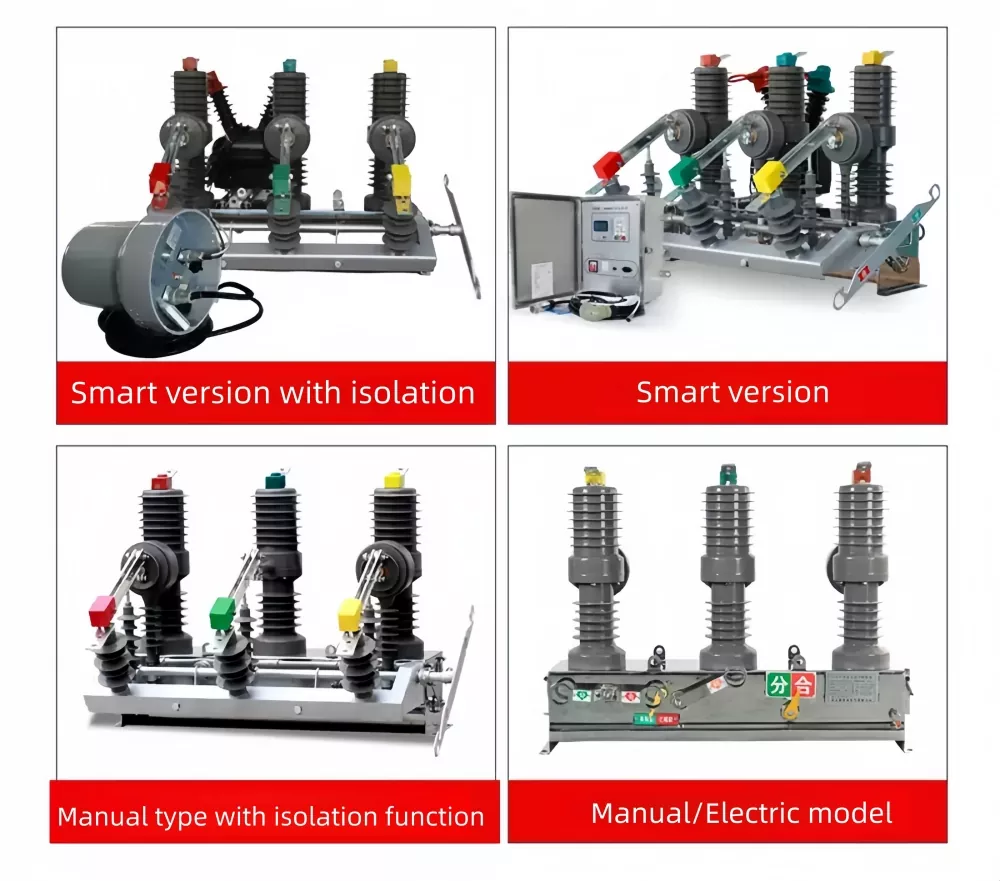

Imodeli nokubukeka

Outdoor Permanent Magnet Circuit Breaker

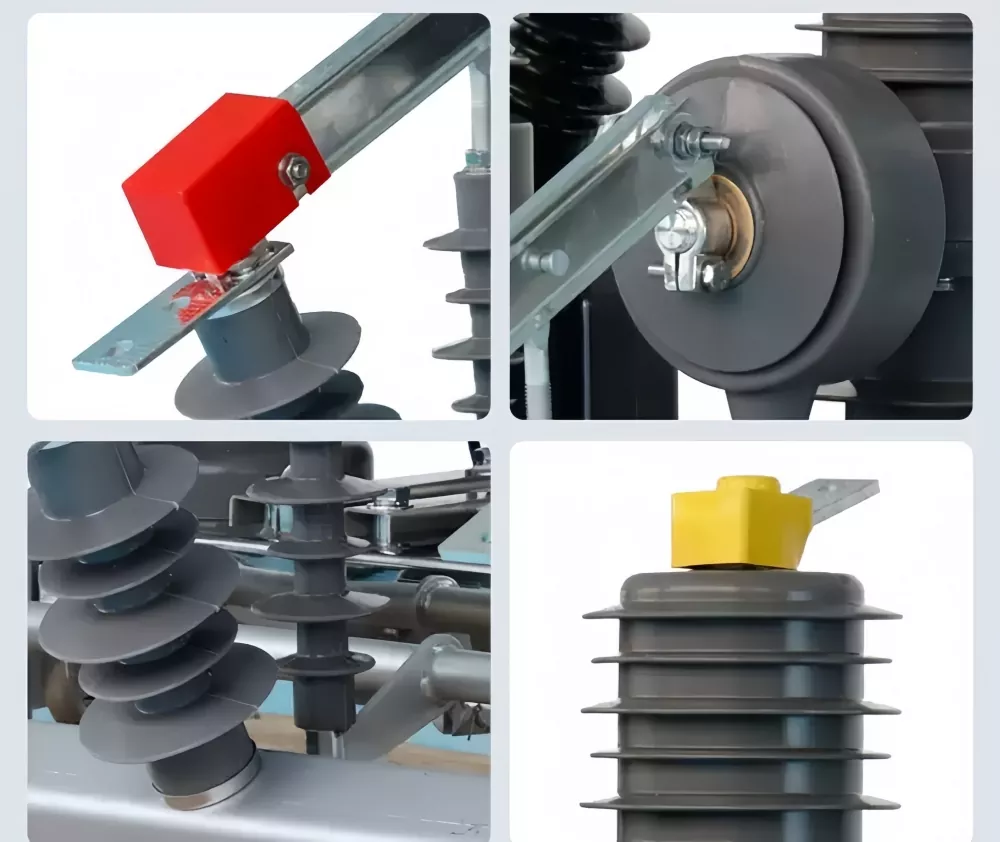

Imininingwane Yomkhiqizo

Outdoor Permanent Magnet Circuit Breaker Details

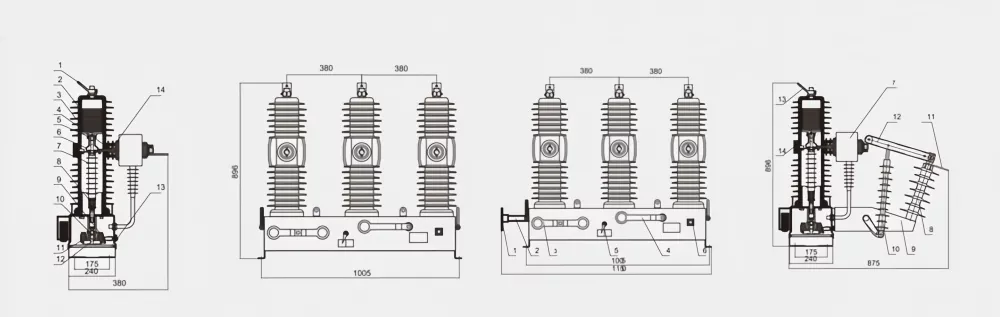

Ubukhulu bomkhiqizo

Outdoor Permanent Magnet Circuit Breaker Dimensions

1-Okuphumayo okuphezulu

2-Isiphazamisi seVacuum

3-Insulating tube

4-Umugqa wokuphuma ophansi

5-Isiqeshana sokuqhuba

6-Ukuxhumana okuthambile

I-7-Insulating pull rod

8-Contact pressure spring spring

9-Intwasahlobo yokuvula

10-Driver uxhumano ibhodi

I-11-Mechanism okukhipha shaft

12-Indlela yokusebenza

13-Ibhokisi lesikhungo

I-14-I-transformer yamanje

1-isibambo esisebenzayo

2-Isolated spindle

3-isibambo sokuvula nesibambo sokuvala sesekhethi

4-Isibambo sesitoreji samandla se-Circuit breaker

5-Imiyalelo yokuhlukanisa kanye nenhlanganisela

I-6-Wiring plug

7-I-transformer yamanje

8-Isivikeli

9-I-Isolation rack

10-Isivikelo sentonga yesampula

Ibhulokhi yetheminali engu-11 (uhlangothi lokokufaka)

12-Isikhala sokuzihlukanisa

I-13-Terminal block (ukuphela kokuphumayo)

14-I-breaker

Izici Zomkhiqizo

Indlela yokusebenza kazibuthe esezingeni eliphezulu esebenza ngokushesha, ezinzile, futhi enokwethenjelwa kakhulu.
Idizayini yemishini engalungiswa iqeda ukulungiswa okujwayelekile futhi kunciphisa kakhulu izindleko zokusebenza.
Isiphazamisi se-vacuum esisebenza kahle kakhulu sinikeza amandla amahle kakhulu okucisha i-arc nempilo kagesi eyandisiwe.
Impilo yobumishini ifika10,000 imisebenzi, okwenza ifaneleke ukushintsha izinhlelo zokusebenza njalo.
Isakhiwo sangaphandle esiqinile esinokumelana okuhle kakhulu nomswakama, uthuli, ukuchayeka kwe-UV, nezimo zemvelo ezinzima.
Isekela ukulawula okuhlakaniphile, ukuqapha okukude, nokuhlanganiswa okungenamthungo ne-SCADA kanye nezinhlelo ezizenzakalelayo zokusabalalisa.
IOutdoor Permanent Magnet Circuit Breakerilungele iziteshi ezisetshenziswayo, izinhlelo zamandla ezimboni, ukufakwa kukagesi wezitimela, imiklamo yezimayini, kanye namanethiwekhi okusabalalisa amandla avuselelekayo.

Izingxenye Eziyinhloko

Isiphazamisi sevacuum
Umshini wokusebenza kazibuthe unomphela
Izindlu zokuvikela ezisezingeni eliphezulu
I-transformer yamanje (uyazikhethela)
Ikhabethe lemishini yokusebenza
Amatheminali e-conductive
I-insulating pull rod
Isistimu yokugcina amandla
Isikhombi sendawo yomshini
Isibambo sokusebenza mathupha

Imingcele Yezobuchwepheshe

Into	Ukucaciswa
I-Voltage elinganiselwe	12kV / 24kV
Imvamisa elinganiselwe	50Hz
Ikalwe okwamanje	630A / 1250A
Ikalelwe Ukuphuka Kwesekethe Efushane	20kA/25kA
Isilinganiso esiphakeme Sokumelana Namanje	50kA/63kA
Ilinganiswe Ngokwenza Kwesekethe Emfishane Kwamanje	50kA/63kA
Kukalwe Ukulandelana Kokusebenza	O-0.3s-CO-180s-CO
Impilo Yemishini	10,000 Imisebenzi
Ilinganiselwe Imisebenzi Yokuphulwa Kwesekethe Efushane	Izikhathi ezingu-20
I-Secondary Circuit Power Frequency Melana ne-Voltage	2kV
I-Lightning Impulse Imelana Nogesi	125kV / 145kV
Isisindo	115kg

Izinhlelo zokusebenza

IOutdoor Permanent Magnet Circuit Breakeryakhelwe amasistimu wamandla kagesi aphakathi nendawo adinga ukushintsha okuthembekile, ukulawula okuhlakaniphile, nokuzinza kokusebenza kwesikhathi eside.

Amanethiwekhi okusabalalisa amandla asemadolobheni nasezindaweni zasemakhaya
Iziteshi zikagesi
Amasistimu e-automation wokusabalalisa
Ingqalasizinda yegridi ehlakaniphile
Amaphrojekthi wokufaka ugesi kuloliwe
Izinsiza zezimayini nezimboni ezinzima
Amandla omoya kanye nezitshalo zamandla elanga
Amasistimu okuhambisa nokusabalalisa kwezinsiza
Ingqalasizinda kanye namaphrojekthi kagesi kamasipala

Isimiso Sokusebenza

IOutdoor Permanent Magnet Circuit Breakerihlanganisa isiphazamisi se-vacuum ne-actuator yamagnetic unomphela. Ngesikhathi sokusebenza okuvamile, i-actuator ilawula ngokunembile ukuvuleka nokuvalwa koxhumana nabo sisebenzisa amandla kazibuthe kagesi. Uma kwenzeka iphutha, isiphazamisi se-vacuum sivala ngokushesha i-arc, siqinisekise ukuphazamiseka okuphephile kwephutha lamanje. Uma kuqhathaniswa nezindlela ezivamile zasentwasahlobo, i-actuator yamagnetic unomphela inikeza impendulo esheshayo, ukusebenza okunembe kakhudlwana, ukusetshenziswa kwamandla okuphansi, nokuthembeka okukhulu komshini.

Kungani Khetha I-Permanent Magnet Circuit Breaker?

Indlela yokusebenza yamahhala
Ukusetshenziswa kwamandla okusebenza okuphansi
Impilo ende yesevisi
Ukungaguquguquki okuphezulu kokusebenza
Ifanele izinhlelo zokusebenza zokushintsha imvamisa ephezulu
Ukwehliswa kokugqoka komshini
Ukuhambisana okuhle kakhulu nezinhlelo zokulawula igridi ezihlakaniphile

imibuzo ejwayelekile ukubuzwa

Yini i-Outdoor Permanent Magnet Circuit Breaker?

Kuyi-vacuum vacuum breaker eyi-medium-voltage esebenzisa indlela yokusebenza kazibuthe unomphela esikhundleni sendlela yentwasahlobo evamile, ehlinzeka ngokwethembeka okuphezulu, ukunakekelwa okuphansi, nempilo yesevisi ende.

Yiziphi izinzuzo zendlela yokusebenza kazibuthe unomphela?

Ama-activator kazibuthe ahlala njalo anezingxenye ezimbalwa ezihambayo, ukusetshenziswa kwamandla okuphansi, impendulo esheshayo, ukuqina kwemishini okuthuthukisiwe, futhi akudingi nhlobo ukulungiswa kuyo yonke impilo yabo yesevisi.

Sisetshenziswa kuphi lesi siphuki-sekhethi esivame ukusetshenziswa?

Isetshenziswa kabanzi eziteshini ezingaphansi, amanethiwekhi okusabalalisa izinsiza, amagridi ahlakaniphile, amaphrojekthi wamandla avuselelekayo, izinhlelo zokuphakela ugesi wezitimela, imisebenzi yezimayini, nezinhlelo zokusabalalisa amandla ezimboni.

Ingabe le breaker yesekethe ingasekela ukuqapha okukude?

Yebo. Ingahlanganiswa ne-SCADA, izinhlelo ezizenzakalelayo zokusabalalisa, kanye namadivayisi okuvikela ahlakaniphile okuqapha okukude, isilawuli kude, nezinhlelo zokusebenza zegridi ehlakaniphile.
