24kV Pole Mounted High Voltage Circuit Breaker

I-24kV Pole Mounted High Voltage Circuit Breaker iwuchungechunge lwe-ZW32-24 yochungechunge lwe-vacuum breaker yangaphandle eklanyelwe amasistimu okusabalalisa amandla aphakathi nendawo. Isetshenziswa kakhulu ukushintsha imisinga yomthwalo, ukuphazamisa imisinga yokugcwala ngokweqile, kanye nokususa amaphutha e-short-circuit kumanethiwekhi kagesi. Ifaka ubuchwepheshe obuthuthukisiwe bokuphazamiseka kwe-vacuum, isakhiwo esimelana nokugqwala, nezindlela zokusebenza ezinokwethenjelwa, lesi sihlukanisi sesekhethi siqinisekisa ukusebenza okuphephile nokuzinzile eziteshini ezingaphansi, izikhungo zezimboni, amaphrojekthi wamandla avuselelekayo, nezinhlelo zokusabalalisa izinsiza.

Njengomkhiqizi ochwepheshe we-vacuum vacuum breaker 24kV, sihlinzeka ngezixazululo ezihlala isikhathi eside nezisebenza kakhulu zezinsiza zikagesi, izinkontileka zikagesi, amaphrojekthi e-EPC, kanye nabaqhubi benethiwekhi yokusabalalisa emhlabeni wonke.

Iyini i-24kV Pole Mounted High Voltage Circuit Breaker?

I-24kV pole mounted vacuum circuit breaker (VCB) iyisisetshenziswa sangaphandle esishintshashintshayo se-medium-voltage esifakwe ezigxotsheni zosizo ukuze sivikele amasistimu okusabalalisa amandla ekulayishweni ngokweqile, amasekhethi amafushane, namaphutha kagesi. I-breaker isebenzisa iziphazamisi ze-vacuum ukucisha ama-arcs ngokushesha nangokuphepha, inikeze ukusebenza okuhle kakhulu kokufakwa kanye nempilo ende yesevisi.

Uma kuqhathaniswa nama-circuit breaker wendabuko kawoyela kanye nama-circuit breaker e-SF6, ama-circuit breaker anikeza izinzuzo ezibalulekile ezifaka izidingo eziphansi zokulungiswa, ubungane bemvelo, ukwethembeka okuphezulu kokusebenza, nempilo ende yemishini.

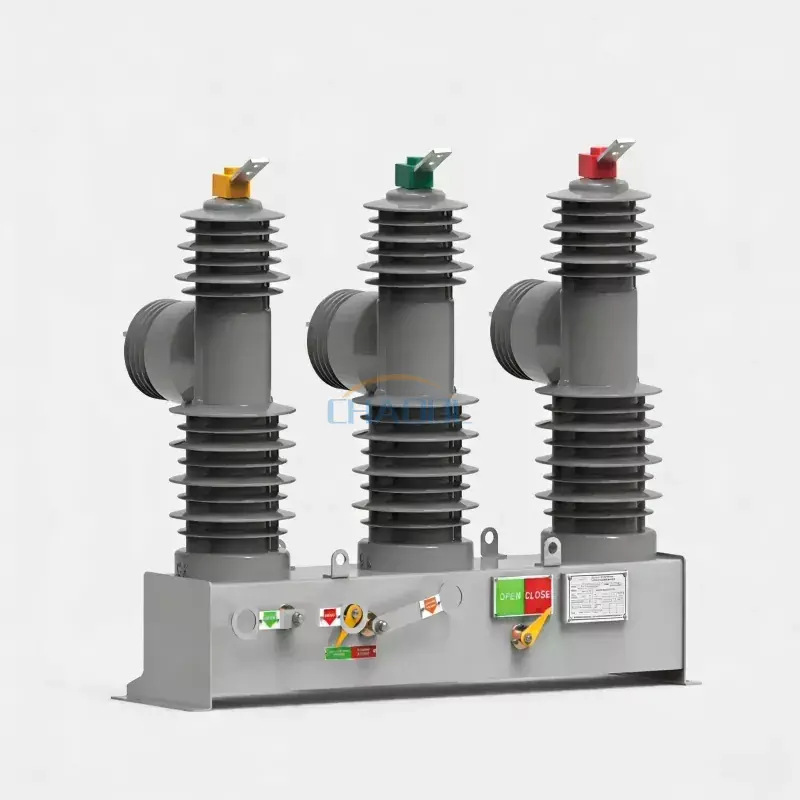

Umdwebo wokubukeka

Isakhiwo se-compact pole-mounted senzelwe ukufakwa kwangaphandle kanye nokusebenza isikhathi eside ezimweni zemvelo ezifunayo. Ukwakhiwa kwayo okuqinile kuqinisekisa ukumelana okuhle kakhulu nomswakama, uthuli, imisebe ye-ultraviolet, nokugqwala.

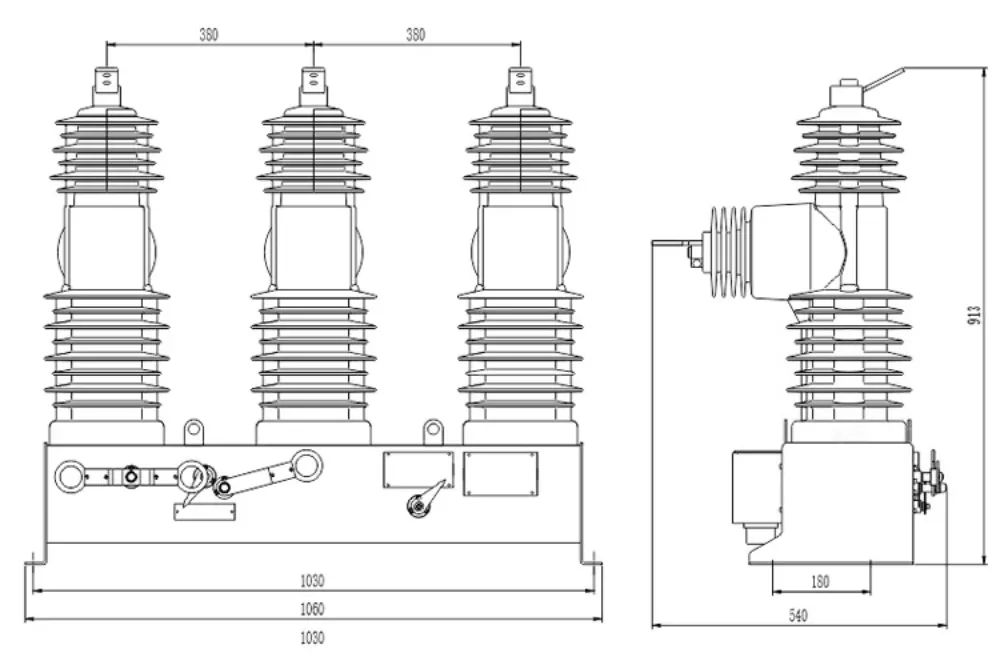

Umdwebo wobukhulu bomkhiqizo

Idizayini yesakhiwo ethuthukisiwe inciphisa izidingo zesikhala sokufaka kuyilapho igcina ukusebenza kokufakwa okuphezulu nokuphepha kokusebenza. Usayizi ohlangene futhi wehlisa izindleko zokuhamba nezokufaka.

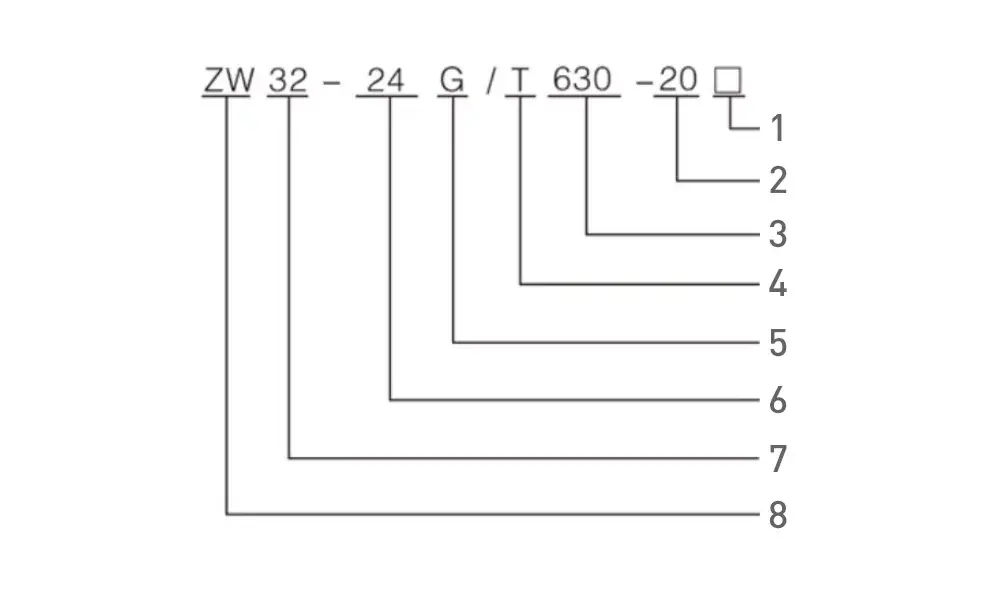

Imingcele Yezobuchwepheshe

1. Isebenza ngogesi

2. Isilinganiso sokunqamuka kwe-short-circuit (KA)

3. Ikalwe okwamanje (A)

4. Indlela yokusebenza yasentwasahlobo

5. Ngeswishi yokuhlukanisa

6. I-voltage elinganiselwe (KV)

7. Dizayina inombolo ye-serial

8. I-outdoor vacuum circuit breaker

Izici Eziyinhloko

I-I-Advanced Vacuum Arc Extinguishing Technology

Isiphazamisi se-vacuum sivala ngokushesha ama-arcs kagesi ngesikhathi sokushintshwa, sithuthukisa kakhulu ukuphepha futhi sinciphise ukuguga kokuxhumana. Lobu buchwepheshe bunikeza amandla amahle kakhulu e-dielectric nokusebenza okuthembekile kokuphazamiseka kuwo wonke umjikelezo wokuphila womkhiqizo.

Ikhono Eliphezulu Lokuphulwa Kwesekethe Emfishane

Ngesilinganiso sokunqamuka kwesekethe emfishane esingafika ku-25kA, isiphukuphuku singakwazi ukuhlukanisa amaphutha futhi sivikele izinto zikagesi ezibalulekile emonakalweni obangelwa izimo zamanje ezingavamile.

Okuhle Kakhulu Kwangaphandle Kwemvelo

Le ndlu yakhiwe ngensimbi engagqwali yekhwalithi ephezulu noma insimbi ehlanganiswe ne-Dacromet futhi iqedwe ngezingubo ezingazweli e-UV. Lokhu kunikeza isivikelo esingcono kakhulu ekugqwaleni, ekufutheni ngosawoti, emswakameni, othulini, nasezimeni zezulu ezimbi.

I-I-Reliable Spring Operating Mechanism

Umshini osebenza entwasahlobo uletha ukusebenza kokuvula nokuvala ngokushesha ngomsindo ophansi wokusebenza kanye nokuphinda kubuye kuncane. Iqinisekisa ukusebenza komshini ozinzile kanye nempilo yesevisi eyandisiwe.

Ukusetshenziswa Kwemandla Okuphansi

Indlela yokusebenza idinga amandla angaphandle angaphansi kuka-70W, okuyenza ifanele ukufakwa okukude nokuhlanganiswa okulula namasistimu wamandla ayisipele.

Izinhlelo zokusebenza

I-24kV outdoor vacuum breaker isetshenziswa kakhulu ku:

• Amanethiwekhi okusabalalisa amandla
• Iziteshi zikagesi
• Amabhizinisi ezimboni nezimayini
• Amaphrojekthi okufaka ugesi ezindaweni zasemakhaya
• Iziteshi zamandla e-solar photovoltaic
• Amasistimu okukhiqiza amandla omoya
• Amaphrojekthi e-smart grid automation
• Amasistimu okuhambisa nokusabalalisa kwezinsiza

Izici Zesakhiwo

1. Indawo Eyakhiwe Ngamandla Aphezulu
Indawo ebiyelwe ithatha insimbi engagqwali noma ukwakhiwa kwamapuleti ensimbi aphathwe ngokukhethekile. Ukwelashwa okuthuthukisiwe kwe-anti-corrosion kuthuthukisa kakhulu ukumelana nokuguga kwemvelo kanye nokuchayeka kwamakhemikhali.

2. I-Silicone Rubber Insulation Pole
I-APG insulated pole imbozwe ngerabha ye-silicone esebenza kahle kakhulu, ehlinzeka ngezici ezivelele zokwahlukanisa, amandla okulwa nokujiya, nokwethembeka kwesikhathi eside.

3. Iyunithi yesiphazamisi seVacuum
Isiphazamisi se-vacuum sisebenza njengengxenye yokushintsha eyinhloko futhi siqinisekisa ukuphazamiseka kwamanje okuthembekile okunezidingo zokulungisa ezincane.

4. Intelligent Control Compatibility
Izilawuli ezihlakaniphile ozikhethela zona zingahlanganiselwa ukuqapha okukude, ukutholwa kwamaphutha, ukushintsha okukude, nokuxhumana kwesistimu ye-SCADA.

Izinzuzo zabasebenzisi be-Utility kanye Nezimboni

• Ukuhlukaniswa kwephutha okusheshayo nokwethenjwa kwesistimu okuthuthukisiwe
• Ukwehliswa kwezindleko zokunakekela kanye nokusebenza
• Impilo ende yesevisi yemishini nekagesi
• Ukuphepha okuphezulu kokusebenza nokusebenza kokushintsha
• Ubuchwepheshe bokuphazamiseka kwe-vacuum obunobungani nemvelo
• Ifanele izindawo zangaphandle ezinokhahlo
• Ukufakwa kalula nokugcinwa
• Igridi ehlakaniphile ne-SCADA ehambisanayo

Izidingo Zokufaka Imvelo

Ukuze usebenze kahle, i-24kV i-circuit breaker kufanele ifakwe ngaphansi kwalezi zimo ezilandelayo:

• Izinga lokushisa le-ambient liphakathi kuka-30°C no-+40°C
• Ukuphakama okungadluli kumamitha ayi-1500
• Akukho ukudlidliza okukhulu noma ukushaqeka komshini
• Awekho amagesi abola kakhulu noma izindawo eziqhumayo
• Isisekelo esifanele ngokwezindinganiso zikagesi

Kungani Kufanele Sikhethe I-24kV Pole yethu Ekhwezwe I-Voltage High Voltage Circuit Breaker?

• Umkhiqizi ochwepheshe we-medium-voltage switchgear
• Ukulawulwa kwekhwalithi okuqinile nokuhlola kwefekthri
• Izinsizakalo zokwenza ngokwezifiso ze-OEM ne-ODM
• Ubuchwepheshe obuthembekile bokuphazamisa i-vacuum
• Intengo eqondile efekthri yokuncintisana
• Ukwesekwa kokulethwa okusheshayo komhlaba wonke
• Usizo lwezobuchwepheshe oluphelele
• Isevisi yesikhathi eside ngemva kokuthengisa

imibuzo ejwayelekile ukubuzwa

Imuphi umsebenzi omkhulu we-24kV Pole Mounted High Voltage Circuit Breaker?

Isetshenziselwa ukushintsha amaza okulayisha, ukuphazamisa ukugcwala okukhulu, nokuhlukanisa amaphutha esekethe emfushane ezinhlelweni zokusabalalisa amandla kagesi aphakathi nendawo.

Ingabe i-circuit breaker ingalawulwa ukude?

Yebo. Amayunithi okulawula okuhlakaniphile angazikhethela angasekela ukusebenza okukude, ukuqapha, ukuxilongwa kwamaphutha, nokuxhumana kwe-SCADA.

Ingabe lesi sihlukanisi sesekhethi sifanelekile kumaphrojekthi wamandla elanga nawomoya?

Yebo. Isetshenziswa kabanzi ezitshalweni zamandla kagesi avuselelekayo, okuhlanganisa amapulazi e-solar photovoltaic, amapulazi omoya, namaphrojekthi okugcina amandla.

Yiziphi izinzuzo zama-vacuum circuit breaker ngaphezu kwama-circuit breaker e-SF6?

Ama-circuit breaker ahambisana nemvelo, adinga ukulungiswa okuncane, anempilo ende yesevisi, futhi aqeda isidingo sokuphatha igesi ye-SF6.

Ingabe uyayisekela i-OEM kanye nokucaciswa okwenziwe ngezifiso?

Yebo. Singahlinzeka ngokulungiselelwa okwenziwe ngendlela oyifisayo, izindlela zokusebenza, izilawuli ezihlakaniphile, kanye nezinsizakalo zokufaka uphawu lomkhiqizo ngokuya ngezidingo zephrojekthi.
